62 Storage

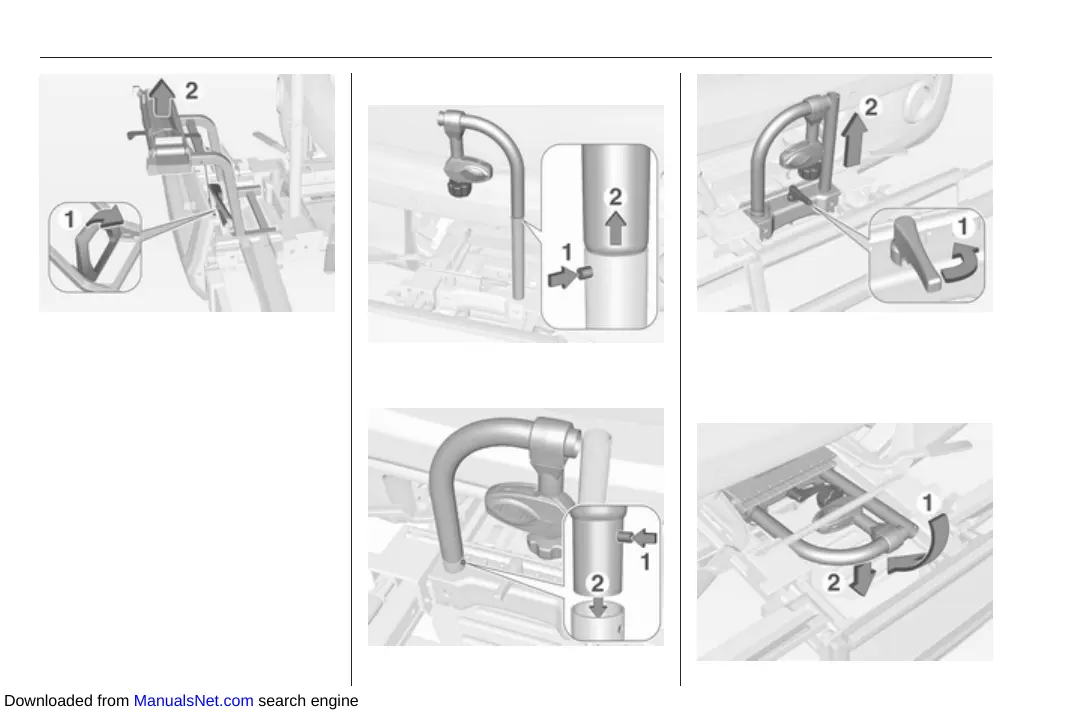

3. Turn the lever (1) forwards and
hold.
4. Lift the adapter (2) at the rear and
remove.
Disassembling the bicycle rack
Press button (1) and remove upper
part of rack (2).
Press button (1) and reinstall rack (2).
Arrange mounting bracket as shown
in the illustration.
Turn handle (1) sideways to
disengage and lift the rack (2).
