Vehicle care 255

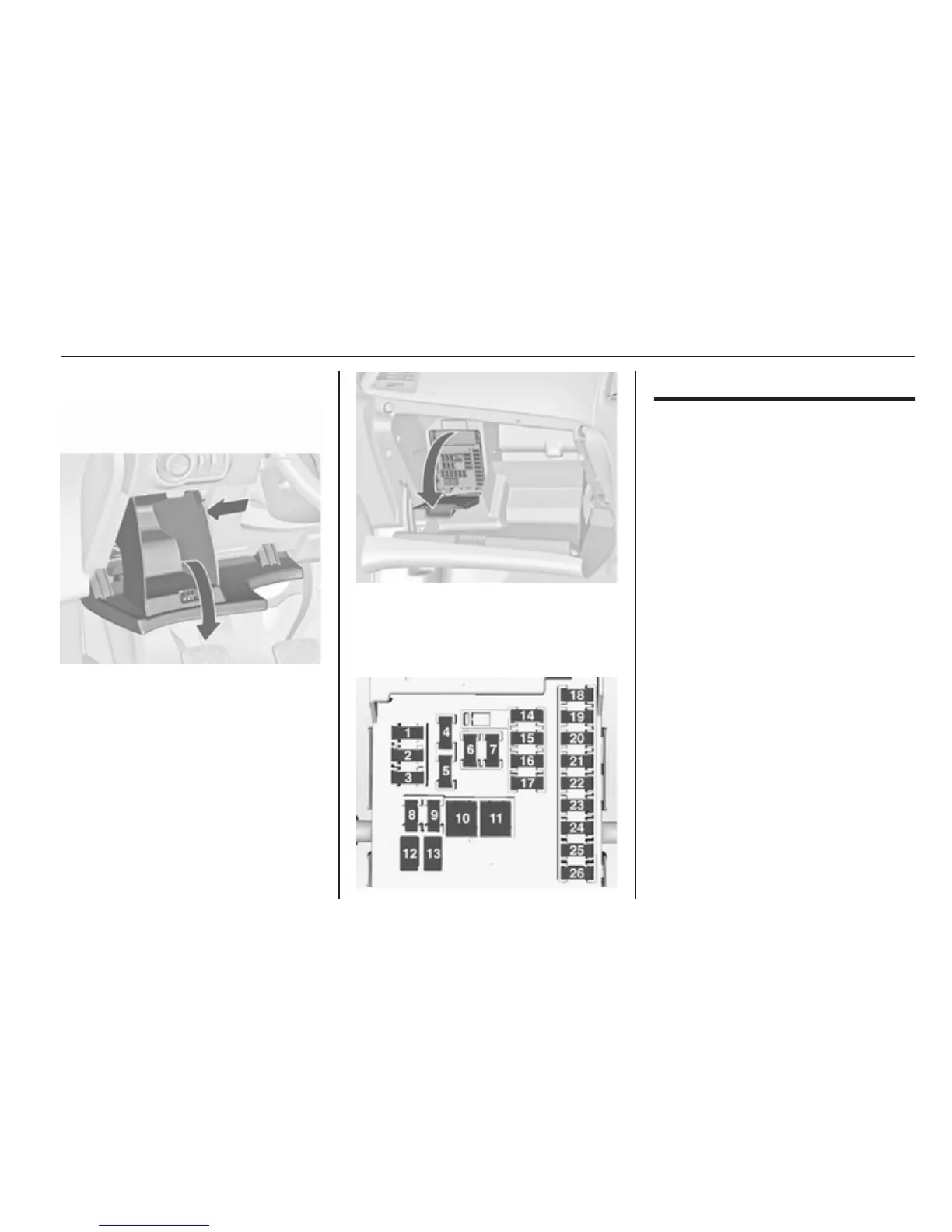

Instrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open the compartment and push it to
the left to unlock. Fold the
compartment down and remove it.
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, then
open the cover and fold it down.
No. Circuit
1 Displays
2 Exterior lights, body control
module
3 Exterior lights, body control
module
4 Infotainment system
5 Infotainment system, instru‐
ment
6 Power outlet, cigarette lighter
7 Power outlet
8 Left low beam, body control
module
9 Right low beam, body control
module, airbag module
10 Door locks, body control module
11 Interior fan
12 –
13 –
