Keys, doors and windows 41

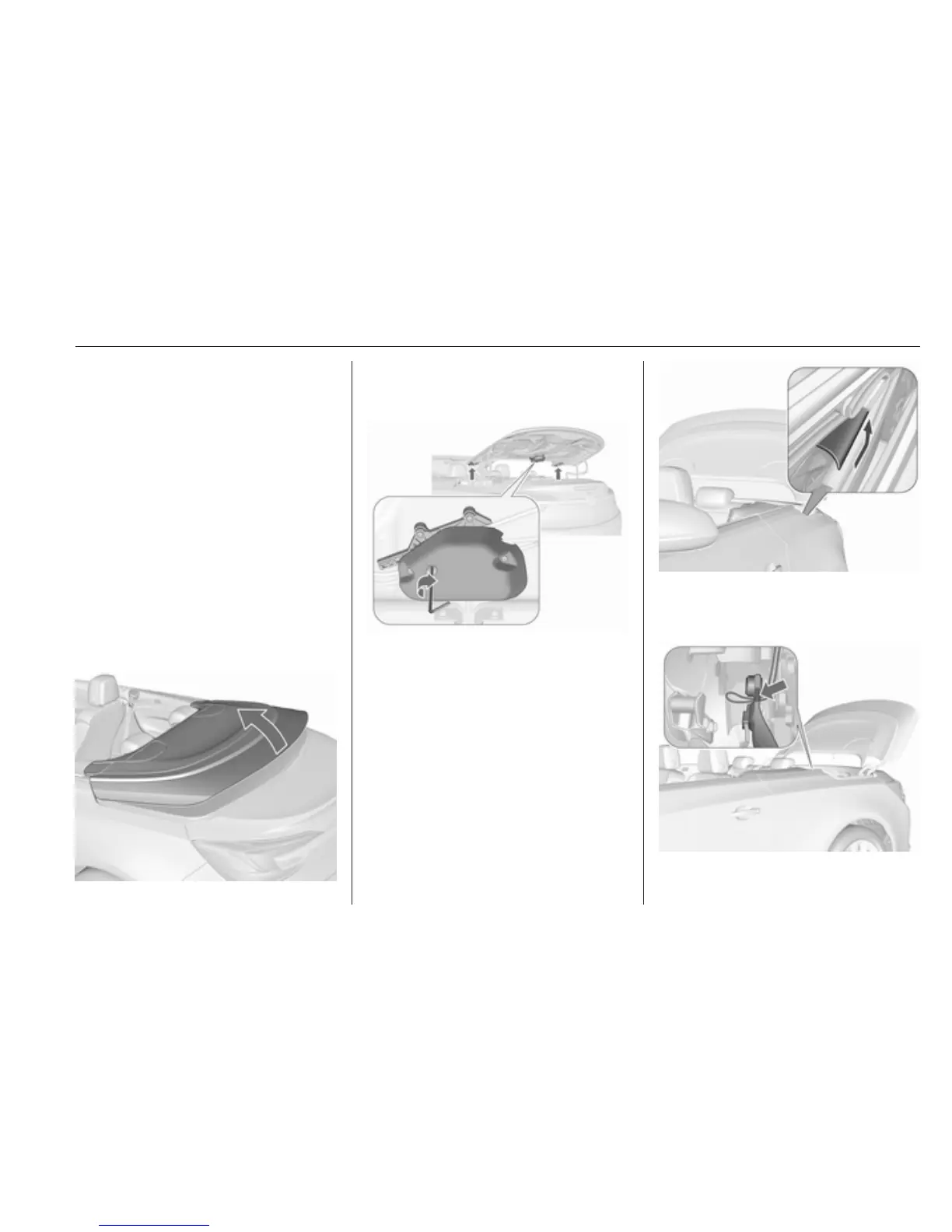

3. On the inside of the upper load
compartment edge is a lever for
releasing the soft top lid. Locate
the lever and unlatch by swivelling
the lever downwards.
Note
The boot lid cannot be opened from
next step on.
Remove the screwdriver from the
toolbox for further operation. It is
possible that the load compartment
cannot be opened until the vehicle is
at a workshop. Therefore remove
any required objects from the load
compartment.
4. Close boot lid.
5. Lift up soft top lid from both sides
simultaneously up to approx. the
half raised position.
6. Insert the 4 mm Allen key into the
marked position of the flap-drive
unit. Turn the Allen key clockwise
all the way to the stop, so that the
sideways flaps are swivelled in.
7. Open the soft top lid to its end
position.
8. Remove plastic covers on both
sides by pushing and sliding
backwards, see illustration.
9. At the hinges on each side there
are visible marks.
