DOOR THREE - INSTALLATION & USER GUIDE
DOOR SERIES

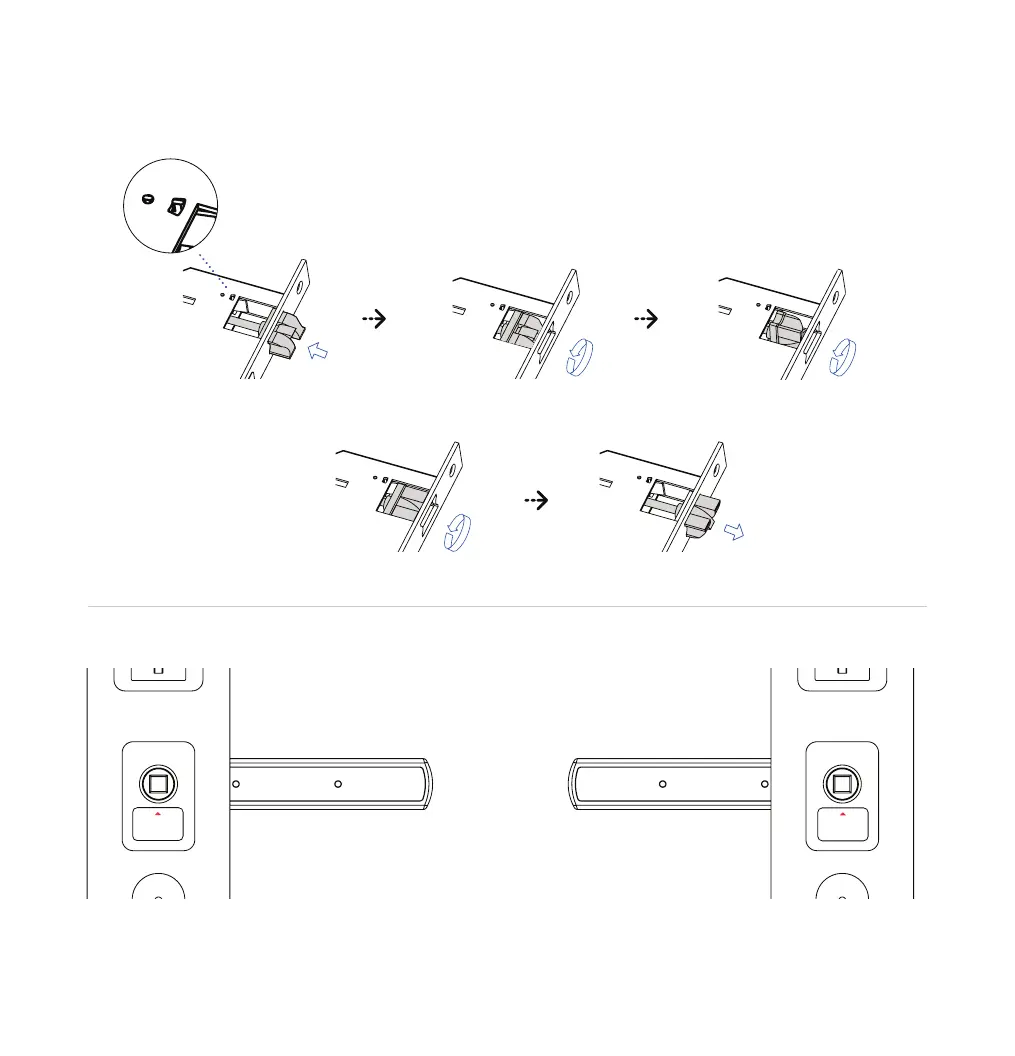

Latch - bolt direction
Hold up the locking tab. Push and rotate the latch inside
the mortise and release.
For left-handed doors, rotate
the spindle adaptor and align
‘L’ to the arrow in the label.
For right-handed doors, rotate
the spindle adaptor and align
the ‘R’ to the arrow in the label.
Note:
The right to R
Left open to L
R
L
R
L
Note:
The right to R
Left open to L
