* Illustrations made for left-handed doors
DOOR SERIES
Installation

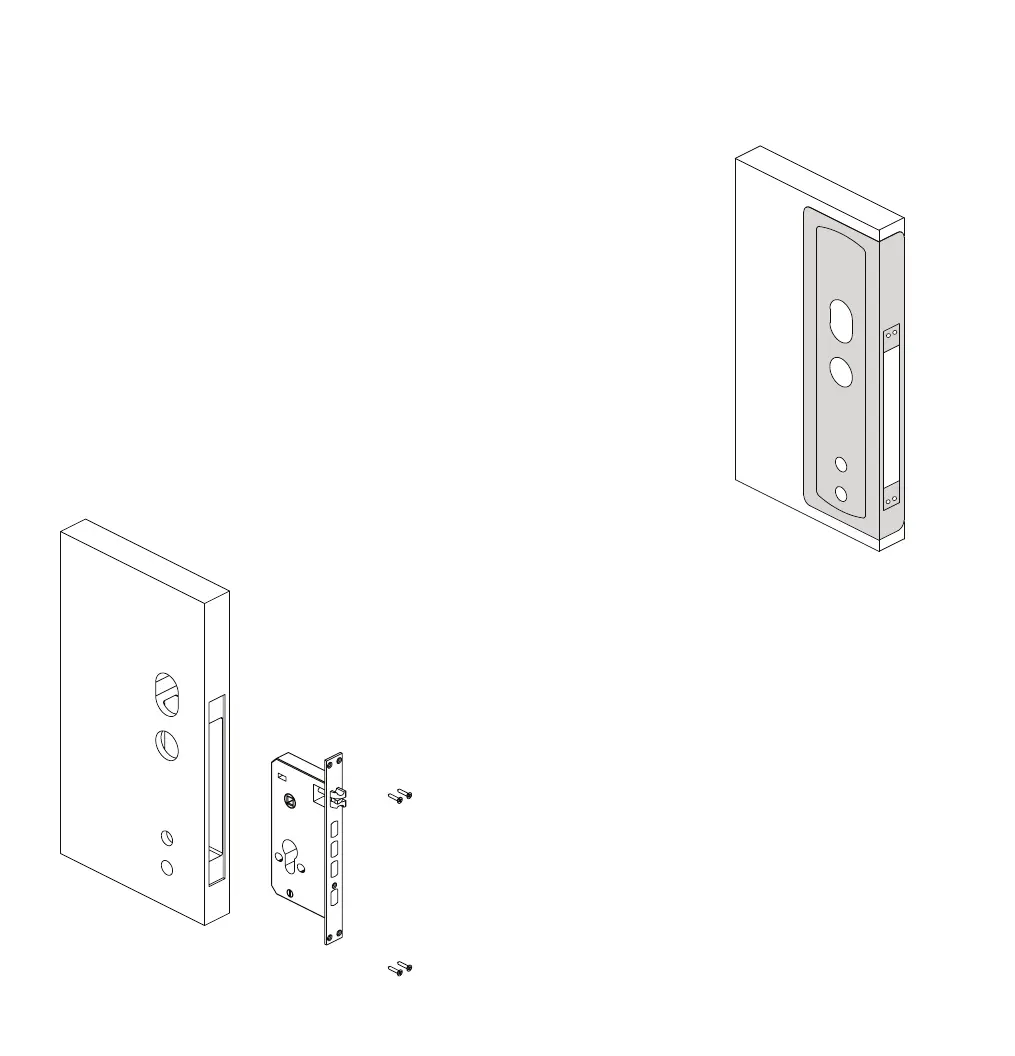

Position the ‘drilling template’
(provided) on the door and drill holes
as indicated.
Install the latch cartridge as shown
and secure with four screws.
NOTE : Remember to place the ‘strike
plate’ and ‘dust box’ in the door frame
cartridge.
You’ll need : A drilling machine
