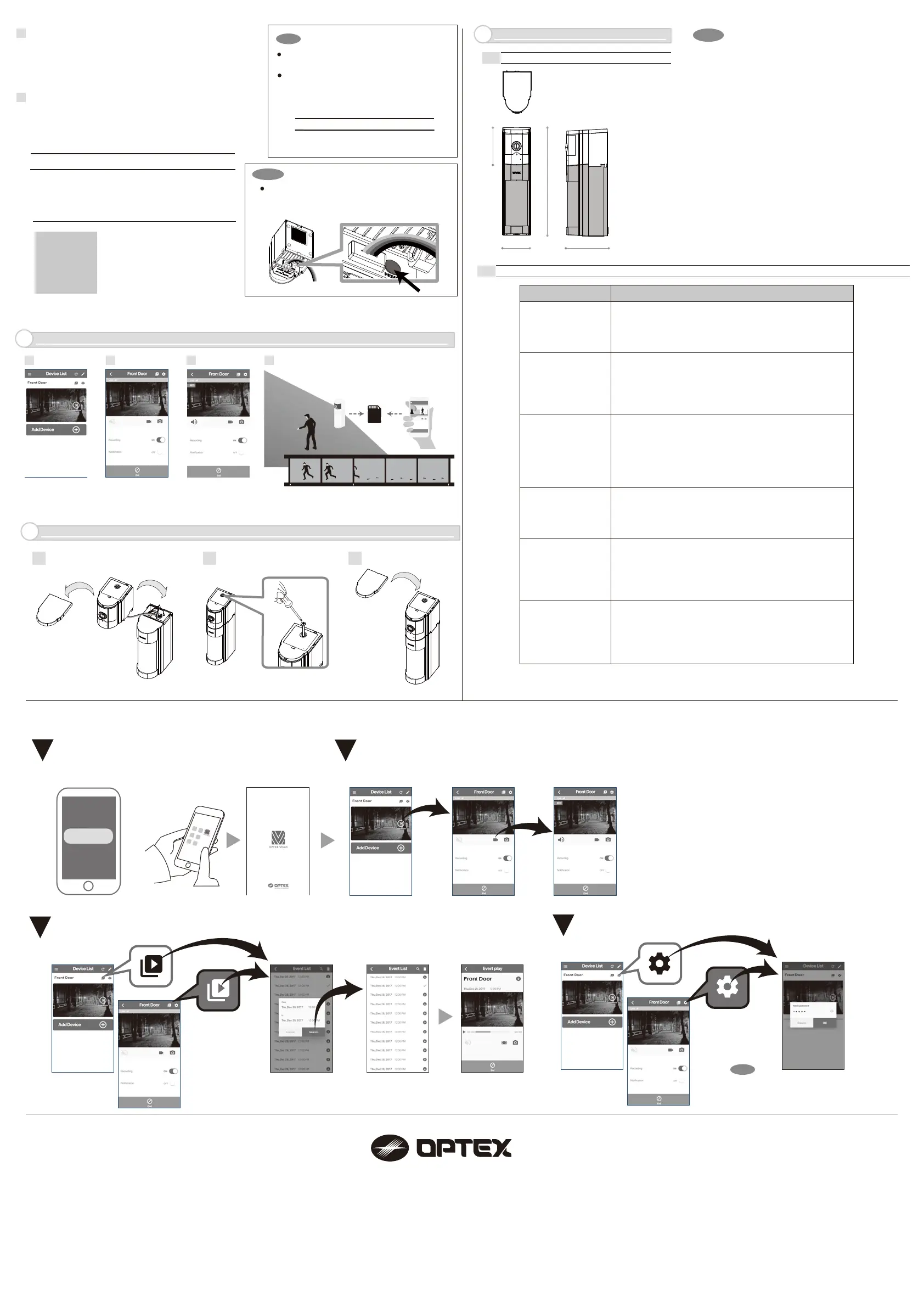

When the “Setup Wizard” requires a Device ID input, use one of the following:
[1] Remove the CMOD cap and find the QR code which is located
on the top of VXI-CMOD.
[2] Read the QR code label included in the package of the VXI-CMOD.
[3] Direct input to the OPTEX Vision.
3
Follow the “Setup Wizard” to join your Wi-Fi network.
4
Wi-Fi network
[1] SSID;
[2] Password;
[3] Place the
QR code
label here
- Record the Wi-Fi network SSID and password.
Note them on [1] [2] below.
For iOS only
Wi-Fi direct
SSID; HD- xxxxxx *
Password;
12345678
OPERATION CHECK
5
Live ViewDevice List Recording
1 2 3
- Place the Device ID QR code label on [3].
It is included in the package of VXI-CMOD.
[3] Device ID;
4
Front Door
Live Direct,N=1,Good,127.3KB/sVGA
SD
Sensor trigger recording
- If the "Setup Wizard" procedure fails for any reason (e.g input wrong Wi-Fi
password), reset the unit by holding the "RESET" button for 10 seconds.
- Stored event data are not deleted by the reset operation.
1
Remove the CMOD cap and mount the
VXI-CMOD on the camera mount.
Replace the CMOD cap.
3
Fix the VXI-CMOD with the lock
screw.
2
ASSEMBLING
6
SPECIFICATIONS
7
7-1 DIMENSIONS
Unit: mm
97
272
71
106
7-2 SPECIFICATIONS
* Performance may be impacted when connecting to multiple smartphone simultaneously.
- Web service is subject to termination without prior notice.
- Specifications and designs are subject to change without prior notice.
Wireless connectivity
Data encryption
Security
Simultaneous viewers
Image sensor
Image resolution
Viewing angle
Minimum illumination
Night vision
Image compression
Image resolution
Frame rate
Recording period
Memory Storage
Power supply
Power consumption
Wake up time
Recording trigger
LED indicator
Microphone
IR Mode selector
Internal/ External
antenna selector
Location
Operating temperature
Operating humidity
IP rate
Weight
IEEE 802.11 b/g/n
AES 128-bit data encryption via proprietary P2P connection protocol
WEP/ WPA/ WPA2 (TKIP, 128-bit AES)
Max. 3 Concurrent viewers *
Full HD
1080P/720P/VGA (Selectable from App)
H: 180° V: 100°
0 lux. (with IR illumination)
IR LED with IR-Cut switcher
H.264 High profile
Full HD
15 FPS
30 sec. (inc. 2 s pre-record)
microSD card (32 GB max.)
Not included/ Only FAT 32 format compatible/ Formatable from OPTEX Vision App
9.5 to 24 V DC
IR low mode: 400 mA max./IR high mode: 1.0 A max. at 12 V DC
2 min.
Alarm, Tamper, Trouble (N.O./N.C.)
Power LED
1 input
high/low
Internal/ External selectable
External antenna [CMOD-ANT] is sold separately.
Outdoor/Indoor
-10
℃
to +50
℃
90% max. (Non condensed)
IP 55
280 g
Model VXI-CMOD
NOTE
- 2 -
<< How to use the OPTEX Vision App >>
1
Responding to an alarm
Receive SMS from a control
panel or App notification
Start the OPTEX Vision application.
2
Check live view
3
Search stored events
4
Settings
OPTEX INC./AMERICAS HQ (U.S.)
URL: www.optexamerica.com
OPTEX (EUROPE) LTD./EMEA HQ (U.K.)
URL: www.optex-europe.com
OPTEX TECHNOLOGIES B.V.
(The Netherlands)
URL: www.optex.eu
OPTEX SECURITY SAS (France)
URL: www.optex-europe.com/fr
OPTEX SECURITY Sp.z o.o. (Poland)
URL: www.optex.com.pl
OPTEX PINNACLE INDIA,
PVT., LTD. (India)
URL: www.optexpinnacle.com
OPTEX KOREA CO.,LTD. (Korea)
URL: www.optexkorea.com
OPTEX (DONGGUAN) CO.,LTD.
SHANGHAI OFFICE (China)
URL: www.optexchina.com
OPTEX (Thailand) CO., LTD. (Thailand)
URL: www.optex.co.th
Copyr
ight (C) 2018 OPTEX CO.,LTD.
OPTEX CO., LTD. (JAPAN)
URL: www.optex.net
■ EU contact information
Manufacturer:
OPTEX CO., LTD.
5-8-12 Ogoto, Otsu,
Shiga, 520-0101 JAPAN
Authorised representative in Europe:
OPTEX (EUROPE) LTD./EMEA HEADQUARTERS
Unit 13, Cordwallis Park, Clivemont Road,
Maidenhead Berkshire, SL6 7BU U.K.
NOTE
The default password is 123456, which will need to be appropriately
changed upon setup.
The following information is required to change the
Wi-Fi network in the “Setup Wizard”
* “xxxxxx” contains ramdom numbers that are common to
the part of the Device ID.
Hereby, OPTEX declares that the radio equipment type VXI-CMOD is in compliance with
RED 2014/53/EU. The full text of the EU DoC is available at the following internet address;
EU DoC; www.optex.net
Optex VXI-CMOD shall be supplied by a SELV and LPS (or UL1310 class 2) power supply
or connected to a dedicated control unit with SELV and LPS output.
NOTE
Default Admin Password is
123456
.
It must be changed after the first access to “Settings”.
Check the VXI-CMOD is
displayed on the Device
List.
Confirm the Live View
through the VXI-CMOD.
Try to record the Live View
onto the microSD card.
Test the total operation of the VXI-ST/-AM/-DAM and VXI-CMOD.
Confirm that the event is recorded by the trigger of the VXI-ST/-AM/-DAM.
Alarm !
Reset to the factory default
IMPORTANT
For installers
After the installation is complete, check the full operation of the
product. Explain to all users the operation of the product and
make sure that it is fully understood. Provide all users with a
copy of this “INSTALLATION & OPERATIONAL MANUAL”
for future reference.
For users
Upon completion ensure you are provided with comprehensive
training on this product. Keep a copy of this “INSTALLATION &
OPERATION MANUAL” for future reference.
Users are responsible to position the camera such a way
that it does not look into someone else s property.
‘
