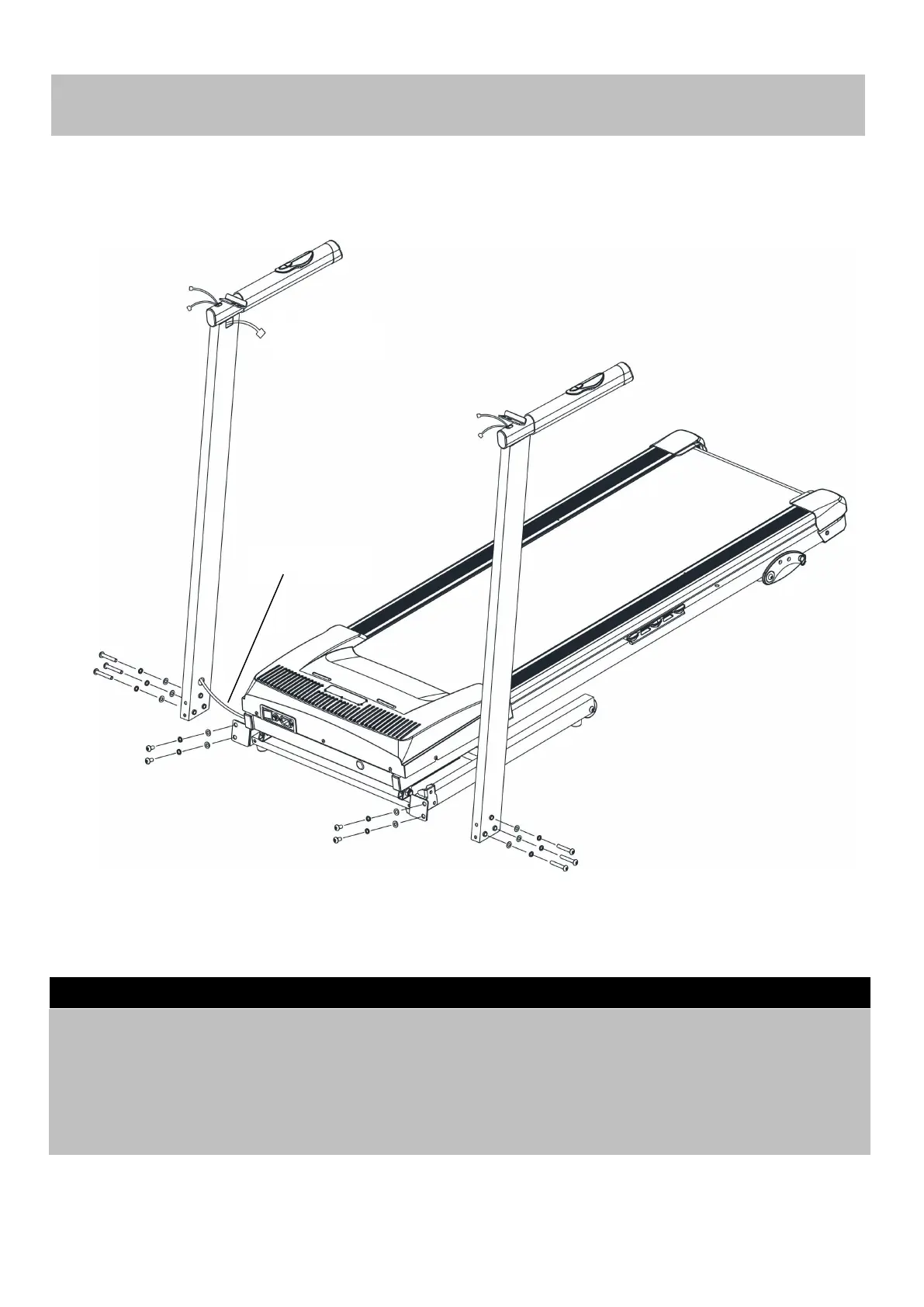

a. Thread the Main wire from the bottom of the Console Mast (4) to the upper opening.
b. Fix each Console Mast (3&4) to the Base Frame (1) using 6 x 50mm Allen Bolts (66)
，
4 x 15mm Allen
Bolts (68)，10 x 8mm Spring Washers (87) and 10 x 8mm Washers (84).
Note: Please don't fastened the bolts above.There should be a space of 2-3 mm left.
Assembly Instructions
Step 2
4
3
66
87
84
Main wire
Main wire
66
87
84
1
84
87
68
84
87
68
