Optima Lighting Matrix DMX PRO+ - Product Operation Modes; Power Supply and Voltage Settings

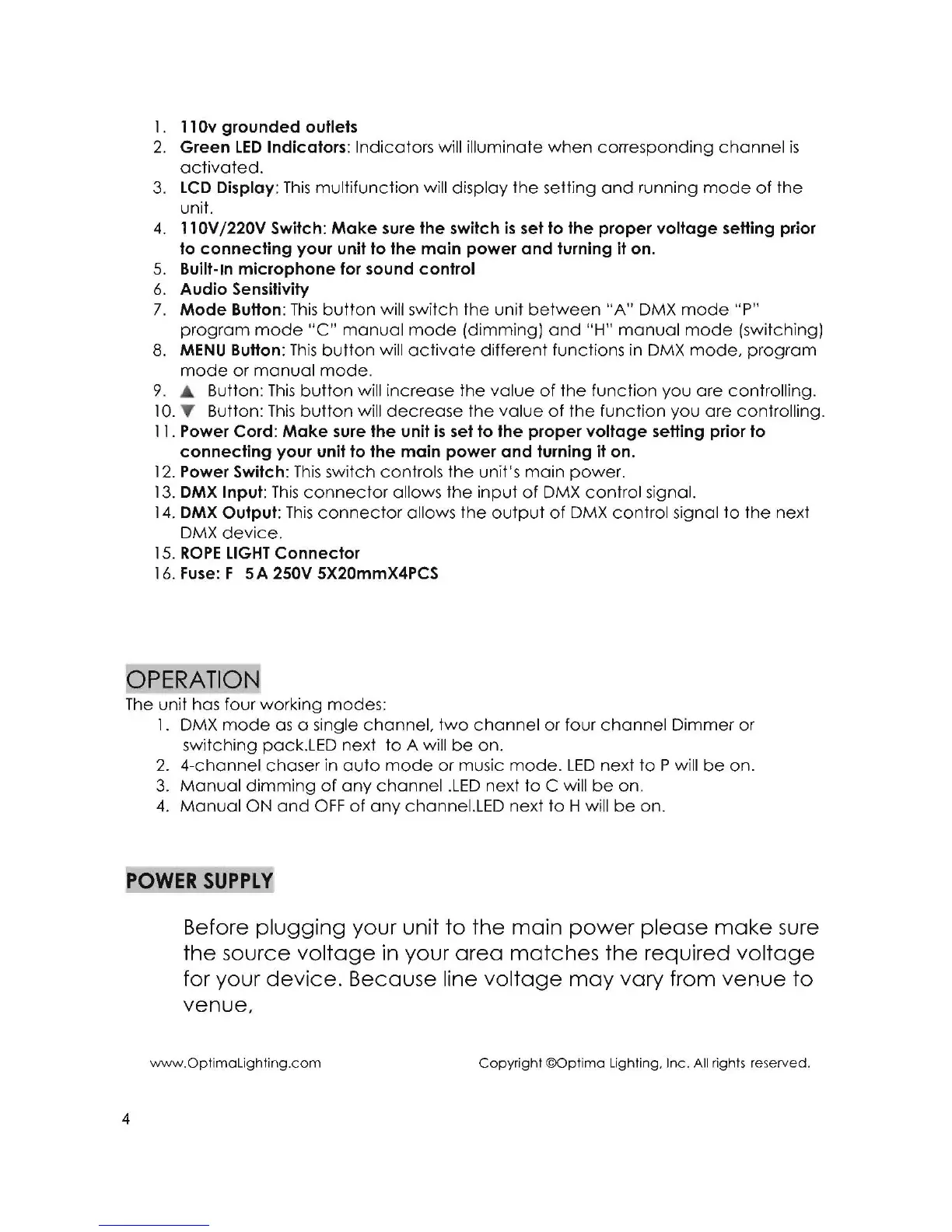

1. 110v grounded outlets
2.
Green LED Indicators: Indicators will illuminate when corresponding channel is
activated.
3. LCD Display: This multifunction will display the setting and running mode of the
unit.
4. 11OV/220V Switch:
Make sure the switch is set to the proper voltage setting prior
to
connecting your unit to the main power and turning it on.
S. Built-In
microphone for sound control
6. Audio Sensitivity
7.
Mode Button: This button will switch the unit between "A" DMX mode "P"
program mode "C" manual mode (dimming) and "H" manual mode (switching)
8. MENU Button:
This button will activate different functions in DMX mode, program
mode or manual mode.
9. ... Button: This button will increase the value of the function you are controlling.
10.
T Button: This button will decrease the value of the function you are controlling.
11.Power Cord:
Make sure the unit is set to the proper voltage setting prior to
connecting your unit to the main power and turning it on.
12.Power Switch:
This switch controls the unit's main power.
13.DMX Input: This connector allows the input of DMX control signal.
14.DMX Output:
This connector allows the output of DMX control signal to the next
DMX
device.
1S. ROPE LIGHT Connector
16.Fuse: F 5A 250V 5X20mmX4PCS
OPERATION
The unit has four working modes:
1. DMX mode as a single channel. two channel or four channel Dimmer or
switching pack.LED next to A will
be on.
2.
4-channel chaser in auto mode or music mode. LED next to P will be on.
3.
Manual dimming of any channel .LED next to C will be on.
4.
Manual ON and OFFof any channel.LED next to H will be on.
POWER SUPPLY
Before plugging your unit to the main power please make sure
the source voltage in your area matches the required voltage
for your device. Because line voltage may vary from venue to
venue,
4
