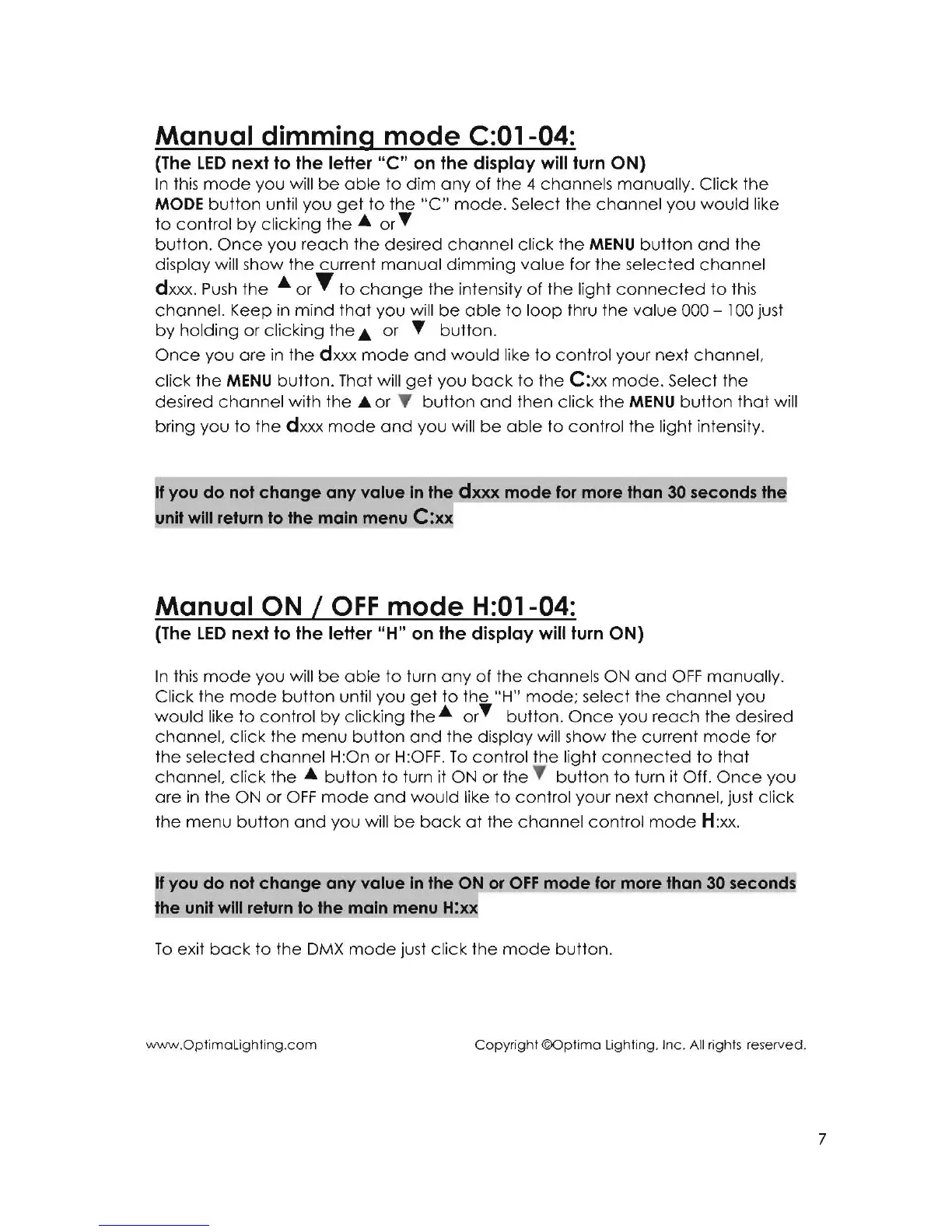

Manual
dimming
mode
C:Ol-04:
(The
LED
next
to the letter "C" on
the
display
will turn
ON)
In this
mode
you will
be
able
to dim
any
of the 4 channels manually. Click
the
MODE
button
until you
get
to the
"C"
mode.
Select the
channel
you
would
like
to
control
by clicking
the"
or T
button.
Once
you
reach
the
desired
channel
click
the
MENU
button
and
the
display will show
the
current
manual
dimming
value
for
the
selected
channel
dxxx.
Push
the
..
or T to
change
the intensity of the light
connected
to this
channel.
Keep in
mind
that
you
will be
able
to
loop
thru the
value
000 - 100just
by
holding
or clicking
the..
or T
button.
Once
you
are
in
the
dxxx
mode
and
would
like to
control
your
next
channel,
click
the
MENU
button.
That will
get
you
back
to the
C:xx
mode.
Select the
desired
channel
with
the"
or T
button
and
then
click the
MENU
button
that
will
bring you to the
dxxx
mode
and
you will
be
able
to
control
the
light intensity.
If you do not
change
any value in the
dxxx
mode
for more than 30 seconds the
unitwill return to the main menu
C:xx
Manual
ON /
OFF
mode
H:Ol-04:
(The
LED
next
to the letter "H" on the
display
will turn
ON)
In this
mode
you will
be
able
to turn
any
of
the
channels ON
and
OFFmanually.
Click the
mode
button
until you
get
to
the
"H"
mode:
select the
channel
you
would
like to
control
by clicking
the"
or
T
button.
Once
you
reach
the
desired
channel.
click the
menu
button
and
the
display will show the current
mode
for
the
selected
channel
H:On or
H:OFF.
To
control
the
light
connected
to
that
channel.
click
the"
button
to turn it ON or the T
button
to turn it Off.
Once
you
are
in the ON or OFF
mode
and
would
like to
control
your
next
channel.
just click
the
menu
button
and
you will
be
back
at
the
channel
control
mode
H:xx.
If you do not change any value In the ON or OFF
mode
for more than 30 seconds
the unit will return to the main menu
H:xx
To exit
back
to the DMX
mode
just click the
mode
button.
