- 13 -
- Unlock pivoting support block (ill. 9) and swing it down
- Raise lift arm and lower center spade (“down”) completely.
- Now the tree spade can be placed on base frame in transport position:
The main lift arm A is lowered until the upper edge of the lift arm is level with the RH
side of mark D on base frame B. An arrow indicates the RH side of the mark. (ill. 5,
5.1)
control panel, joystick 20, main lift arm ▼ "down"
- This position is for road transport only. Do not move with collapsed digging head off
road!

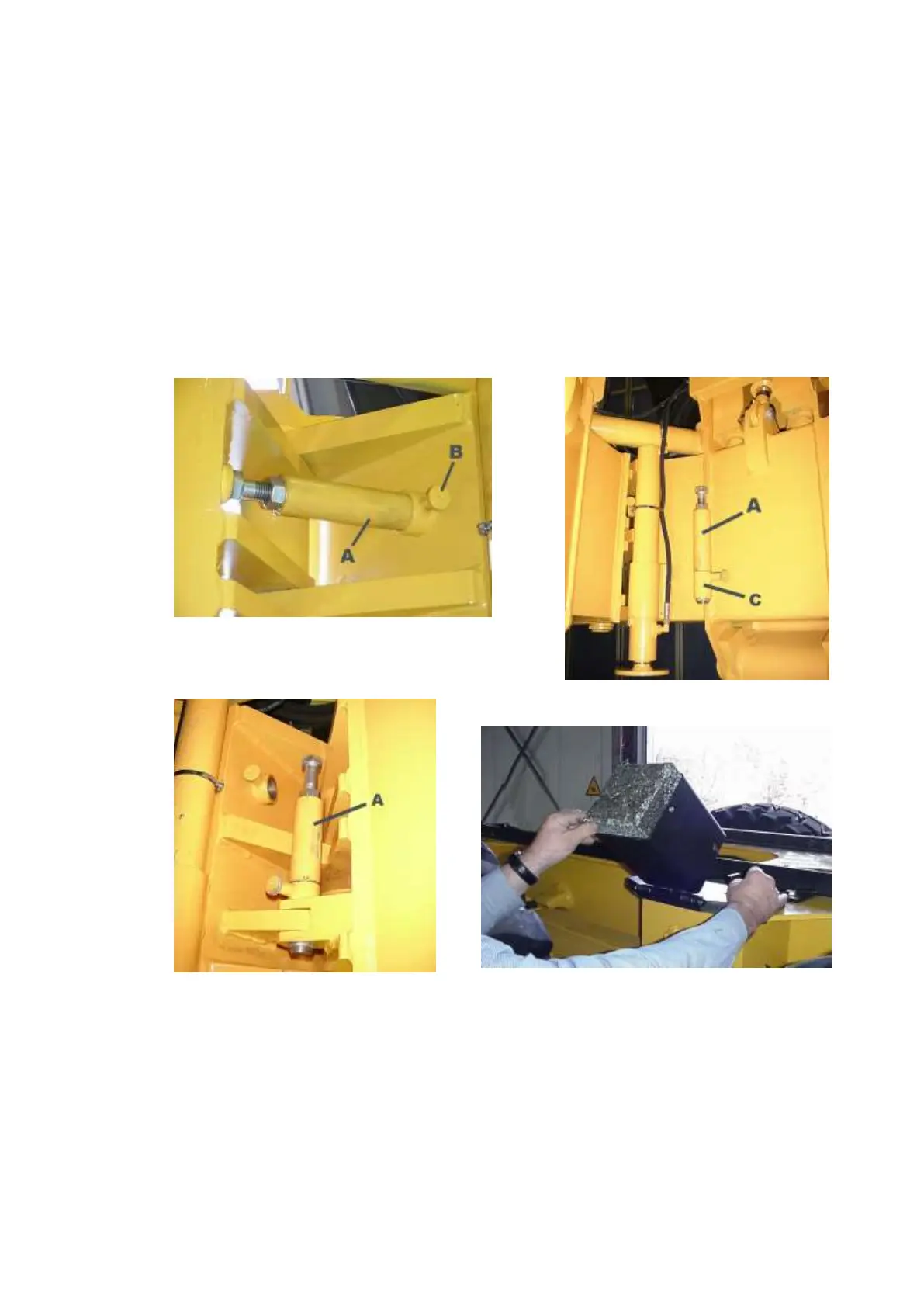

Illustration 6
Illustration 7
Illustration 8 Illustration 9
