Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 10 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Drag the table (X-axis) off-centre.
CAUTION!
Risk of crushing when dragging the
table. The table is very heavy!
If required, support the table from
the bottom when disassembling and
secure it against falling down.

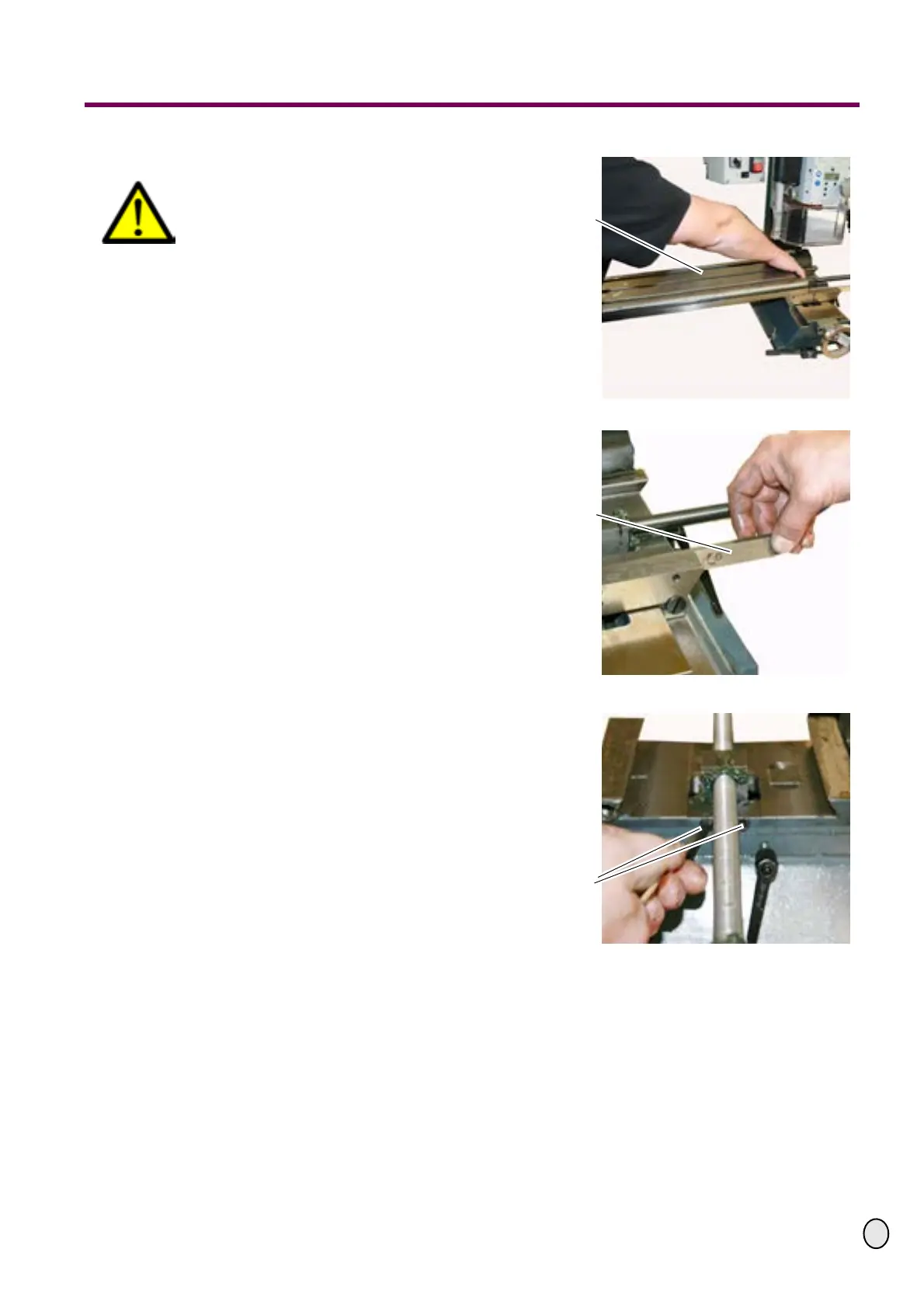

Fig.1-17: Drag table (X-axis)
£ Remove locking screw.
£ Drag V-ledge out of the cross table.
Fig.1-18: Drag V-ledge
£ Loosen the two hexagon socket
screws at the cross table.
Fig.1-19: Disassemble hexagon socket
screws
Table (X-axis)
V-ledge
Hexagon socket
screws
