Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 14 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Separate the spindle nut of the Y-
axis from the cross table.
£ Drag the cross table out of the gui-
deways.

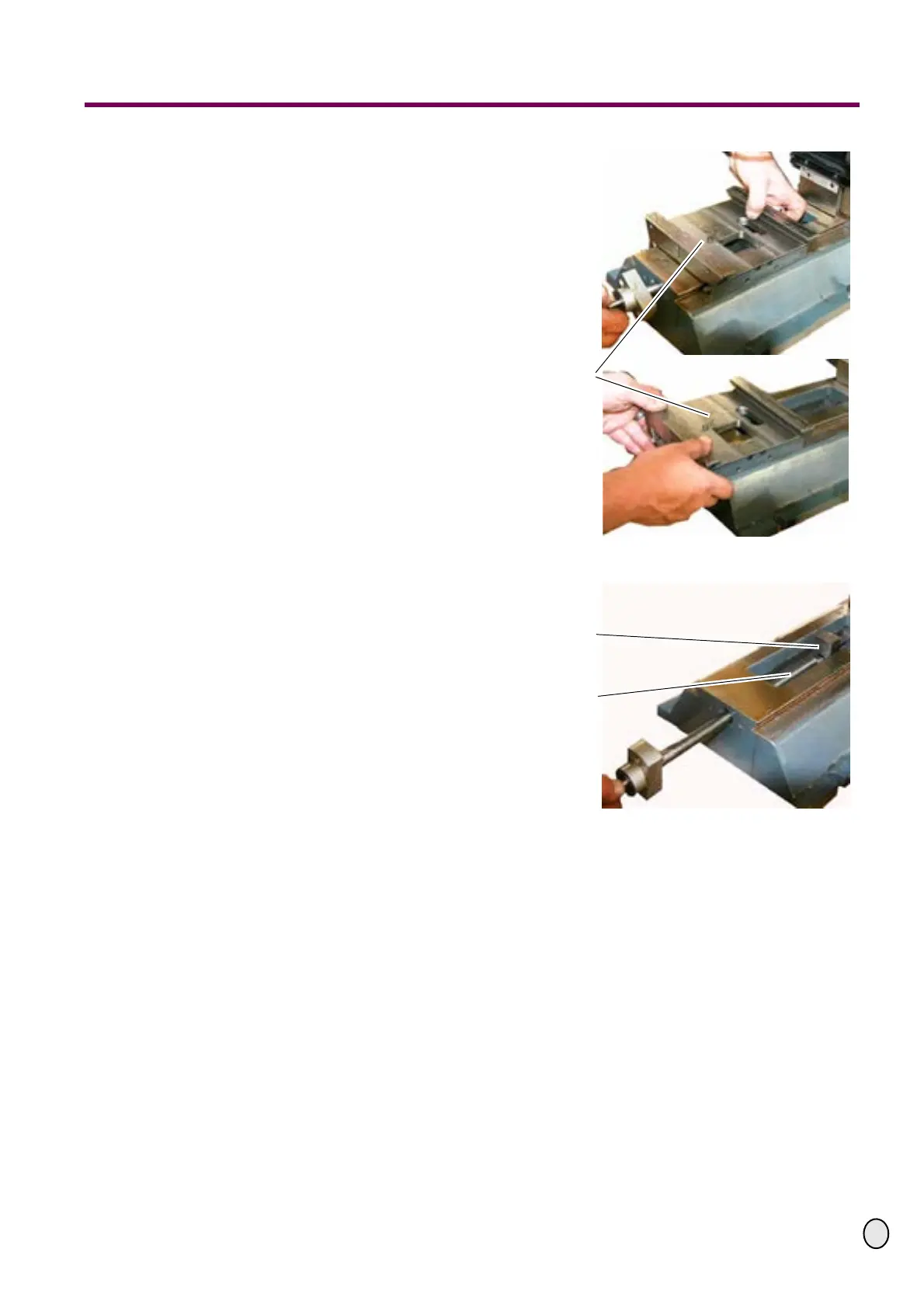

Fig.1-27: Drag out the cross table
£ Turn the spindle out of the spindle
nut and remove it.
Fig.1-28: Disassembly spindle
Cross table
Spindle nut
Spindle
