Assembly and maintenance instruction recirculating ball screw
5. Dezember 2007 Page 13Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB

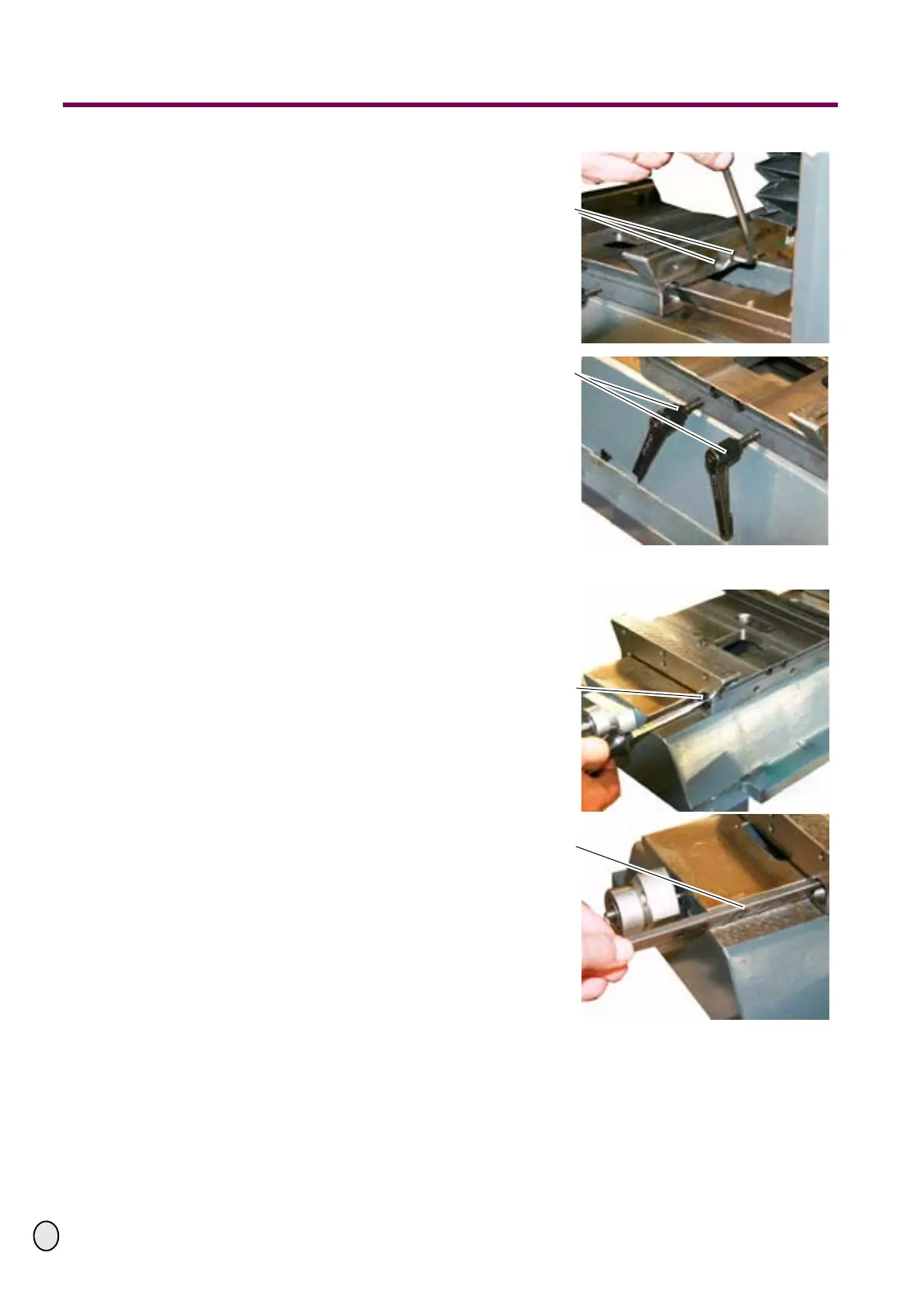

£ Loosen hexagon socket screws.
£ Remove the two clamping levers on
the cross table.
Fig.1-25: Loosen nut
£ Remove locking screw.
£ Drag the V-ledge out of the cross
table.
Fig.1-26: Remove V-ledge
Hexagon socket
screws
Clamping lever
Locking screw
V-ledge
