Assembly and maintenance instruction recirculating ball screw
5. Dezember 2007 Page 17Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Remove the hexagon socket screws
as well as the protective covering of
the Z-axis.

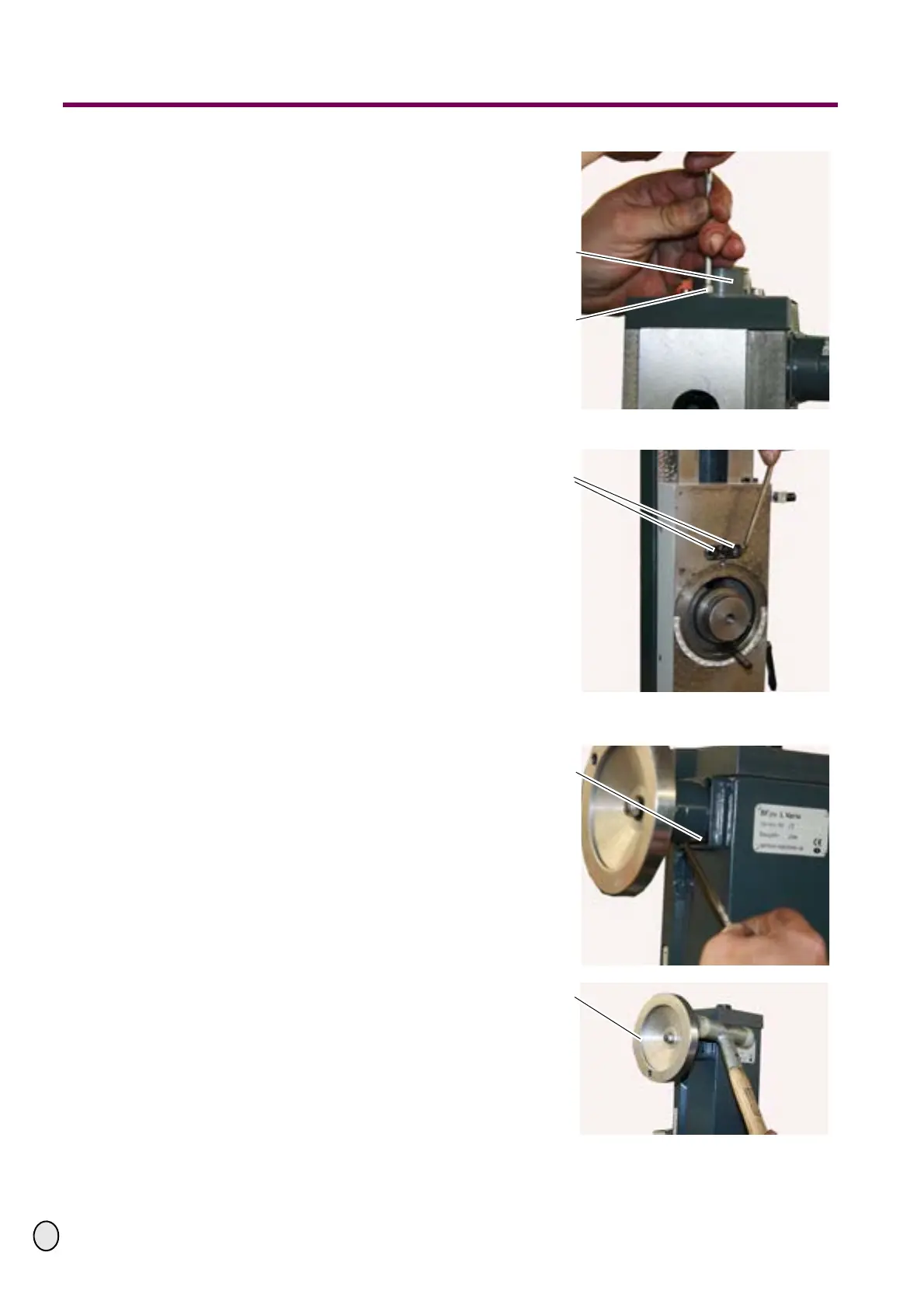

Fig.1-34: Remove protective covering
£ Loosen and disassemble the
hexagon socket screws.
Fig.1-35: Disassemble hexagon socket
screws
£ Loosen and disassemble the hexa-
gon socket screws on the Z-axis.
£ Remove the handwheel with the pil-
low block, if necessary strike with a
plastic tip hammer.
Fig.1-36: Disassemble handwheel and pillow
block
Protective covering
Hexagon socket
screws
Hexagon socket
screws
Hexagon socket
screws
Handwheel
