Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 18 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Loosen and disassemble the hexa-
gon socket screws on the pillow
block of the Z-axis.
£ For CNC conversion, disassemble
the step motor as well as the belt
pulleys, the housing and the belt
(CNC conversion instructions) on
the Z-axis.

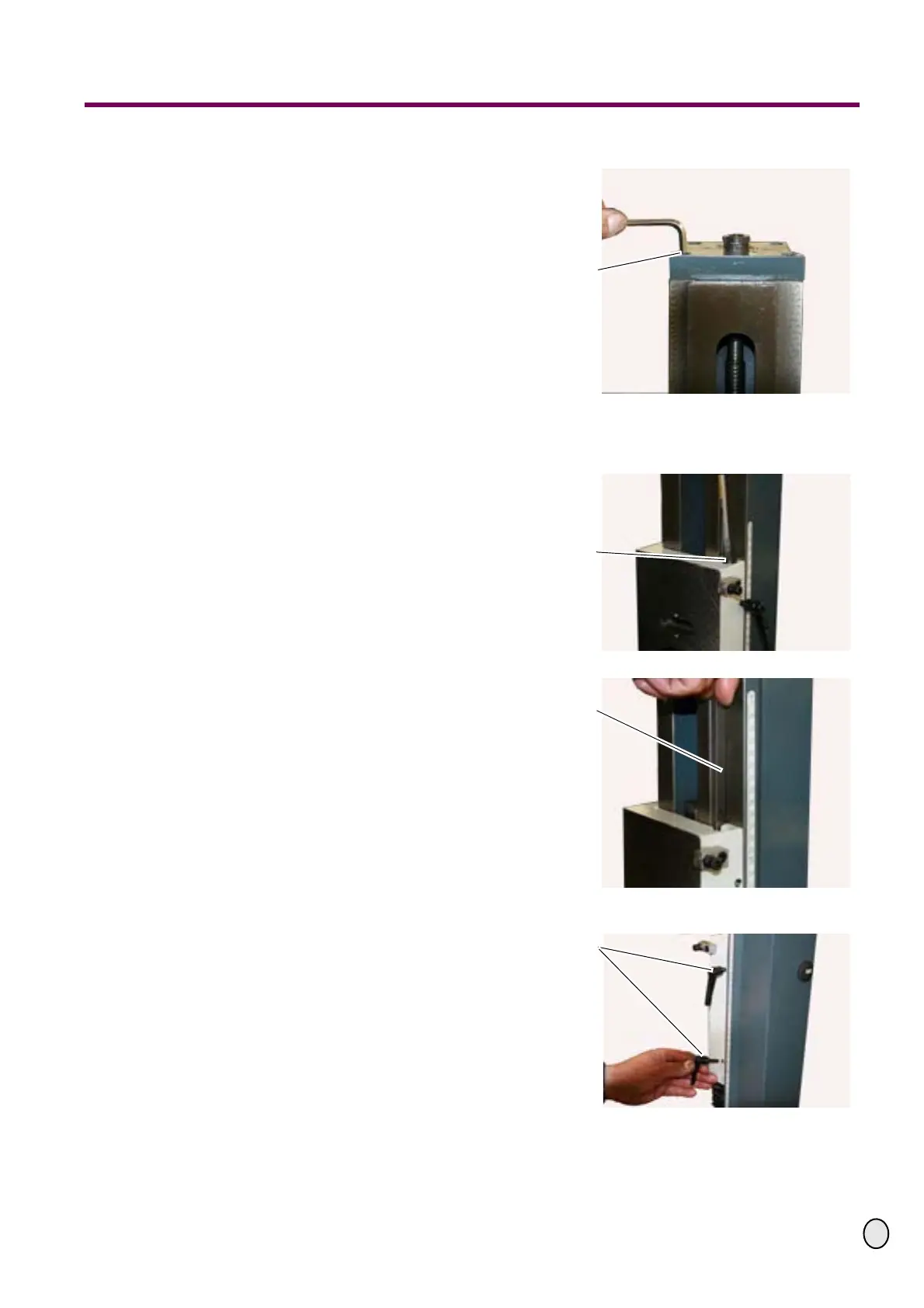

Fig.1-37: Disassemble hexagon socket
screws
£ Remove clamping screw.
£ Draw the V-ledge out of the slide.
Fig.1-38: Remove V-ledge
£ Remove the two clamping levers at
the slide.
Fig.1-39: Remove clamping lever
Hexagon socket
screw
Clamping screw
V-ledge
Clamping lever
