Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 20 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
1.6.4 Cleaning the guideways
£ Clean all guideways.

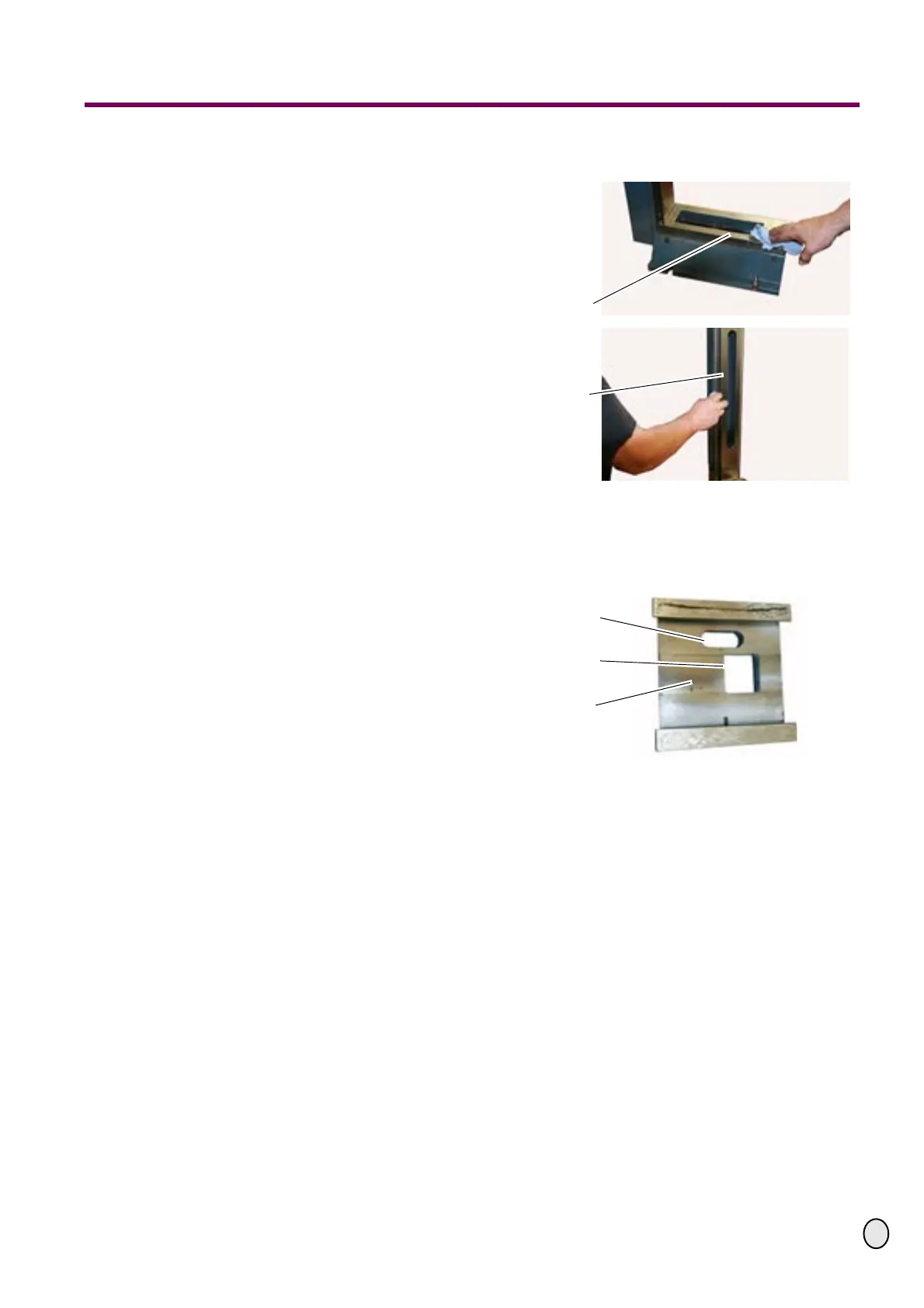

Fig.1-44: Cleaning guideways
1.6.5 Assembly Y-axis
Visual inspection of the cross table
£ Check if the pocket or the long hole
are located in the cross table. If it is
not available, you have to mill the
pocket or the long hole with the help
of the production drawing (part 1).
„Production drawings“ on page 40
Fig.1-45: Visual inspection cross table
Guideway
Y-axis
Guideway
Z-axis
Long hole
Pocket
Cross table
