Assembly and maintenance instruction recirculating ball screw
5. Dezember 2007 Page 29Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Start assembling the pillow blocks at
the right side of the milling-drilling
table.
£ Apply a sealing agent.
£ Assemble the pillow block of the X-
axis.
£ Make sure that the cylinder pins are
located in the pillow block.
£ Fix the pillow block using the
hexagon socket screws.
£ Slide the spacer into the pillow
block.
£ Slide the attached aluminum bus-
hings on the spindle of the X-axis. If
there are no bushings included in
the scope of delivery, you should
produce them yourself with the help
of the production drawing (part 3).
„Production drawings“ on page 40
£ Assemble a locking nut to the
spindle of the X-axis.

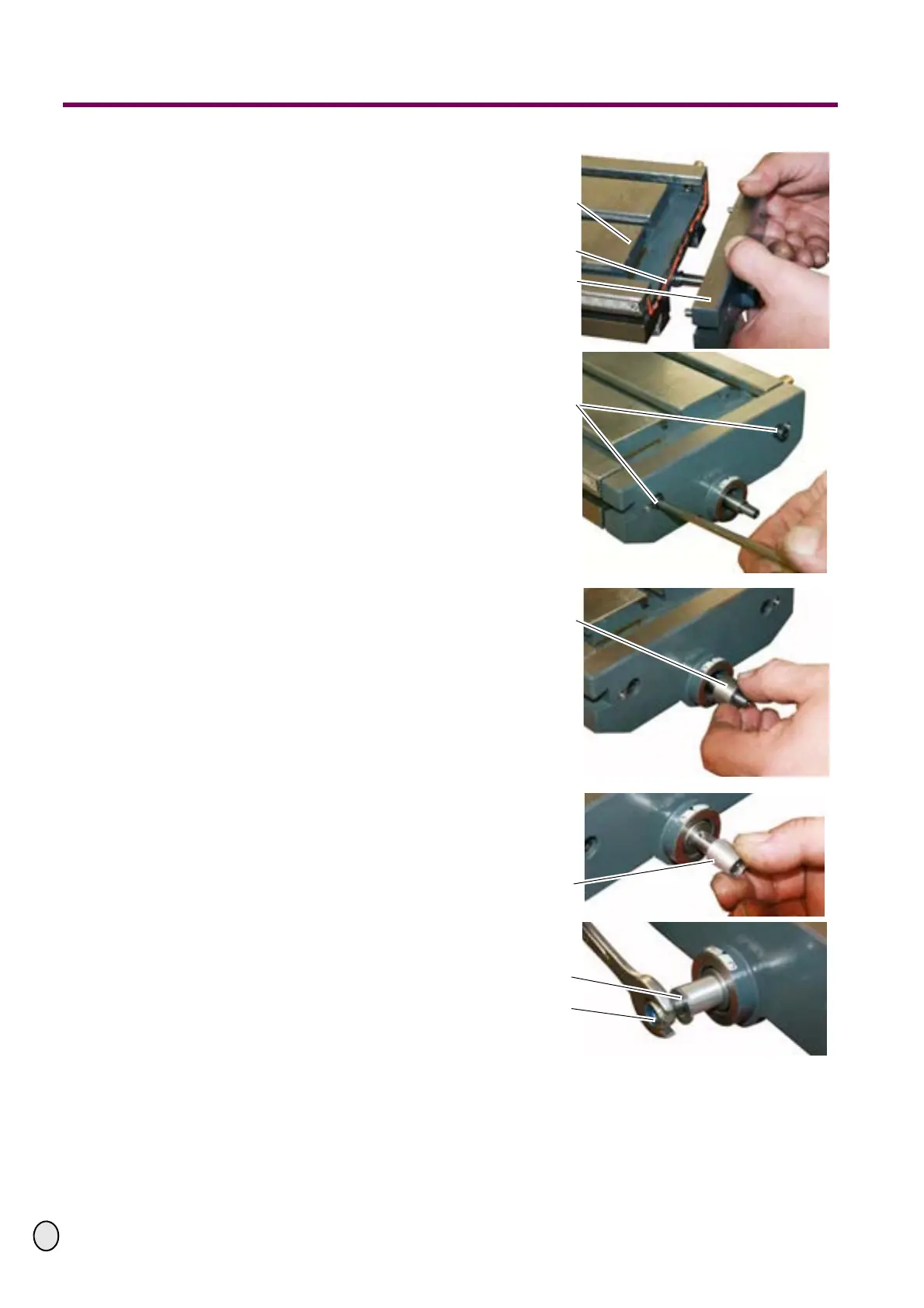

Fig.1-55: Assembly X-axis
Table X-axis
Sealing agent
Pillow block
Hexagon socket
screw
Spacer
Aluminum bushing
Disk
Locking nut
