Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 30 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB
£ Then assemble the left pillow block
to the X-axis of the drilling-milling
machine.
£ Fix the pillow block using the
hexagon socket screws.
£ Slide the spacer on the X-axis.
£ Reassemble the feather key of the
X-axis.
£ Slide the toothed wheel on the recir-
culating ball screw.
£ Tighten the toothed wheel of the X-
axis with the locking nut.

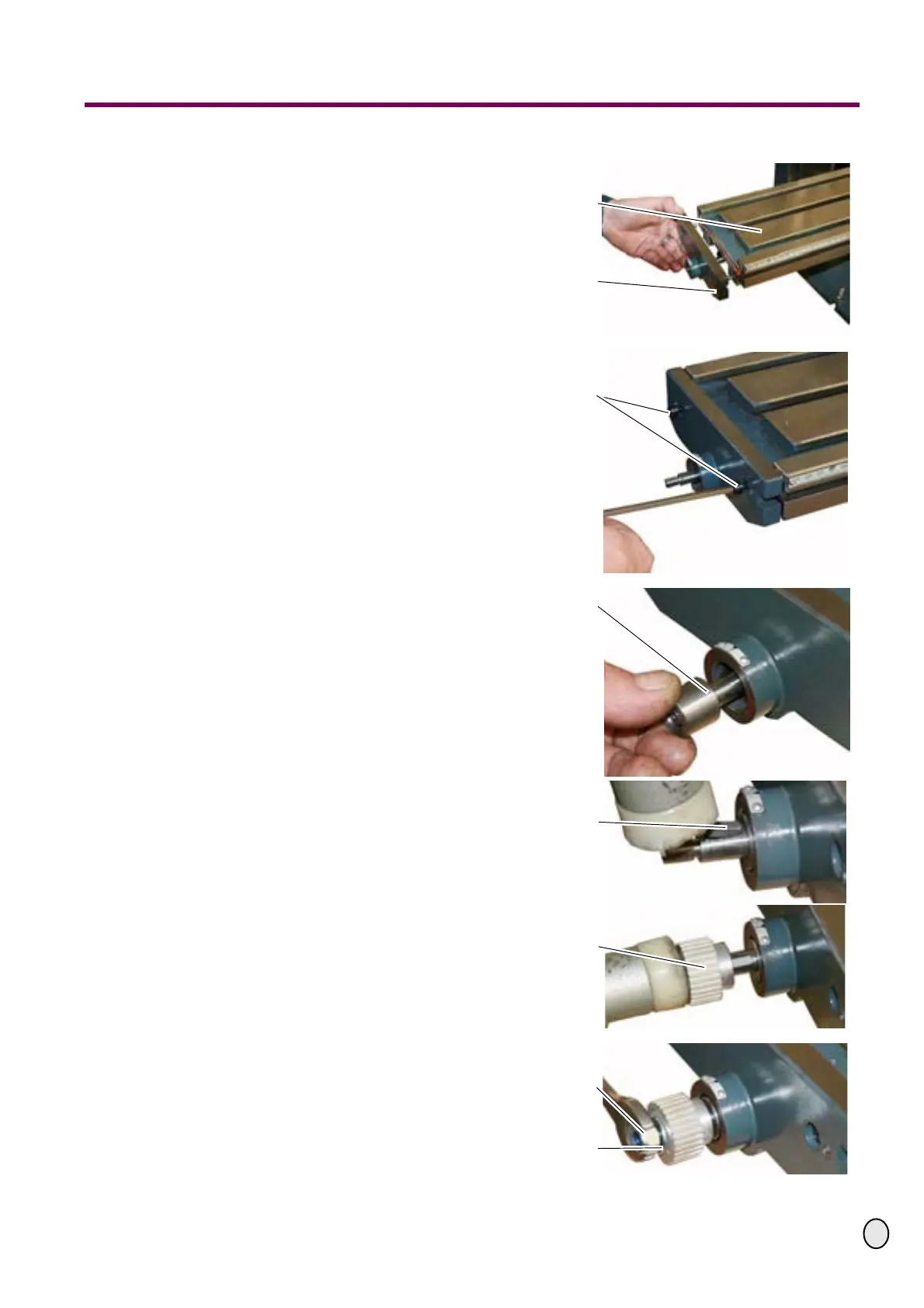

Fig.1-56: Assembly X-axis
Table X-axis
Pillow block
Hexagon socket
screws
Spacer
Feather key
Toothed wheel
Locking nut
Disk
