Assembly and maintenance instruction recirculating ball
OPTIMUM
MASCHINEN - GERMANY
5. Dezember 2007Page 6 Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB

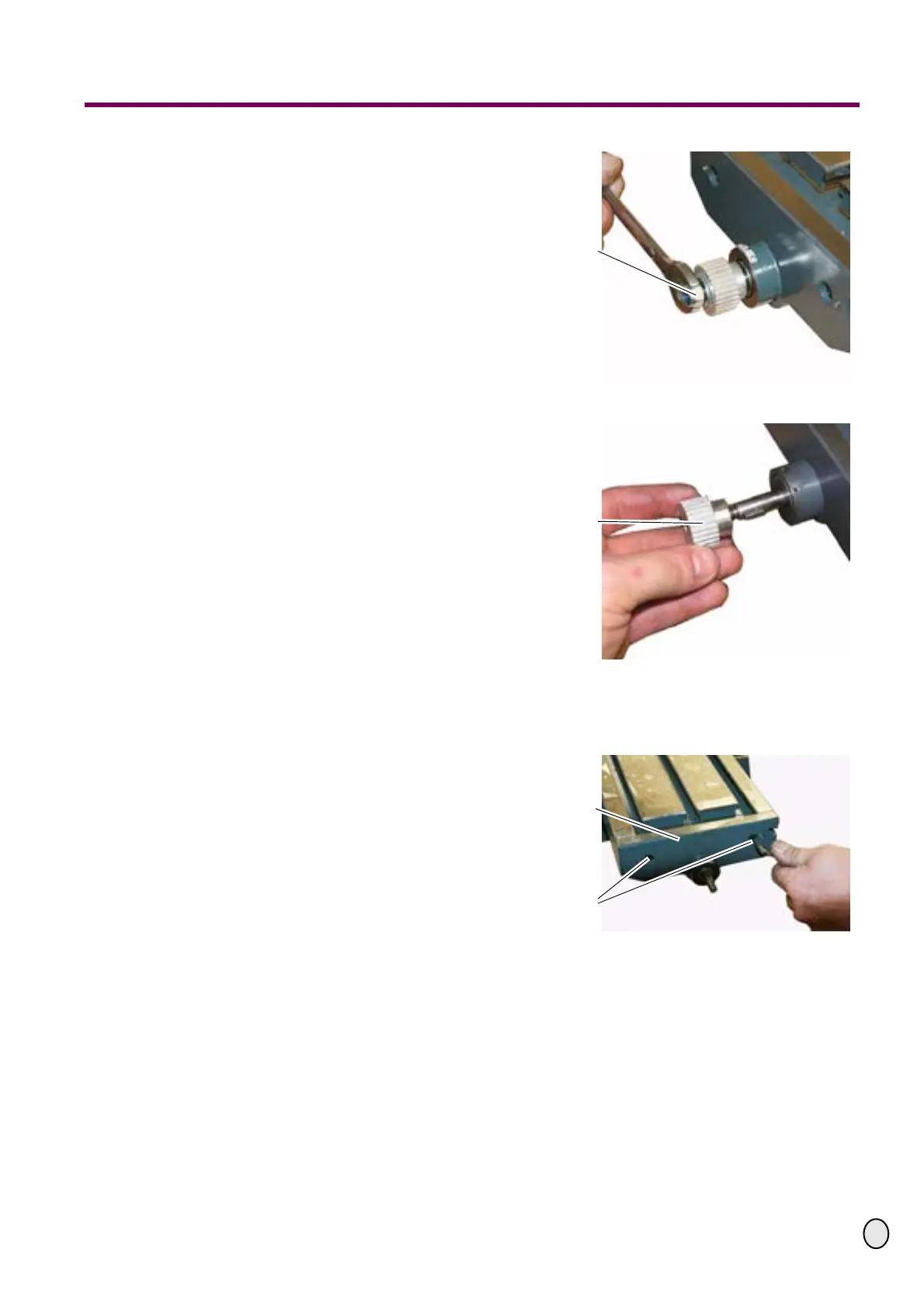

£ Loosen and unscrew hexagon nut,
then disassemble the toothed wheel.
Fig.1-4: Loosen nut
Fig.1-5: Disassemble toothed wheel
£ Disassemble the two screws on the
left side of the X-axis.
Fig.1-6: Disassemble screws
Hexagon nut
Toothed wheel
Pillow block
Screws
