Assembly and maintenance instruction recirculating ball screw
5. Dezember 2007 Page 7Recirculating ball screw assembly and maintenance instruction ; Version 2.0
© 2007
GB

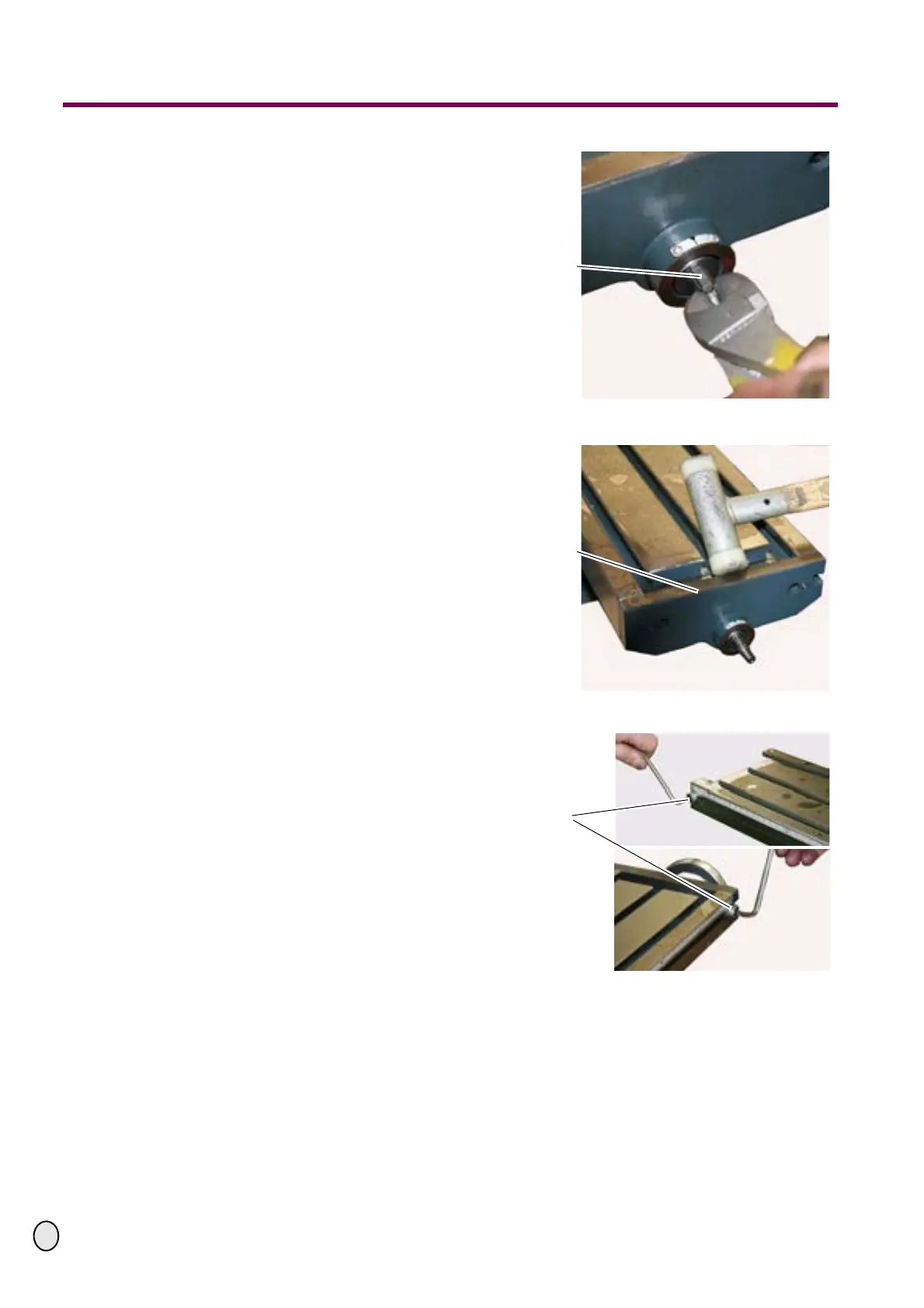

£ Drag the feather key from the
spindle.
Fig.1-7: Disassemble feather key
£ Remove pillow block, if necessary
strike with a plastic tip hammer.
Fig.1-8: Disassemble pillow block
£ Disassemble limit stops of the X-
axis.
Fig.1-9: Disassemble limit stop
Feather key
Pillow block
Limit stops
