Optoma DS316L Brochure & Specs

DS316L SPECIFICATIONS
Native Resolution SVGA 800 x 600
Compressed Resolution UXGA (1600 x 1200) HD (1080p)
Brightness - BRIGHT mode 2700 ANSI Lumens
Contrast 4000:1
Noise Level in Standard mode 27dB
Lamp Life** 4000/3000 (STD/BRIGHT mode)
Projection Lens F/2.41~2.55; f=21.8~24mm, 1.1x Manual Zoom
Throw Ratio 1.95 - 2.15:1 (Projection Distance:Image Width)
Projection Distance 1.2 - 12m
Image Size 0.70 – 7.70m (27.49” - 303.12”) Diagonal 4:3
Display Technology Single 0.55” SVGA DC3 DMD chip DLP
®
Technology
by Texas Instruments
Weight / Dimensions (W x D x H) 2.3 kg / 286 x 192 x 84mm
Remote Control Full function remote with direct source selecting
INPUTS 15 Pin D-Sub VGA SCART via adaptor
Component via adaptor
S-Video 4 Pin Mini Din
Composite RCA
Stereo Audio Mini Jack
CONTROL RS232 - 3 Pin D-sub
OUTPUT Stereo Audio Mini Jack
Audio 2W Speaker
Aspect Ratio 4:3 Native, 16:9 Compatible
Keystone Correction ± 40° Vertical
On Screen Display 18 Languages: English, German, French, Italian, Spanish,
Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek,
Norwegian, Danish, Hungarian, Czech, Turkish & Arabic
Video Compatibility HD 720p/1080i/1080p, PAL SECAM 576i/p, NTSC 480i/p
Uniformity 85%
Displayable Colours 1.07 Billion
Horizontal Scan Rate 15.3 - 91.1kHz
Vertical Scan Rate 24 - 85Hz
Power Supply 100 - 240V, 50 - 60Hz
Power Consumption 233W BRIGHT mode < 1W Standby mode
207W STD mode < 1W Standby mode
Operating Conditions Operating: 5 - 40˚C, 85% Humidity (Max), 3000m Altitude (Max)
Security Kensington Lock Port, Password Protection
In the Box Quick Start Guide, Remote control with batteries, Power cord
RoHS Compliant
Lamp Warranty 6 months or 1000 hours - whichever comes sooner
Warranty Warranty may vary by country.
Please see www.optomaeurope.com or ask your local
supplier for details
Colour Guarantee* 5 Years
Imager Guarantee*** 5 Years
Optoma Europe Ltd.
42 Caxton Way, Watford Business Park, Watford, Hertfordshire, UK. WD18 8QZ
www.optoma.co.uk
*Optoma guarantees that in normal use, Optoma DLP
®
colour quality will be indistinguishable from when new. Exclusions: (1) Guarantee is voided if the projector is subject to damage through misuse. (2) Guarantee may be void in industrial or commercial
entertainment environments where dust or smoke is excessive (3) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other faults. (4) Over time worn lamps within all projector types will show a slight
colour variance. **Typical lamp life achieved through testing. Will vary according to operational use and environment conditions. *** Optoma guarantees that in normal use, the DLP
®
imager will retain image quality for at least 5 years and provide consistent pixel
performance. Exclusions: (1) Guarantee is voided if the projector is subject to damage through misuse. (2) Guarantee may be void in industrial or commercial environments where dust or smoke is excessive.
Copyright © 2010, Optoma Europe Ltd. All other product names and company names used herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications
are subject to change without notice. DLP
®
, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.
Optoma recommended Screens
www.panoview.eu
DS316L

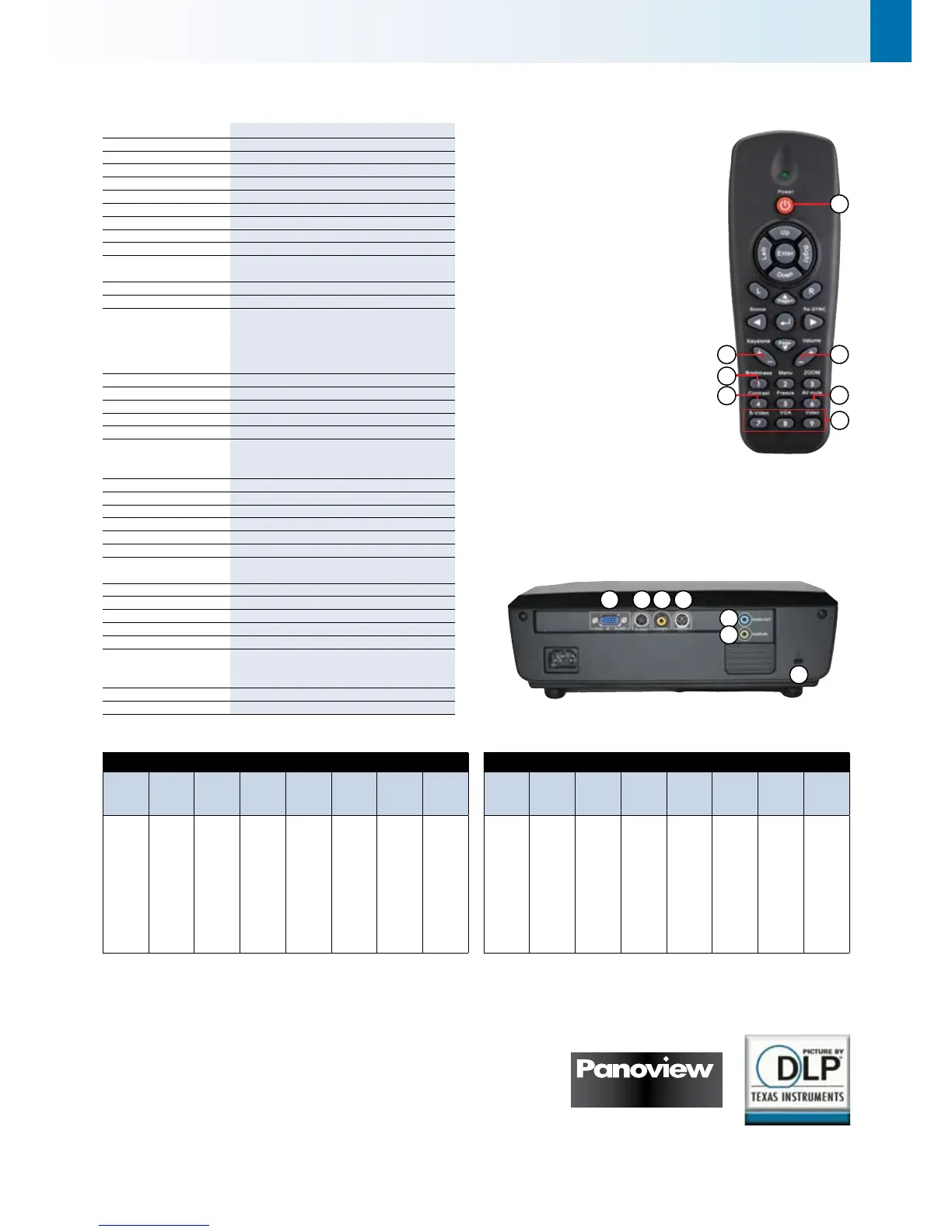

DS316L Remote Control
1 Power On/Off
2 Vertical Keystone Correction
3 Volume Control
4 Brightness Adjustment
5 Contrast Adjustment
6 AV Mute
7 Direct Input Source Selection
DS316L Connections
8 VGA - SCART & Component
9 S-Video
10 Video
11 RS232 - 3 Pin
12 Audio Out
13 Audio In
14 Kensington™ Lock
EASY TO USE REMOTE CONTROL
2
3
4
6
5
7
Exceptional Connectivity / Multiple Terminals
8 9
DS316L Distance Table Aspect Ratio 4:3
Projection
Distance (m)
Max.
Horizontal
Image Size
(m)
Min.
Horizontal
Image Size
(m)
Max. Vertical
Image Size
(m)
Min. Vertical
Image Size
(m)
Max
Diagonal
Image Size
(m)
Max Diagonal
Image Size
(inch)
Max. Image
Offset (m)
1.20
2.00
2.50
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
0.62
1.03
1.28
1.54
2.05
2.56
3.08
3.59
4.10
4.62
5.13
5.64
6.15
0.56
0.93
1.16
1.40
1.86
2.33
2.79
3.26
3.72
4.19
4.65
5.12
5.58
0.46
0.77
0.96
1.16
1.54
1.93
2.31
2.70
3.08
3.47
3.86
4.24
4.63
0.42
0.70
0.87
1.05
1.40
1.75
2.10
2.45
2.80
3.15
3.50
3.85
4.20
0.77
1.28
1.60
1.92
2.57
3.21
3.85
4.49
5.13
5.77
6.42
7.06
7.70
30.31
50.52
63.15
75.78
101.04
126.30
151.56
176.82
202.08
227.34
252.60
277.86
303.12
0.07
0.12
0.14
0.17
0.23
0.29
0.35
0.40
0.46
0.52
0.58
0.64
0.69
For guide purposes only
10 11
12
13
14
DS316L Distance Table Aspect Ratio 16:9
Projection
Distance (m)
Max.
Horizontal
Image Size
(m)
Min.
Horizontal
Image Size
(m)
Max. Vertical
Image Size
(m)
Min. Vertical
Image Size
(m)
Max
Diagonal
Image Size
(m)
Max Diagonal
Image Size
(inch)
Max. Image
Offset (m)
1.20
2.00
2.50
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
0.62
1.03
1.28
1.54
2.05
2.56
3.08
3.59
4.10
4.62
5.13
5.64
6.15
0.56
0.93
1.16
1.40
1.86
2.33
2.79
3.26
3.72
4.19
4.65
5.12
5.58
0.35
0.58
0.72
0.87
1.16
1.45
1.74
2.03
2.32
2.61
2.90
3.19
3.48
0.32
0.53
0.66
0.79
1.05
1.31
1.58
1.84
2.10
2.36
2.63
2.89
3.15
0.71
1.18
1.47
1.77
2.36
2.95
3.53
4.12
4.71
5.30
5.89
6.48
7.07
27.83
46.38
57.97
69.57
92.76
115.95
139.14
162.32
185.51
208.70
231.89
255.08
278.27
0.05
0.09
0.11
0.13
0.17
0.22
0.26
0.30
0.35
0.39
0.43
0.48
0.52
www.optoma.eu/sport
1

Optoma DS316L Specifications

General

Matrix size	0.55 \
Projection distance	1.2 - 12 m
Vertical scan range	24 - 85 Hz
Horizontal scan range	15.3 - 91.1 kHz
Projection technology	DLP
Contrast ratio (typical)	4000:1
Screen size compatibility	27.49/303.12 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-40/40 °
Throw ratio	1.95 - 2.15:1
Digital zoom	1.1 x
Focal length range	21.8 - 24 mm
Aspect ratio	4:3, 16:9
Dimensions (WxDxH)	286 x 192 x 84 mm
Power requirements	100-240V, 50-60Hz
Connectivity technology	Wired
F-number (relative aperture)	2.41
Lamp power	185 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	2 W
AC (power) in	Yes
Serial interface type	RS-232
Power consumption (standby)	1 W
Power consumption (typical)	233 W
Certification	RoHS
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	5 - 85 %
Placement	Ceiling

Weight and Dimensions

Weight	2300 g
