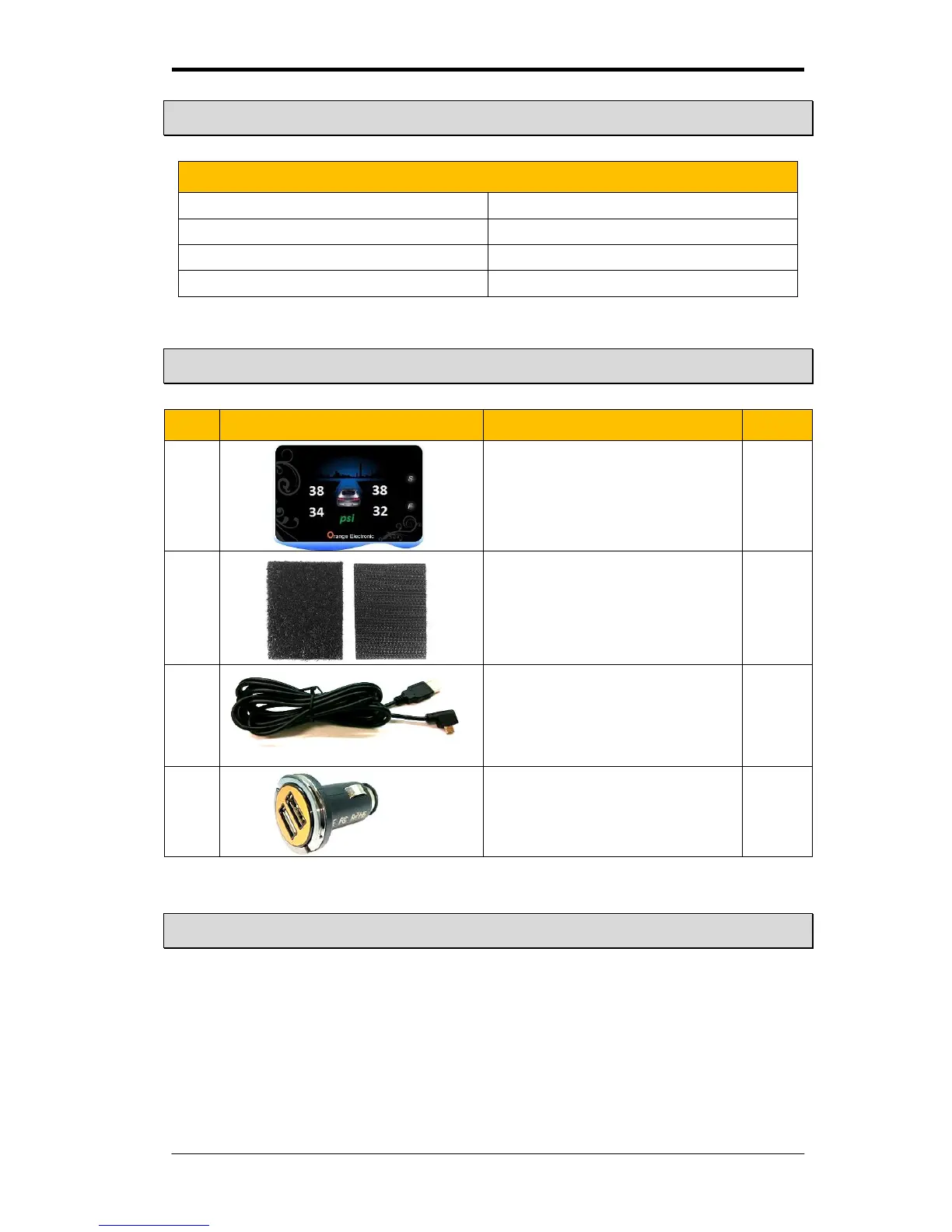

SPECIFICATIONS OF TPMS
RECEIVER SPECIFICATIONS
Operating Voltage
5V DC
Operating Current
< 150mA
Storage Temperature
-30
o
C to 75
o
C
Operating Temperature
-25
o
C to 75
o
C
ACCESSORIES
Description
Q’ty
A
Wireless Receiver and Display Unit
1
B
Velcro for display
2
C
Power Cord
(with 90 degree Micro-USB; 300cm
Length)
1
D
Power Connecter for cigarette
Lighter (USB with 2 outputs )
1
System Operation
This receiver and display unit is only compatible with the Mazda CX5 OE TPMS sensor. After
installation, the receiver and display unit needs to do the relearn process to learn TPMS
signal. Then the display will show the correct tire pressure information on display.
Once the ignition is turned on, and the vehicle is in driving mode, the receiver and display
will show the real-time tire pressure and temperature individually.
