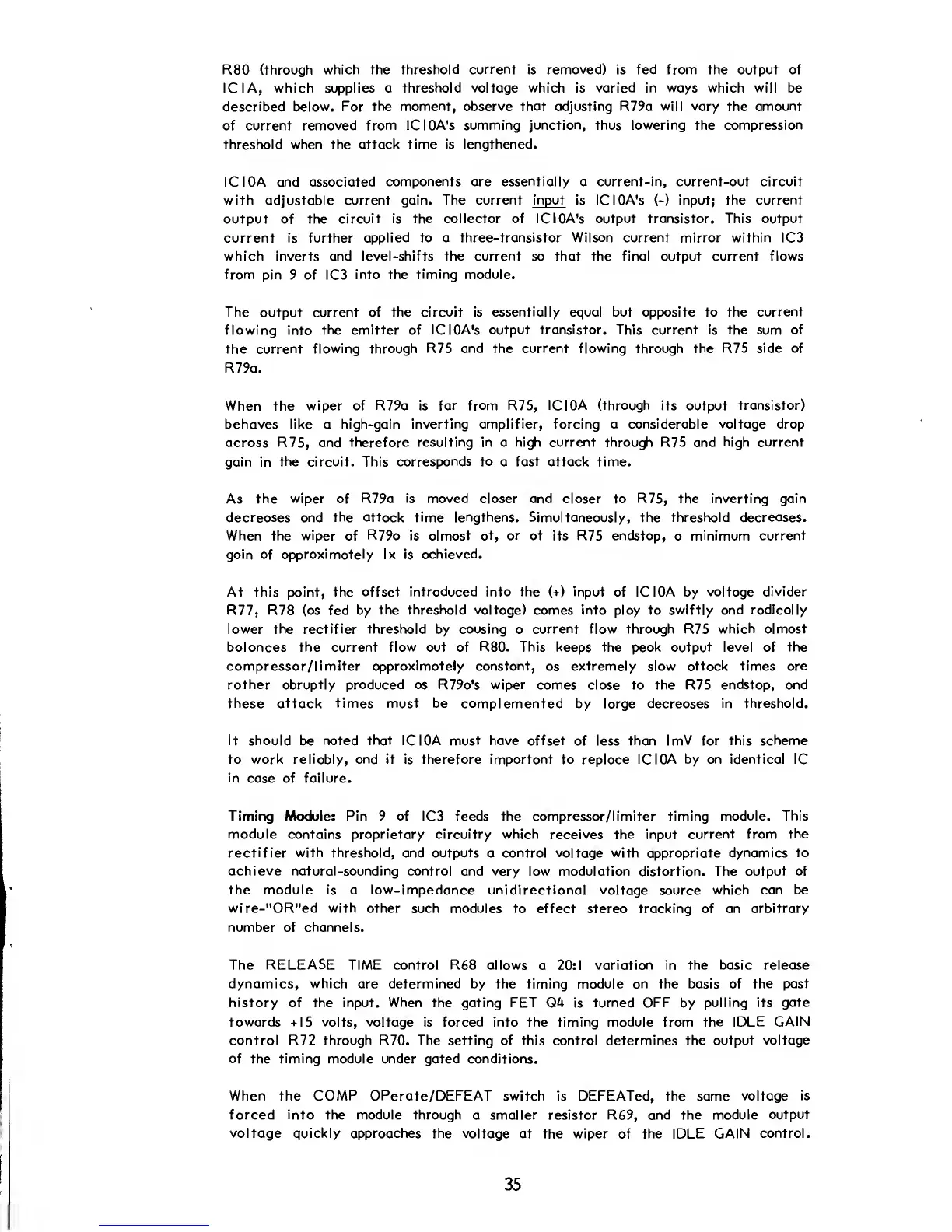

R80 (through
which the
threshold current
is
removed)
is fed from the output of
1C
I A,
which supplies a
threshold voltage which
is varied in
ways which will
be
described below. For
the moment, observe that
adjusting R79a
will vary
the
amount
of current
removed from ICIOA's summing
junction,
thus
lowering
the
compression
threshold
when
the
attack time is lengthened.
ICIOA and associated
components are
essentially
a current-in,
current-out
circuit
with
adjustable current gain.
The current input
is
ICIOA's
(-) input;
the current
output of the
circuit is the collector of ICIOA's output transistor. This output
current is further
applied to a three-transistor Wilson current mirror within IC3
which
inverts and
level-shifts the current so
that the final output current flows
from
pin 9 of IC3
into the
timing
module.
The
output
current of
the circuit is
essentially
equal but opposite to the
current
flowing into
the emitter
of
ICIOA's output transistor. This current is the sum of
the current
flowing through R75 and the
current flowing
through the R75
side of
R79a.
When the
wiper of R79a
is far from
R75,
ICIOA (through its output transistor)
behaves like a
high-gain inverting amplifier, forcing a considerable voltage drop
across R75, and
therefore resulting in a high current through
R75 and
high
current
gain
in
the
circuit. This
corresponds to
a
fast attack
time.
As the
wiper
of R79a
is moved closer
and closer to R75, the inverting gain
decreases and
the attack time lengthens.
Simultaneously, the
threshold decreases.
When the wiper
of
R79a
is
almost at, or at
its R75
endstop,
a
minimum current
gain of approximately lx is
achieved.
At
this
point,
the offset introduced into the
(+)
input of ICIOA by
voltage divider
R77, R78
(as
fed by
the
threshold
voltage) comes into play to swiftly and
radically
lower
the rectifier threshold
by
causing a current
flow through
R75
which almost
balances the current flow
out of R80. This keeps
the peak output level of
the
compressor/limiter approximately
constant, as
extremely slow attack times are
rather
abruptly
produced as
R79a's
wiper
comes
close to the
R75
endstop, and
these attack
times
must be complemented
by
large decreases
in
threshold.
It
should be
noted
that ICIOA must have offset
of
less than ImV for this scheme
to work reliably,
and it is therefore important to replace ICIOA by
an identical
1C
in
case
of failure.
Timing
Module:
Pin
9
of
IC3 feeds
the compressor/limiter timing
module. This
module
contains proprietary circuitry which receives the input current
from the
rectifier with threshold,
and
outputs
a control voltage
with
appropriate
dynamics to
achieve
natural-sounding control
and
very low
modulation distortion.
The
output
of
the
module is a low-impedance unidirectional
voltage source
which
can be
wire-"OR"ed with
other such modules to
effect stereo tracking of
an arbitrary
number
of
channels.
The
RELEASE
TIME control R68 allows
a 20:1
variation in the basic
release
dynamics,
which
are determined by the timing module on the basis of
the past
history of the input.
When
the gating FET
Q4 is
turned OFF
by
pulling its
gate
towards +15 volts, voltage
is forced into the timing module from
the IDLE
GAIN
control
R72
through
R70.
The
setting of this control determines
the output
voltage
of
the
timing
module under gated conditions.
When the COMP OPerate/DEFEAT switch
is DEFEATed, the same
voltage is
forced into the module through
a
smaller
resistor R69, and
the module
output
voltage
quickly approaches the voltage
at the wiper
of
the IDLE GAIN
control.
35
