Orban 424A - Page 48

REF
VEN
ALTERNATE
DES
DESCRIPTION ORBAN P/N
lii
VENDOR
P/N
VENDORS
(1)
NOTES
CHASSIS ASSEMBLY
Capacitors
Cl,
2
Ceramic Disc,
1KV,
10%;
O.OOluF
21112-210
CRL
DD-102 MUR
C14,15
Ceramic
Disc, 1KV,
10%;
O.OOluF
21112-210
CRL DD-102 MUR
Diodes
CR4 USD, Green
25104-000
GI MV-5253
CR19
LED,
Yellcw
25105-000
GI
MV-5353
CR21
LED,
Red
25103-000
GI MV-5053
Inductors
LI, 2 Inductor, RF Choke,
lnH, 160
mA
29502-000
MIL
4662
Meters
Ml Meter,
Edge, 1mA,
Black/White, 0 to
-25
28010-002
EMI 13-F
950 Ohms
M2
Meter, Edge,
1mA, Black/White,
-20
to
+3
28010-001 EMI
13-F
950
Ohms
Miscellaneous
Lamp, Pilot, 6V, 0.15A
25301-000
SYL
1847
Line Cord,
AC, 3 Wire
28101-000
BEL
17534
FI Fuse, 3AG, Slo-Blo, 1/4A
28004-125
LFE 313.250 BUS
T1
Transformer, Power;
38VCT,
16VA
55001-000
ORB
Resistors
R23 Pot, Single, 50K, (5020)
20721-000
ORB 20%
CW
Log
Switches
S6 Switch,
Slide, Mains voltage selector
26140-000
SW EPSI-SLI
FOOTNOTES:
(1)
See last page
for abbreviations
(2)
No
Alternate Vendors known
at
publication
(3)
Actual part
is specially selected
from
part listed, consult Factory
(4)
Realignment may be required if replaced, see
Circuit Description and/or Alignment
Instructions

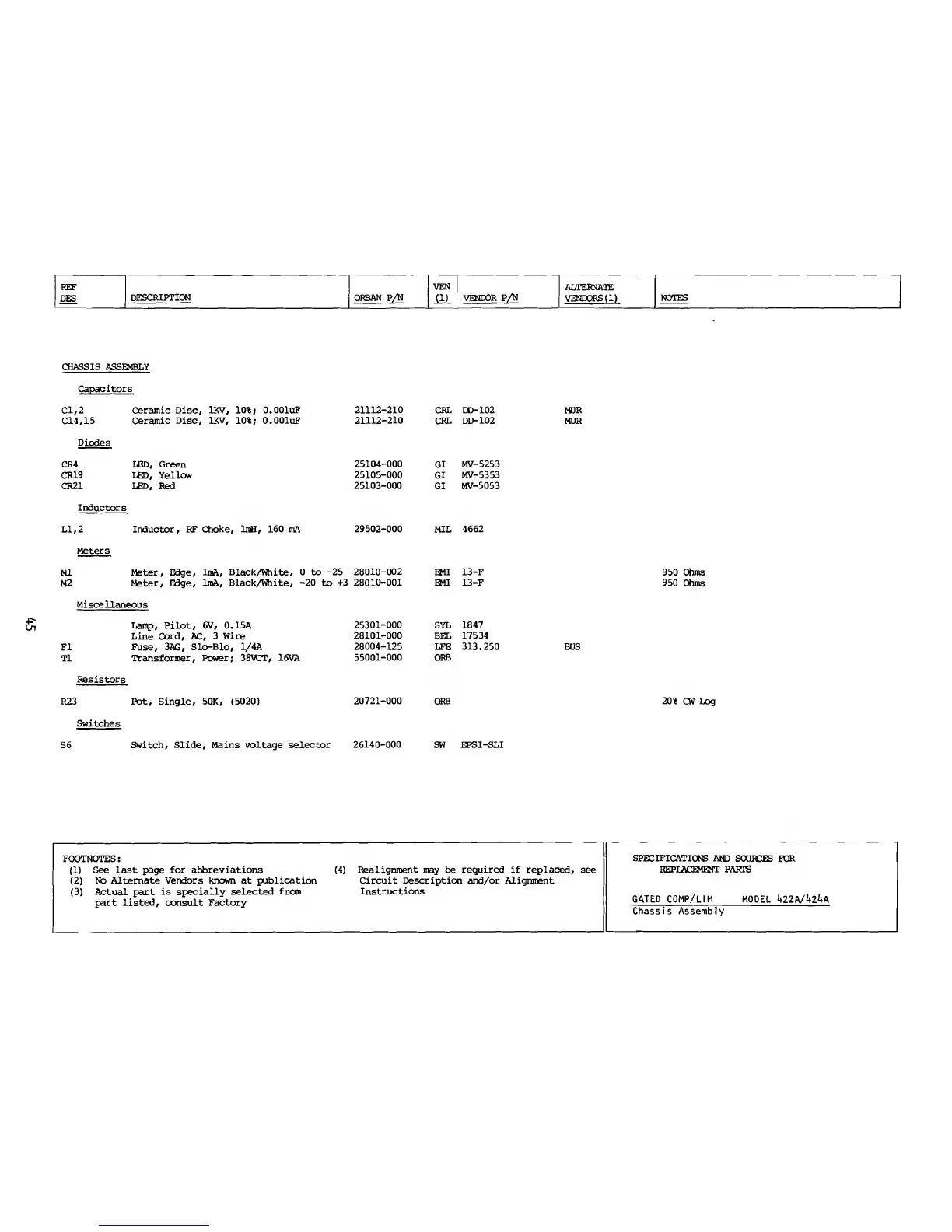

SPECIFICATIONS AND
SOURCES FOR
REPLACEMENT PARTS
GATED COMP/UM MODEL
422A/424A
Chassis Assembly
