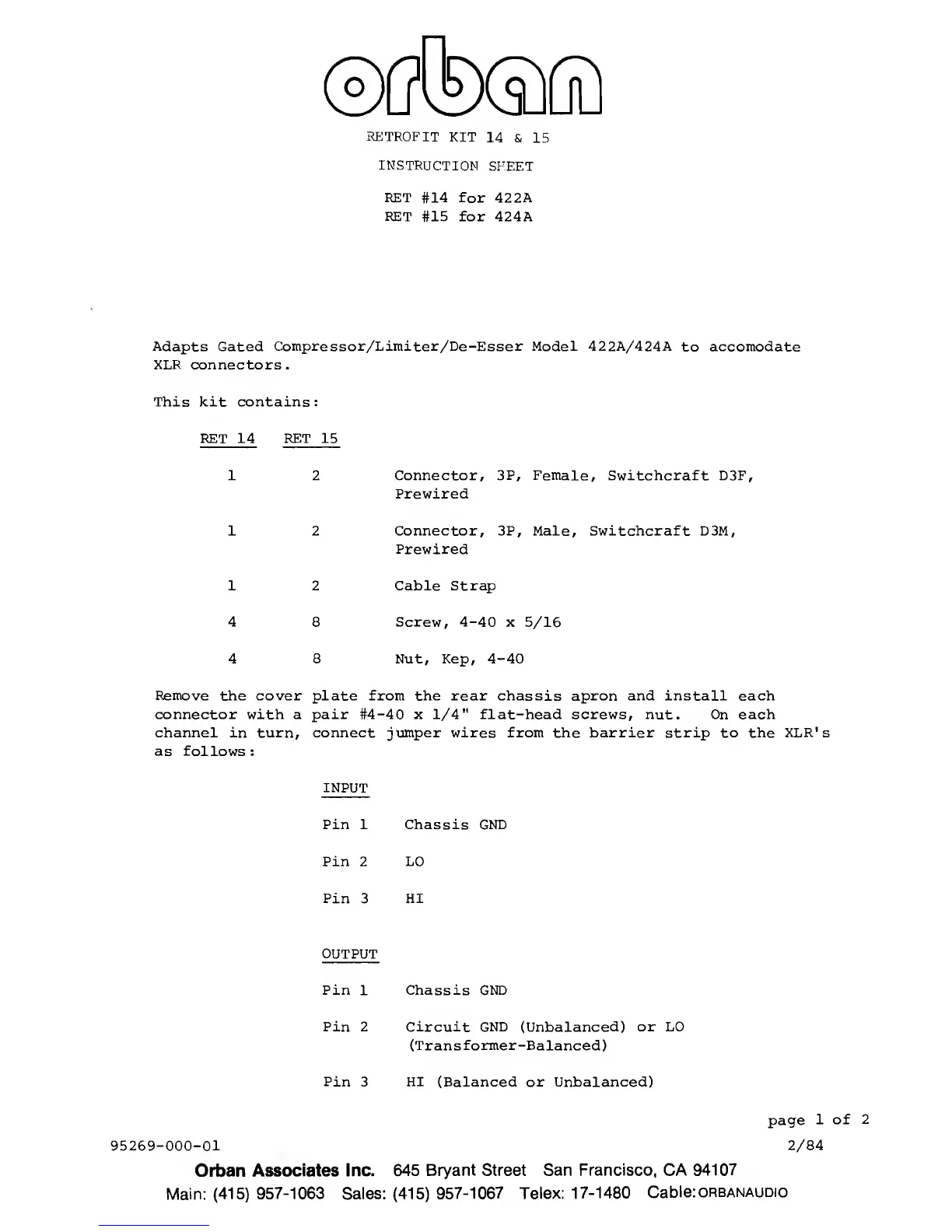

INSTRUCTION
SHEET
RET
#14 for
422A
RET
#15 for 424A
Adapts Gated
Compressor/Limiter/De-Esser Model 422A/424A
to
accomodate
XLR
connectors
.
This kit contains:
RET 14 RET 15
1 2
1 2
1 2
4
8
4 8
Connector,
3P,
Female, Switchcraft D3F,
Prewired
Connector, 3P, Male, Switchcraft D3M,
Prewired
Cable Strap
Screw,
4-40
x
5/16
Nut, Kep,
4-40
Remove
the
cover
plate from the rear chassis apron and install each
connector with a pair
#4-40
x
1/4"
flat-head screws, nut. On each
channel in turn, connect jumper wires from the barrier strip to the
XLR'
s
as follows
:
INPUT
Pin 1 Chassis GND
Pin 2
LO
Pin
3
HI
OUTPUT
Pin
1
Chassis GND
Pin 2 Circuit GND
(Unbalanced)
or LO
(Transformer-Balanced)
Pin
3
HI
(Balanced or Unbalanced)
page
1 of
2
95269-000-01
2/84
