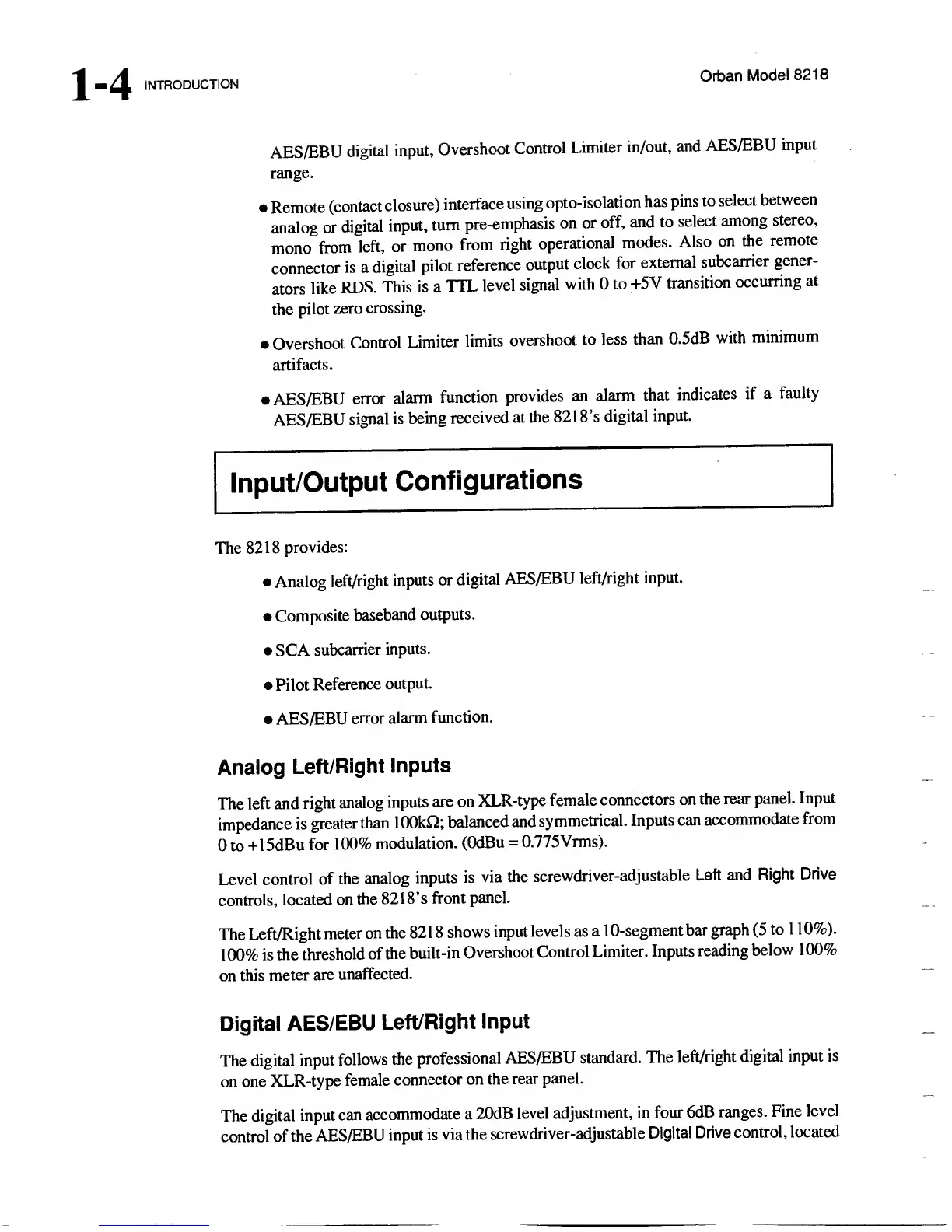

INTRODUCTION
Orban
Model
8218
AES/EBU
digital
input,
Overshoot
Control
Limiter
in/out,
and
AES/EBU
input
range.
• Remote
(contact
closure)
interface
using
opto-isolation
has
pins
to
select
between
analog
or
digital
input,
turn
pre-emphasis
on
or
off,
and to
select
among
stereo,
mono
from
left,
or
mono
from
right
operational
modes.
Also
on
the
remote
connector
is a
digital
pilot
reference
output
clock
for
external
subcarrier
gener-
ators
like
RDS.
This
is a
TTL
level
signal
with 0
to
+5V
transition
occurring
at
the
pilot
zero
crossing.
• Overshoot
Control
Limiter
limits
overshoot
to
less
than
0.5dB
with
minimum
artifacts.
• AES/EBU
error
alarm
function
provides
an
alarm
that
indicates
if
a
faulty
AES/EBU
signal
is
being
received
at
the 821
8’s
digital
input.
Input/Output
Configurations
The
8218
provides:
•
Analog
left/right
inputs or
digital
AES/EBU
left/right
input.
• Composite
baseband
outputs.
•
SCA
subcarrier
inputs.
•
Pilot
Reference
output.
• AES/EBU
error
alarm
function.
Analog
Left/Right
Inputs
The
left
and
right
analog
inputs
are on
XLR-type
female
connectors
on the
rear
panel.
Input
impedance is
greater
than
lOOkQ;
balanced
and
symmetrical.
Inputs can
accommodate
from
0 to
+15dBu
for
100%
modulation.
(OdBu
=
0.775Vrms).
Level
control
of the
analog
inputs
is
via the
screwdriver-adjustable
Left
and
Right Drive
controls,
located
on
the
8218’s
front
panel.
The
Left/Right
meter
on the
8218
shows
input
levels
as
a
10-segment
bar
graph
(5
to
1
10%).
100% is
the
threshold
of
the
built-in
Overshoot
Control
Limiter.
Inputs
reading
below
100%
on
this
meter
are
unaffected.
Digital
AES/EBU
Left/Right
Input
The
digital
input
follows
the
professional
AES/EBU
standard.
The
left/right
digital input
is
on one
XLR-type
female
connector
on
the
rear panel.
The
digital
input
can
accommodate
a
20dB
level
adjustment,
in
four 6dB
ranges.
Fine
level
control of the
AES/EBU
input is
via the
screwdriver-adjustable
Digital
Drive
control,
located
