DONGLE ANT+ LEV, IWOC TRIO +MAHLE EBIKEMOTION®30 | ORBEA ORBEA | 31 TECHNICAL MANUAL

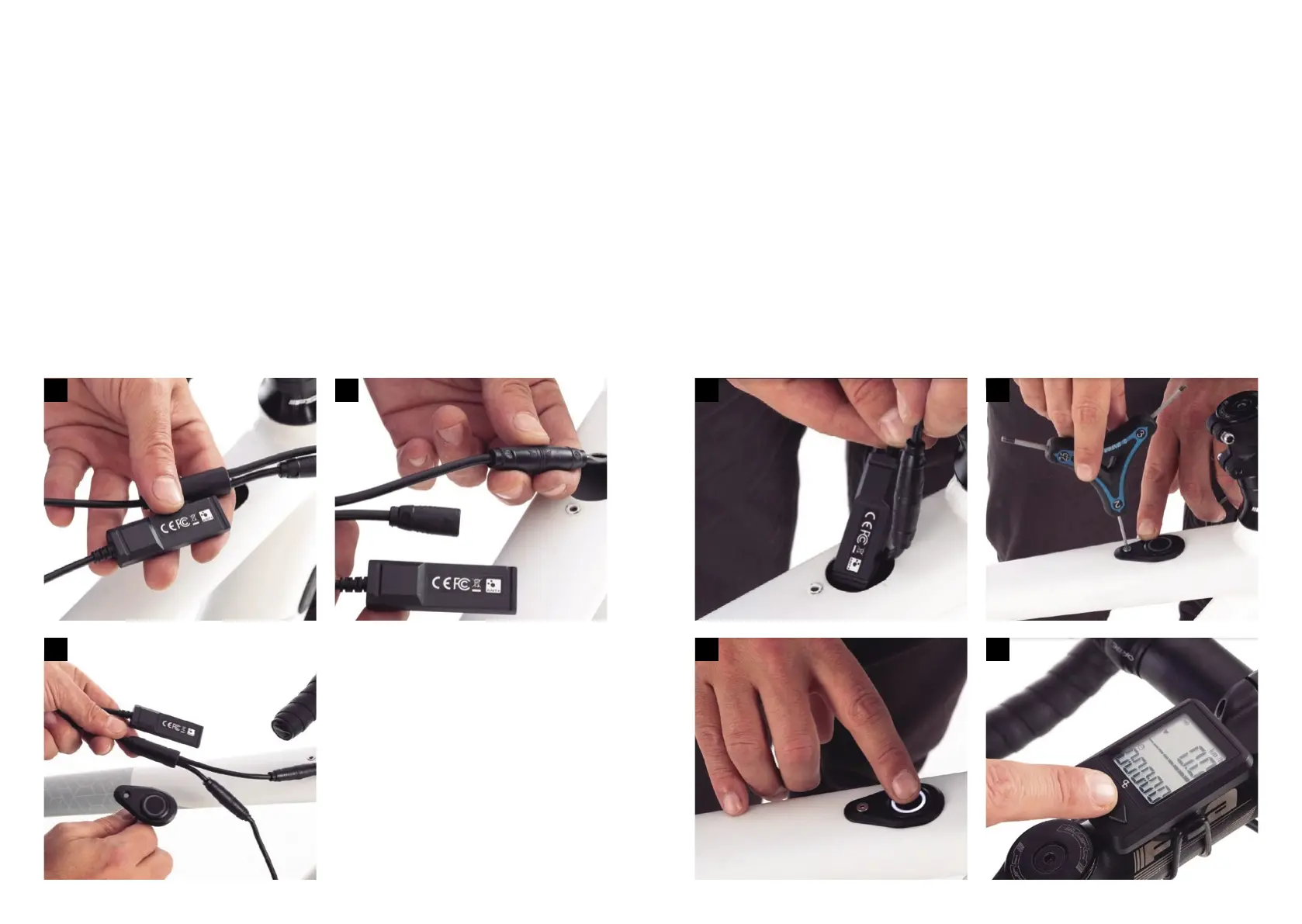

c. Connect the battery cable and the Iwoc One to the
“Y” branched cable from the ANT+ dongle.
c1
c1
c1
d. Insert the ANT+ dongle and all the cables and
connectors inside the top tube to the seat area of the
top tube.
e. Refasten the Iwoc One to the top tube with a 2mm
wrench (1Nm).
f. Turn on the bike and make sure that all components
work properly.
d
f g
e
g. Turn on the OC ANT+ LEV display or your ANT+
device and check that the bike connects correctly.
Instructions on the use of the OC ANT+ LEV display
can be found in the manual available on our web.
*In case of noise during use, wrap the dongle with the
foam sleeve provided.
