Orbea MAHLE EBIKEMOTION - Installation

DONGLE ANT+ LEV, IWOC TRIO +MAHLE EBIKEMOTION®28 | ORBEA ORBEA | 29 TECHNICAL MANUAL
7. INSTALLATION
7.1. ANT+ LEV DONGLE

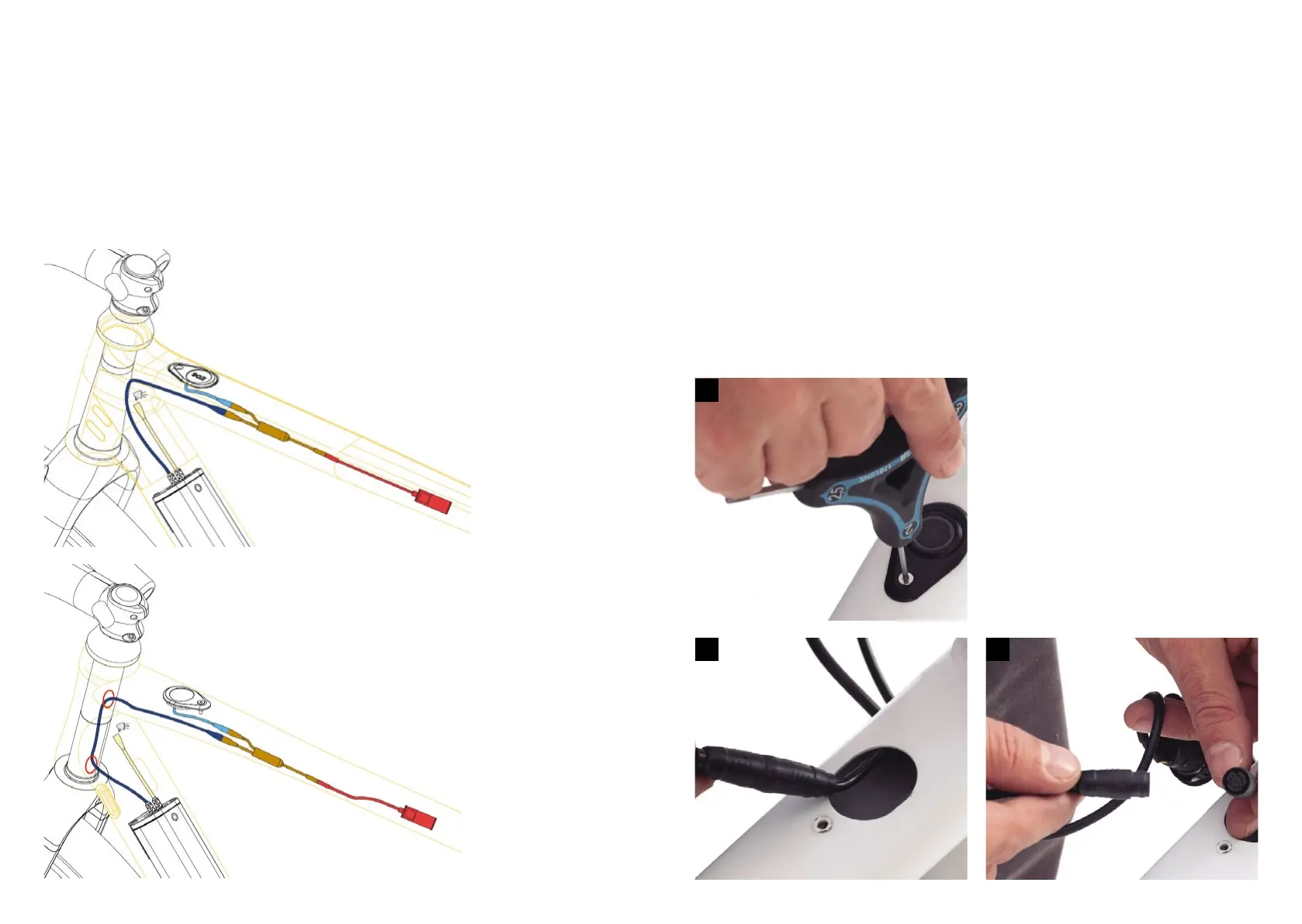

INSTALLATION DIAGRAM
— GAIN M Installation.
— GAIN D Installation.
INSTALLING THE ANT+ LEV DONGLE
a. Using a 2mm Allen wrench, unscrew Iwoc One xing
bolt from the top tube.
b. Carefully pull the Iwoc One and remove the cable
and the connector from the top tube. Disconnect the
Iwoc One from the battery cable.
a
b2b1
