INSTALLING THE IWOC TRIO+ REMOTE

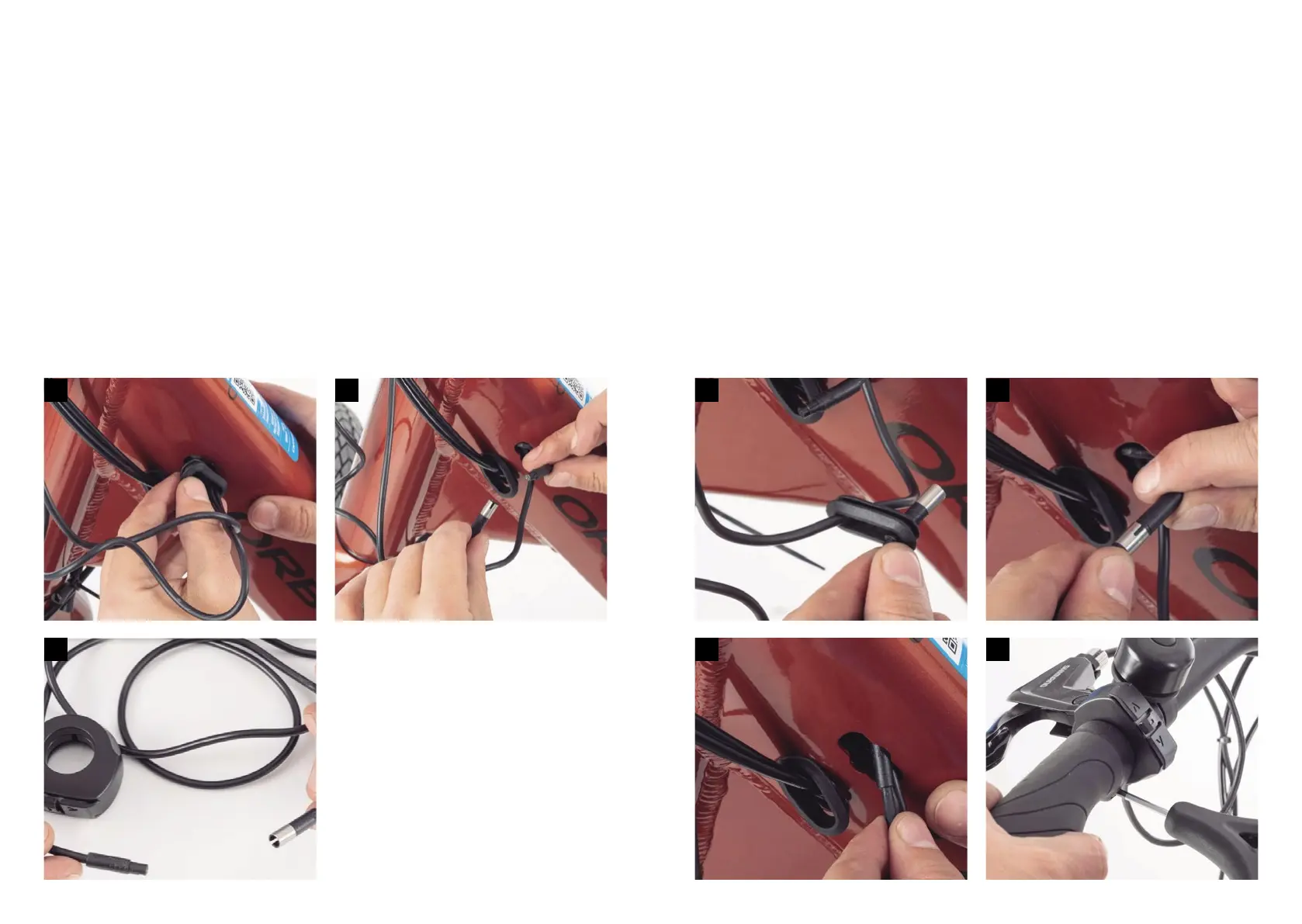

1. REMOVING THE IWOC TRIO
a. Remove the left grip from the bike handlebars.
b. Loosen the Iwoc Trio xing bolt and slide it off the
handlebars.
c. Remove the rubber stop from the down tube and
pull carefully on the Iwoc Trio cable until the metal
connector can be seen. Disconnect the connector
from the Iwoc Trio.
c1
d
c2
2. INSTALLING THE IWOC TRIO+
d. Disconnect the Iwoc Trio from the “Y” branched
cable.
e. Connect the metal connector on the Iwoc Trio and
insert the cable slack inside the down tube. Replace
the rubber stop in the down tube.
f. Install the Iwoc Trio remote on the handlebars and
fasten it in place with the xing bolt (1.8 Nm).
g. Place the grip on the handlebars and fasten it in
place.
h. Turn on the bike and make sure that there are no
errors and that all components work properly.
If the new Iwoc Trio does not work correctly, it might be
necessary to replace the “Y” branched cable. In this case,
the battery might need to be removed to access the “Y”
cable. This process must be carried out by an authorized
Orbea dealer.
e1
e3 g
e2
