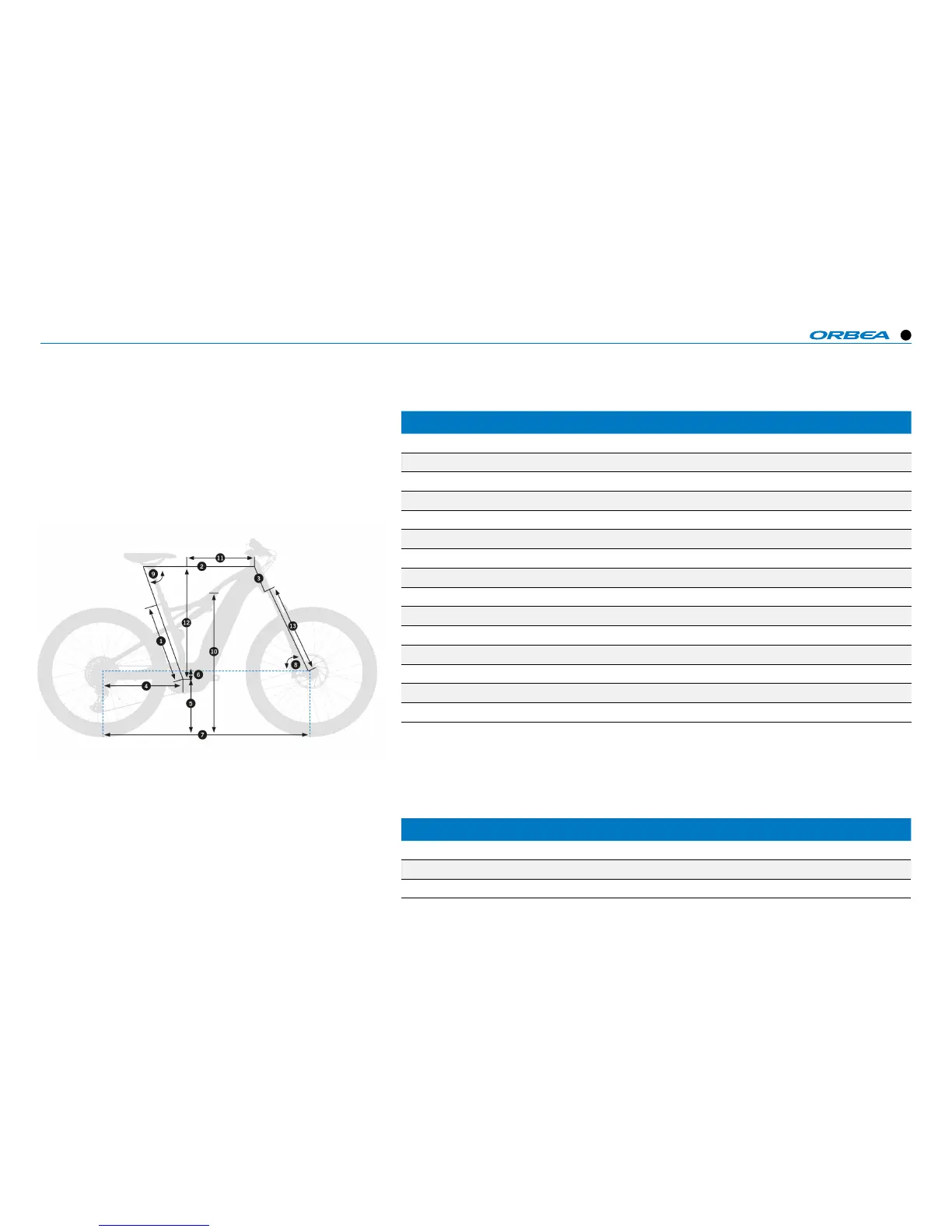

SIZES S M L XL
1 - Seat tube (C-T) 390 390 415 440
2 - Top tube (EFF) 575 595 624 653
3 - Head tube 115 130 145 160
4 - Chain stay 445 445 445 445
5 - BB drop 63 63 63 63
6 - BB height 305 [FOR 29X2,6”] / 296 [FOR 27,5X3,0”]
7 - Wheel base 1113 1134 1165 1195
8 - Head angle 67º 67º 67º 67º
9 - Seat angle 72,5º 72,5º 72,5º 72,5º
10 - Fork offset – Rake 51 51 51 51
11 - Standover height 29x2.6” 690 690 690 690
11 - Standover height 27x3,0” 678 678 678 678
12 - Reach 375 390 415 440
13 - Stack 634 647 661 675
14 - Fork length 527 [FORK 120MM] 527 [FORK 120MM] 527 [FORK 120MM] 527 [FORK 120MM]
* Estimated measurements.
HEIGHT (cm) HEIGHT (in) SIZE
155 -170 61-67 S
165 -185 65 -73 M
>180 >71 L
GEOMETRY
Maximum tyre dimension: 28” [Maximum external dimension 687mm]
