PHE 50 PHE 70
17

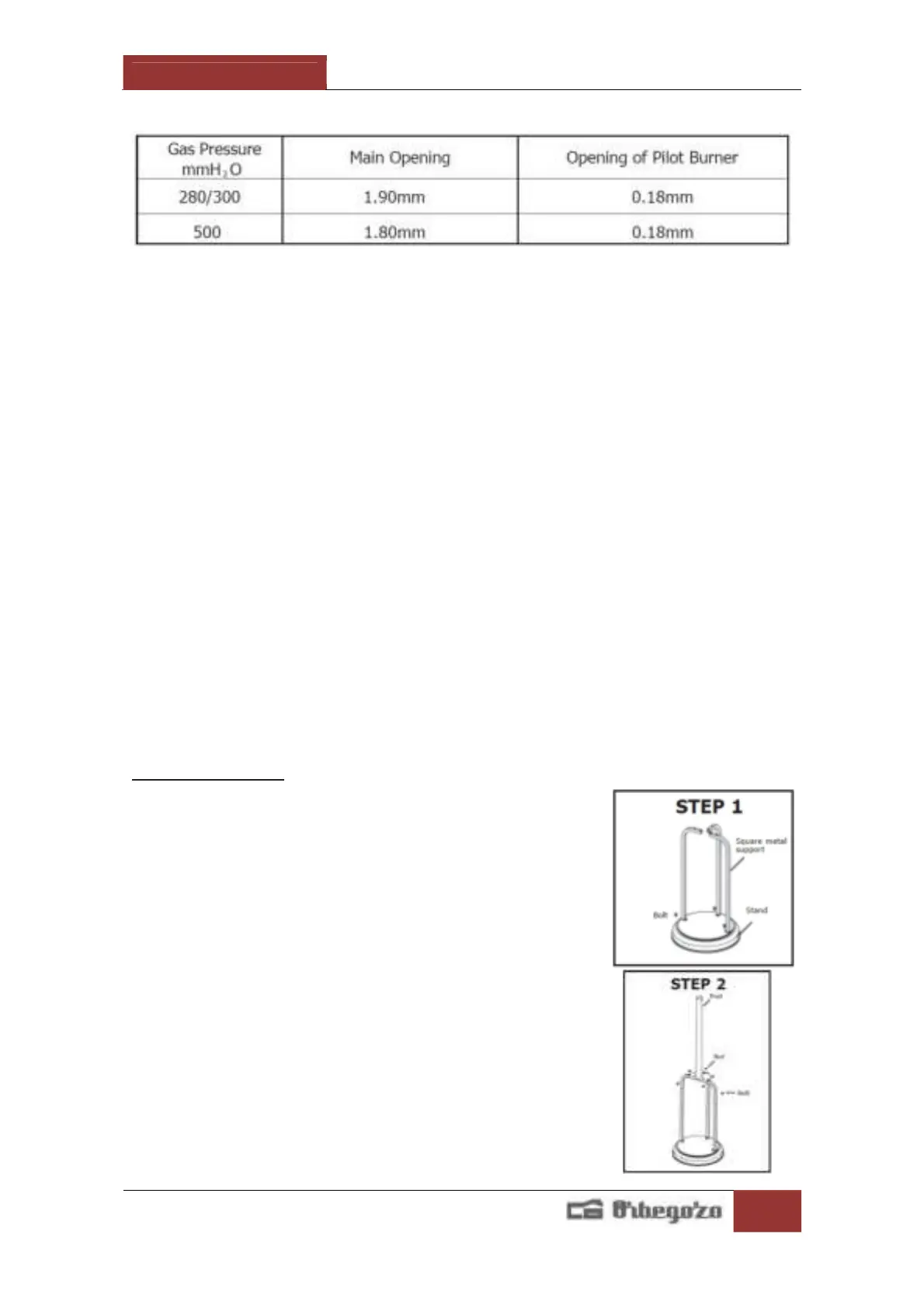

C. Table of openings
ASSEM BLY PARTS & PROCEDURES
Tools needed:
Open end wrench 10 & 13 mm
Adjustable opening wrench (2) 8’’ long
Slip joint pliers 9” long
Philips screwdriver w/ medium blade
Teflon plumbing tape for joints
Spray bottle of soap solution for leakage test
Parts supplied:
Stand with LPG tank housing
Assembly post with 3 pcs post brackets
10 mm x 86 cm (L) galvanized steel pipe
Reflector 810 mm with 6 pcs washers Ø8 mm and 3 pcs castles nuts
3 pcs 60mm(L) pins for reflector support.
4 pcs bolts M 6 x 10 mm for post and post and burner
6 pcs bolts & nuts M 6 x 35 mm for post and post brackets
3 pcs bolts M 8 x 16 mm for post brackets and stand
3 pcs ground fixer
6 pcs M 6 x 10 mm ground fixer bolts & nuts
Assembly Procedures
STEP 1
1-1. Put the three pcs post brackets on each position on the base
as shown in the picture.
1-2. Use 3 pcs M8 x 16 mm bolts to join the post brackets and
stand.
STEP 2
2-1. Put the post onto the top of 3 pcs post brackets.
2-2. Use 6 pcs M 6 x 35 mm bolts and nuts to connect the post to the
3pcs post brackets. Tighten the bolts and nuts.
To Next Page
