PHE 50 PHE 70
18

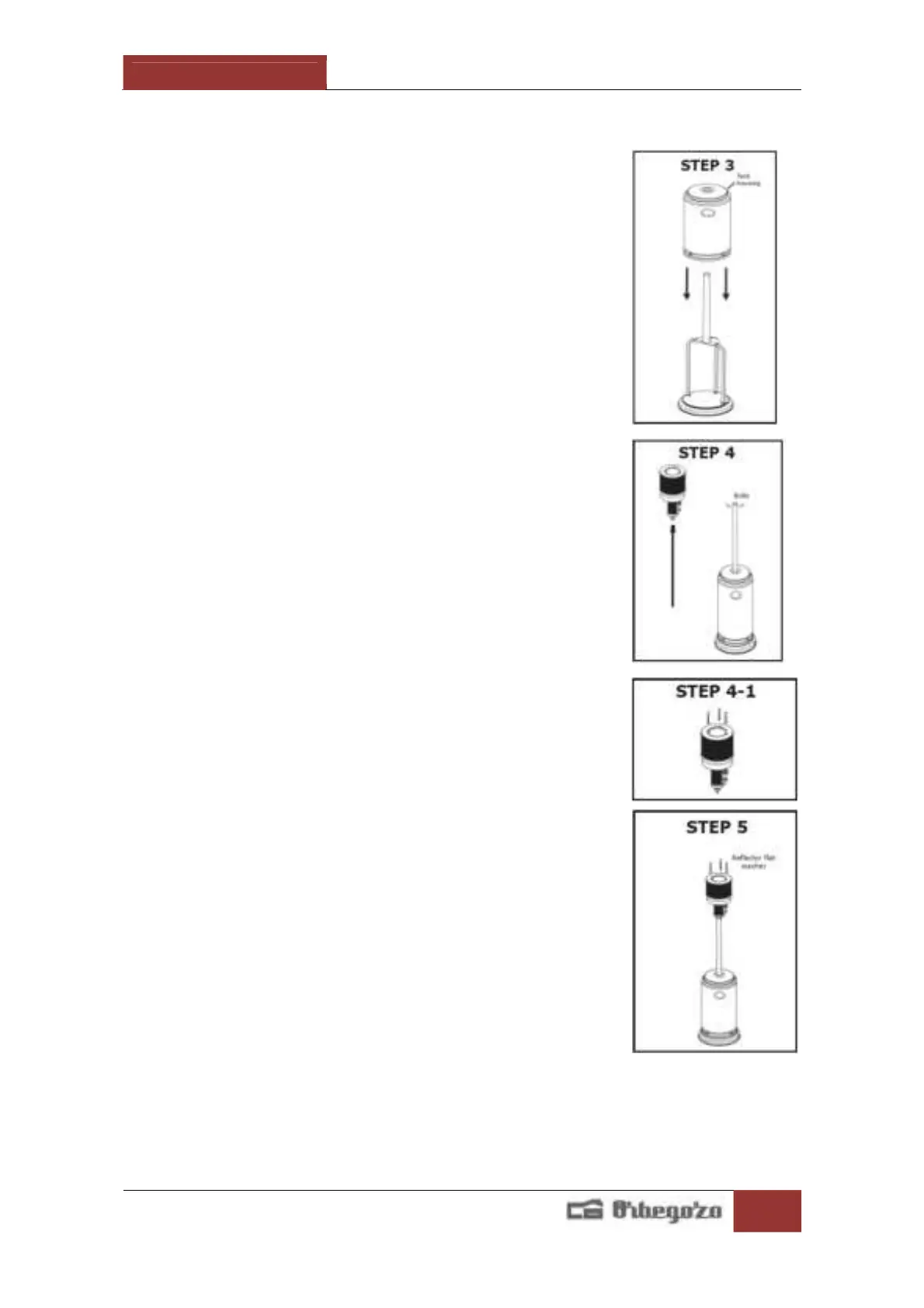

STEP 3
3.1. Put the tank housing through the post.
STEP 4
4-1. Fit the gas steel pipe nut into the burner gas inlet connector.
4-1-1. Secure the reflector support bolts on the flame screen cap with
3 pcs 60 mm length pins & 3 pcs Ø8 mm washers.
4-1-2. Connect the pins & washers to the flame screen.
4-1-3. Tighten the pins.
4-2. Tighten the gas steel pipe nut and gas inlet thread.
4-3. Put the burner with steel pipe onto the post.
4-4. Fix the burner base to the post by 4 pcs M 6 x 10 mm bolts.
STEP 5
5-1. Check whether the connection of vertical post and burner are
assembled as instruction, and all bolts and nuts are tightened.
5-2. Put the flat washer onto the top of e
ach burner/ reflector support
bolts
(M 8 thread).
To Next Page
