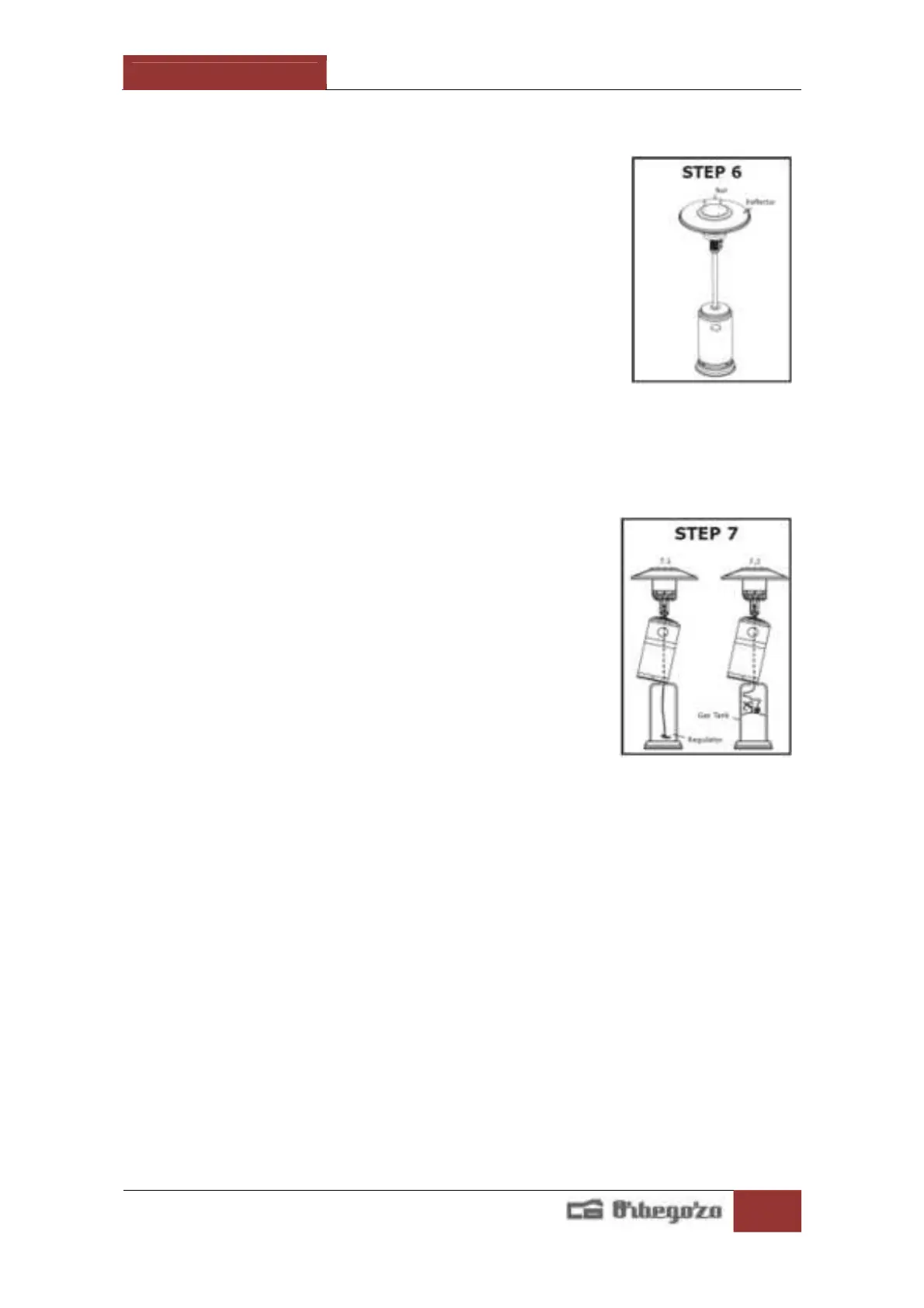

STEP 6
6-1. Put the reflector on top of the burner and passing through 3 pcs
burner/ reflector support bolts.
6-2. Fit washers into each support bolt and tighten each by M 8 castle
nut.
STEP 7
7-1. Bring up the tank housing and rest it on the post plate.
7-2. Fit the gas regulator rubber hose with the end thread of inlet
gas steel pipe and tighten the nut.
7-3. Connect the regulator with the LPG gas tank in counter-
clockwise direction and tighten it by adjustable wrench.
7-4. Put the LPG gas tank into stand.
