Table of injector
• The hose and regulator assembly must conform to local standard codes
• Regulator outlet pressure should meet the corresponding appliance category showed in the
specifications
• The appliance requires approved hose in 0.5 m

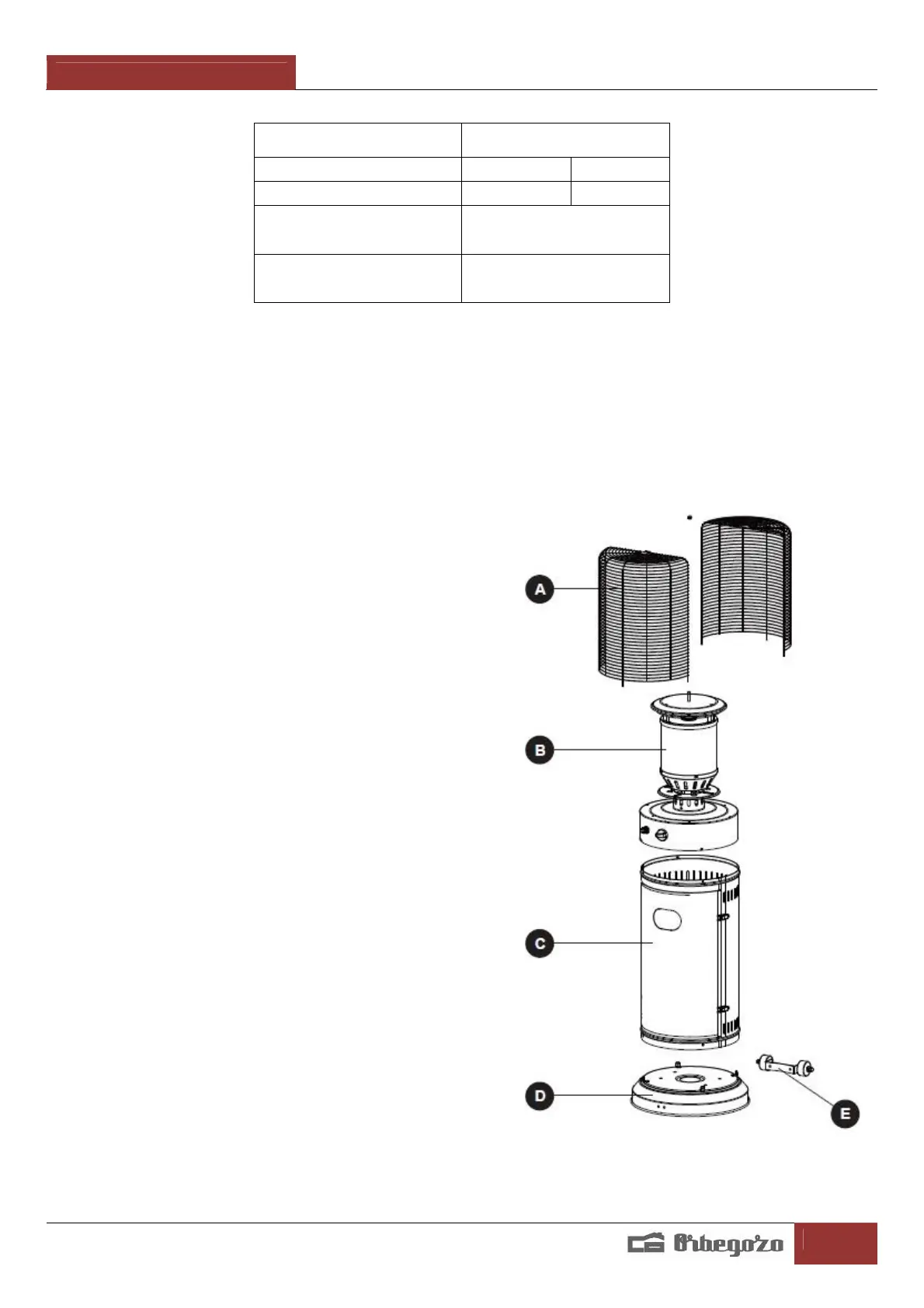

ASSEMBLY PARTS
Tools needed:
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
A. Protective guard of flame.
B. Burner
C. Cylindric housing
D. Base
E. Wheels
APPLIANCE CATEGORY:
I
3+(28
-
30/37)
TYPES OF GAS: Butane Propane
GAS PRESSURE: 28-30mbar 37 mbar
TOTAL HEAT
INPUT (Hs): (Qn)
11 Kw (800g/h)
INJECTOR SIZE:
1.75 mm for main burner
0.22 mm for pilot burner
