PHE 85
19

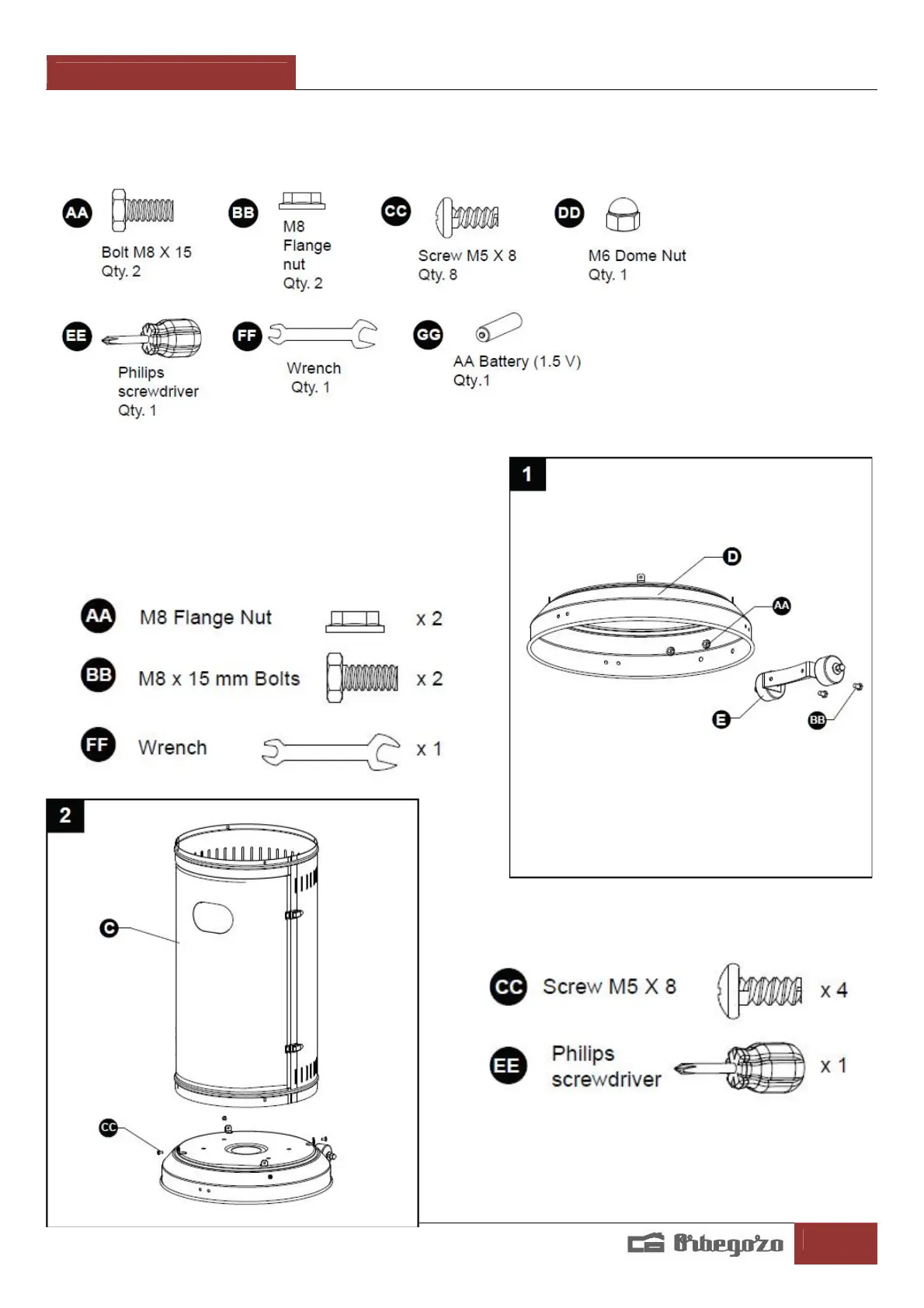

ASSEMBLAGE PIECES
ASSEMBLY PROCEDURES
1. Use 2 screws M8X15mm and nuts M8 to screw
wheels to the base.
2. Use 4 screws M5X8 to screw cylindric housing to base.
