• The hose and regulator assembly must conform to local standard codes
• Regulator outlet pressure should meet the corresponding appliance category showed in the
specifications
• The appliance requires approved hose in 0.5 m

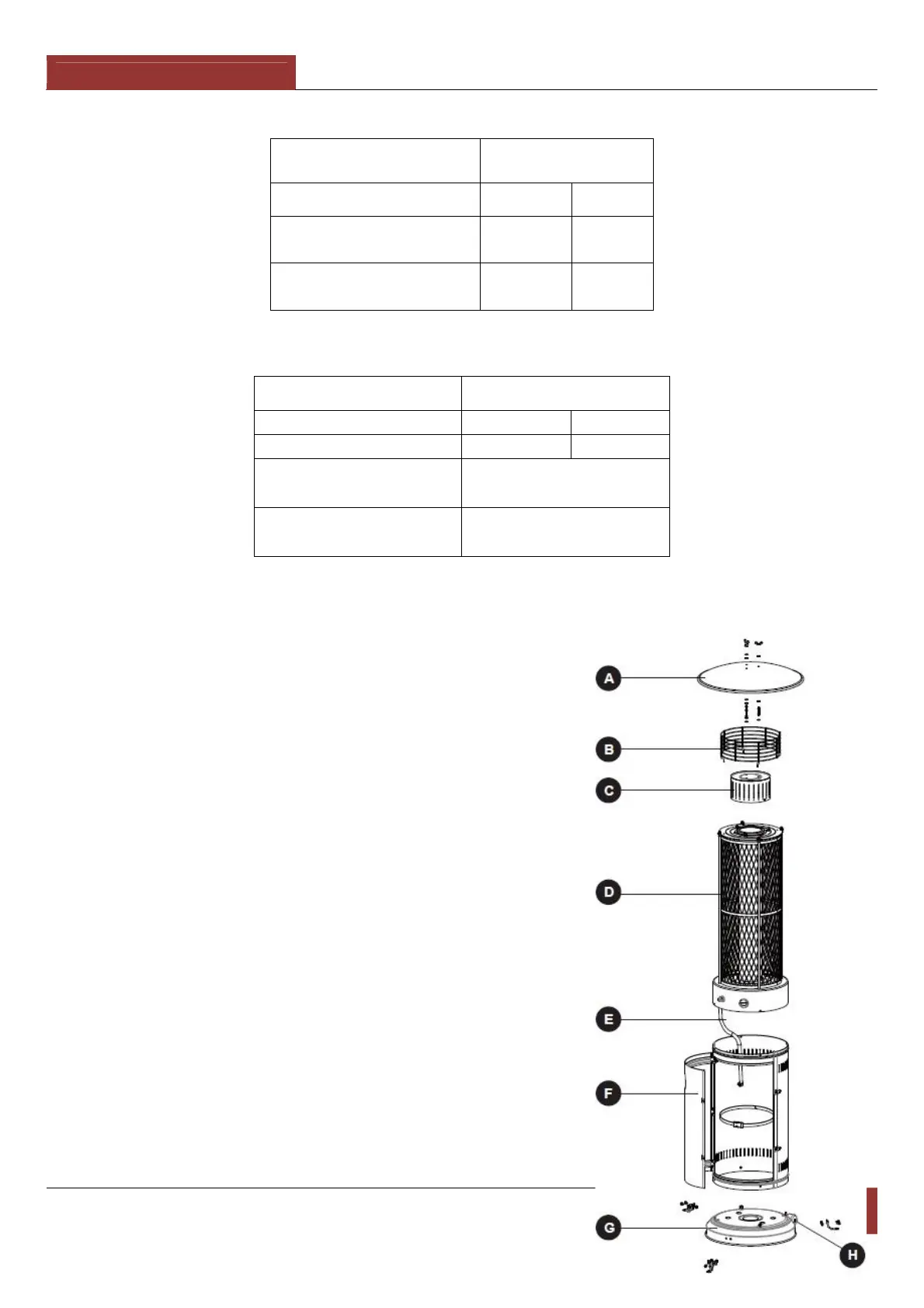

ASSEMBLY PARTS
Tools needed:
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
A. Reflector
B. Upper protective grille
C. Protective mesh
D. Protective grille for tube
E. Gas hose
F. Cylinder housing
G. Base
H. Wheels
APPLIANCE CATERGORY:
I
3+(28-30/37)
TYPE OF GAS: Butane Propane
GAS PRESSURE:
28-
30mbar
37 mbar
OUTLER PRESSURE OF
REGULATOR:
30mbar 37 mbar
APPLIANCE CATEGORY:
I
3+(28
-
30/37)
TYPES OF GAS: Butane Propane
GAS PRESSURE: 28-30mbar 37 mbar
TOTAL HEAT
INPUT (Hs): (Qn)
11 Kw (800g/h)
INJECTOR SIZE:
1.75 mm for main burner
0.22 mm for pilot burner
