ORBELLE 417 - Step 1: Connect Rails with Dowels; Step 2: Attach Guard Rails to Side Rails

4

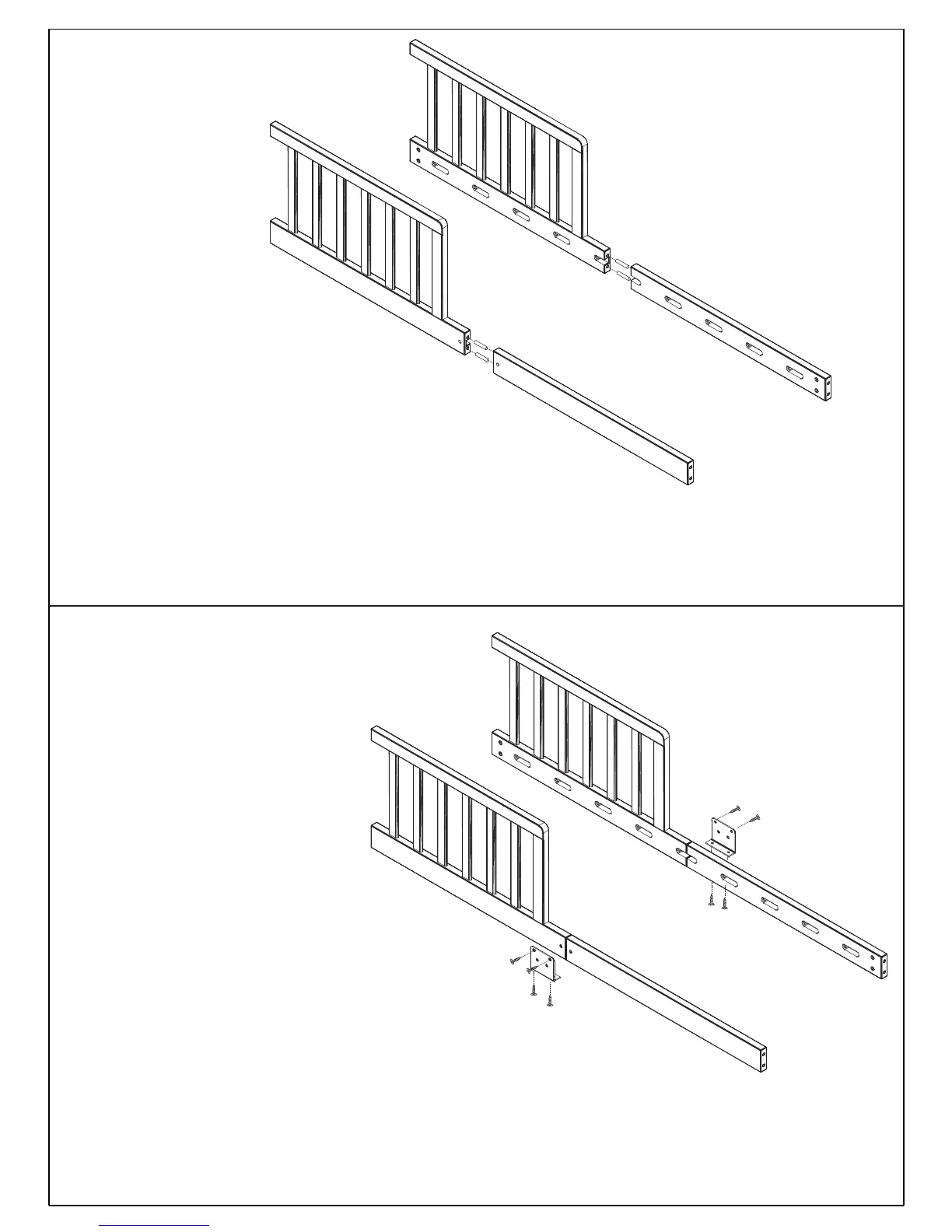

STEP 1
Connect the left rail (B) to the left rail (G) by wood dowels (d).
Connect the right rail (C) to the right rail (H) by wood dowels (d).
B
C
STEP 2
G
H
d
d
Connect the guard rail (B&C)
to the rail(G&H) by L metal
plate(e)and selfdrilling screw
(b).
NOTE: When attache the
L metal plate (e), make sure the holes
on the L metal plate (e) match to the
holes on the gurad rail(B&C),and rail
(G&H).Then tighten the self drilling
screw(b).
B
C
G
H
e
e
b
b
b
b
