ORBELLE 417 - Step 3: Install Mattress Slats and Split Legs (Right Side); Step 4: Install Mattress Slats and Split Legs (Left Side)

5
STEP 3
STEP 4
a
c
f
E
F
F
F
F
F
F
F
F
B
G
J

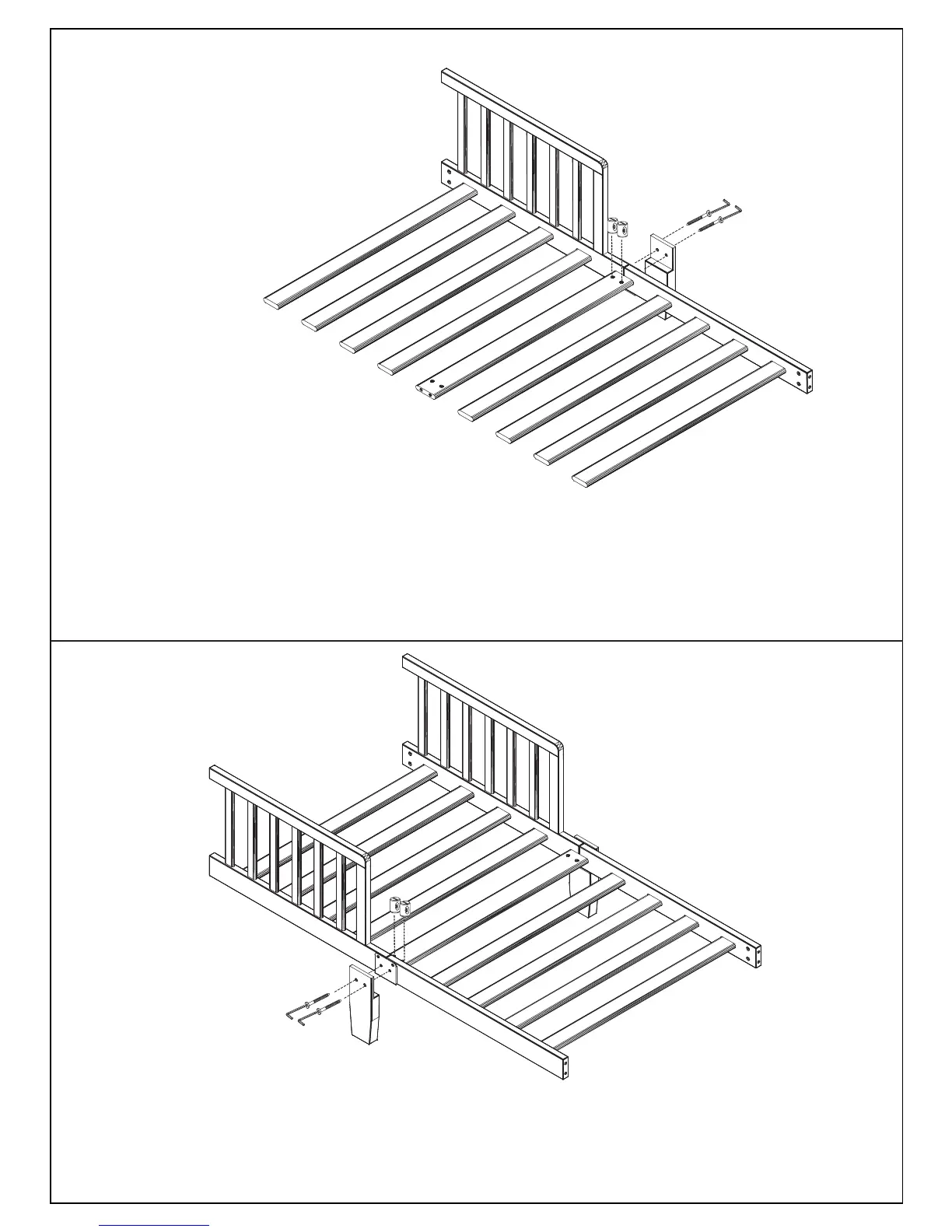

Insert the middle mattress base slat (E) and mattress base slat (F) to the
left guard rail (B) and left rail (G) , then attach the split legs (J) to the middle
mattress base slat (E) by bolts (a) and barrel nuts (c) .
Insert the middle mattress base slat (E) and mattress base slat (F) to the
right guard rail (C) and right rail (H) , then attach the split legs (J) to the
middle mattress base slat (E) by bolts (a) and barrel nuts (c) .
a
f
c
E
F
F
F
F
F
F
F
F
C
H
J
