Controller Installation
Select a location
Choose a location near power and away
from direct sunlight, if possible.
This location should also have a good
Wi-Fi signal. You can check this using a
smart phone. (Find a location that has a
minimum of two bars.)
Note: If replacing a controller, it is
helpful to take a photo of the wires
before you remove them from the old
controller.

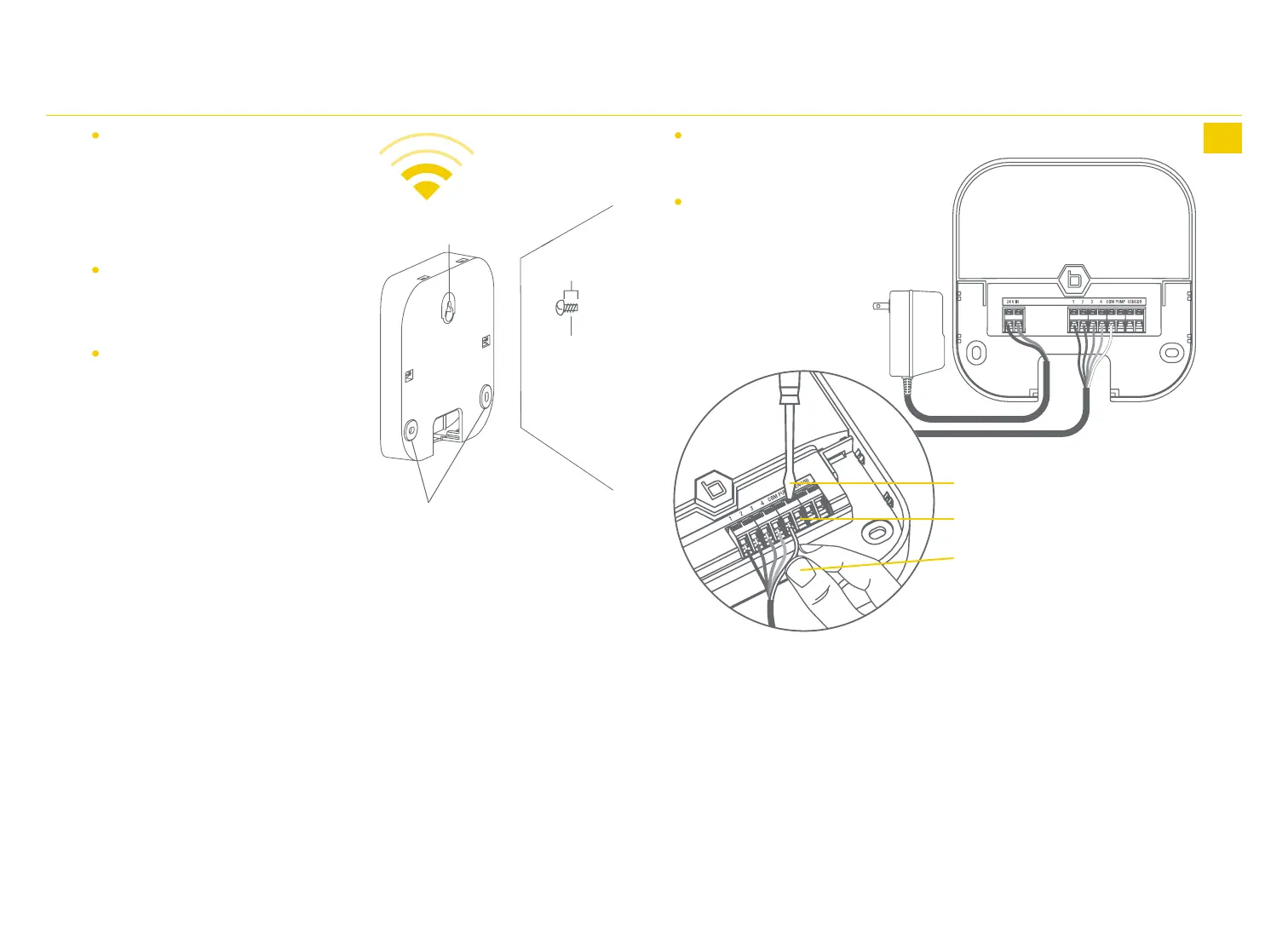

Mount the controller
Install a screw (included) into the wall.
Use the expanding anchors (included)
for plaster, masonry or drywall
installations. Hang the controller on the
installed screw using the keyhole slot.
Level the controller and use the second
screw in one of the preformed mounting
holes to secure the controller.
Minimum Signal
Keyhole
Pre-formed
Mounting Holes
mm (⁄in)
No. Screw
Wall
Connect Valve Wires
Prepare wire
Strip mm (⁄in) of insulation from each
wire.
Connect wires
Attach one wire from each valve to a
Common (COM) wire and the other wires
to a numbered terminal (only one wire per
terminal).
Loosen Screw
Strip Wire
Push In
Tighten Screw
