Orbit Max2 User Manual

2

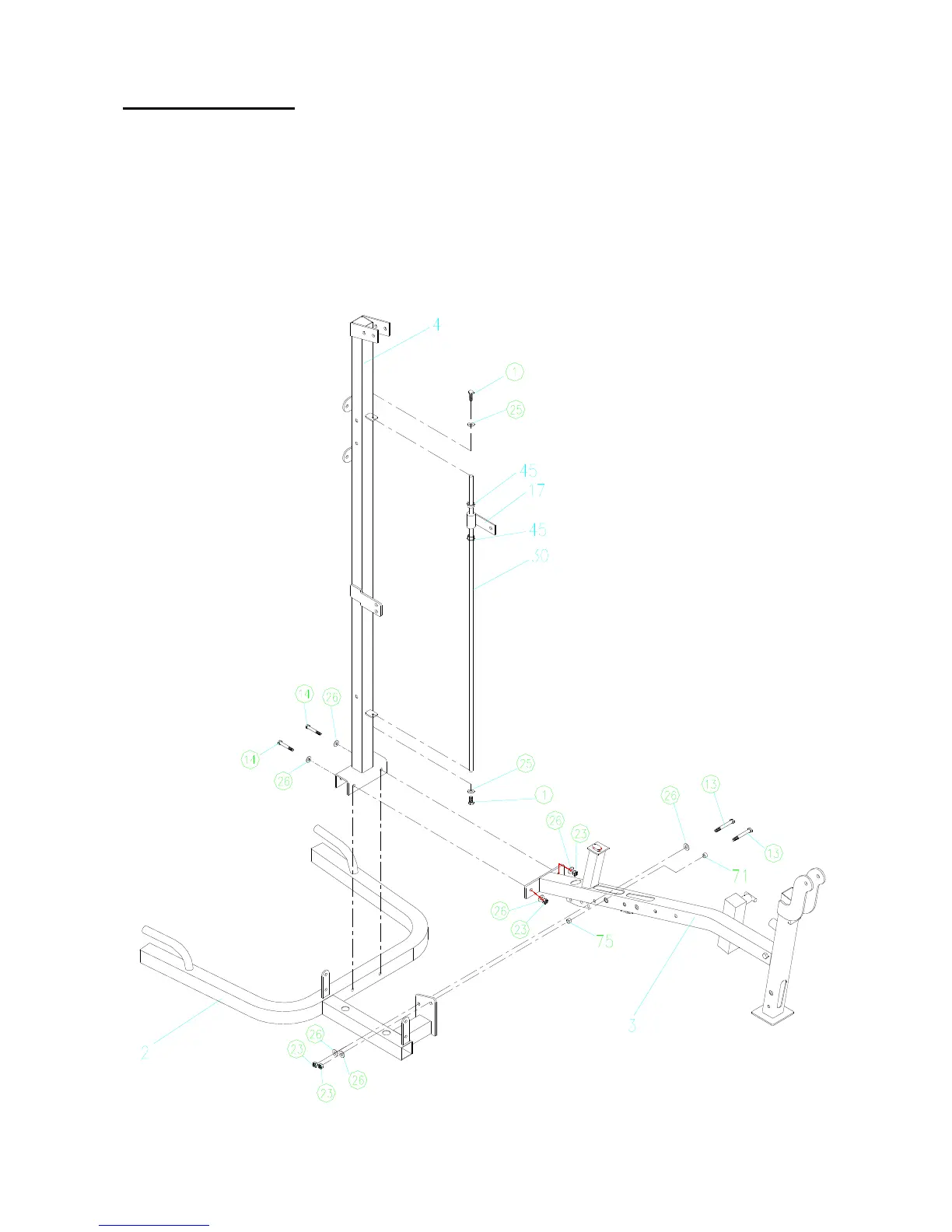

Assembling steps
1. Remove all parts out of boxes and place around area of installation! Place bolt packs in front of
the area where you want the gym.
2. Place part (2) in desired position, then connect part (3) with part (4) using bolts
(M10x75mm)(13), bolts (M10x80mm)(14), washers (26) and locknuts (23). Slide pulley limiting
board (17) through the leaderII (30), connecting to vertical tube (4) with hex bolts (M6x20mm)(1)
and washer(8) (25).
