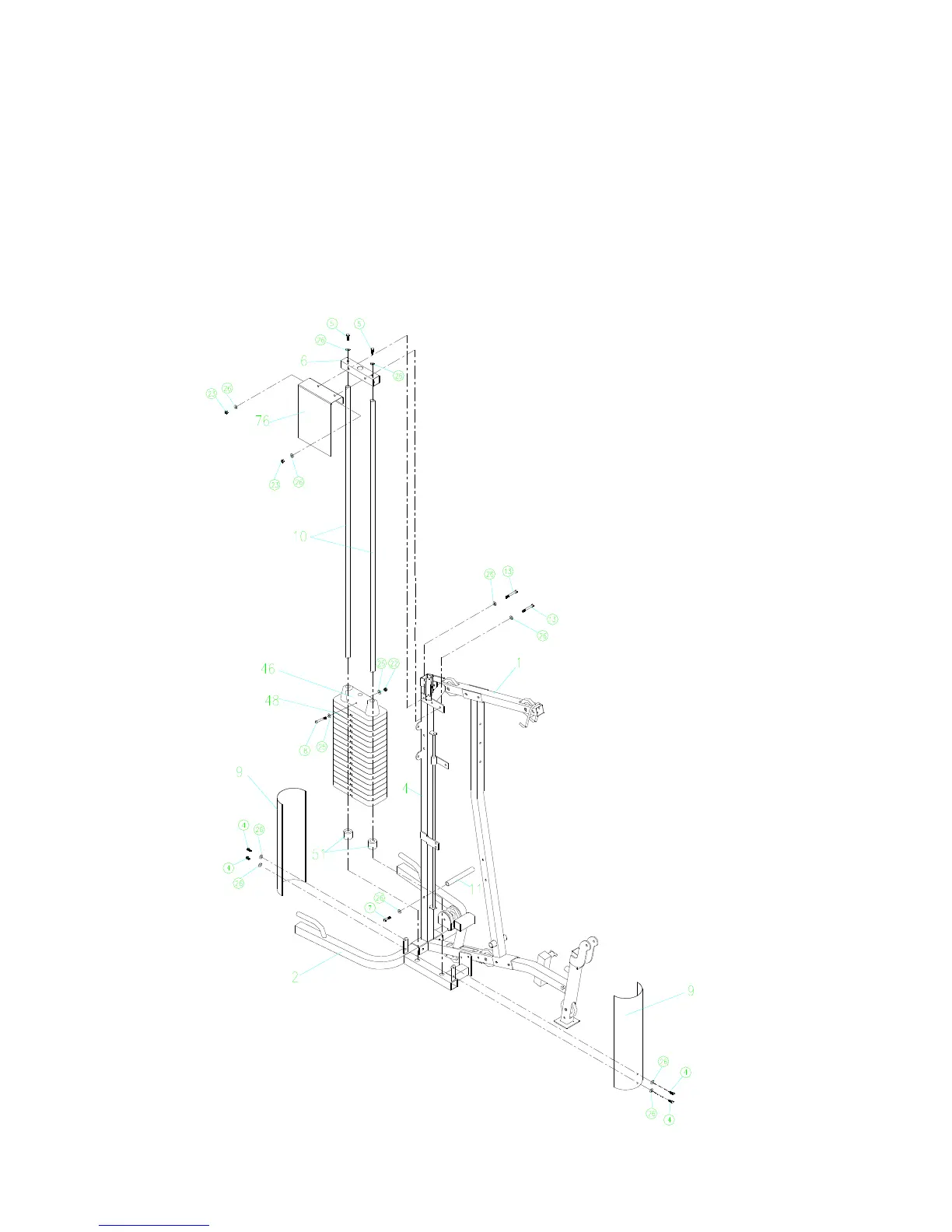

4. Insert leaders (10) into the oriented holes on the bottom of the curl base tube (2), in turn, slide
cover bumpers (51), rubber weight stack (48) and plastic top plate (46). Mount leader top tube(6)
to the leader (10) by washers (26) and bolts (M10x20mm)(5). Connect exercise chart flip (76),
leader top tube (6) and Lab pull down top tube (1) with bolts (M10x75mm)(13), washers (26)
and locknuts (23).
Attach shrouds (9) to the curl base tube (2) with washers (26) and bolts (M10x16mm)(4). Attach
handlebar tube (11) to the vertical tube (4) with washer (26) and bolt (M10x30mm)(7).
Attach plastic briquetting(46) to the leader(22) with bolt(M8x70mm)(8),washers(8)(25) and
locknut(M8)(22).
