4

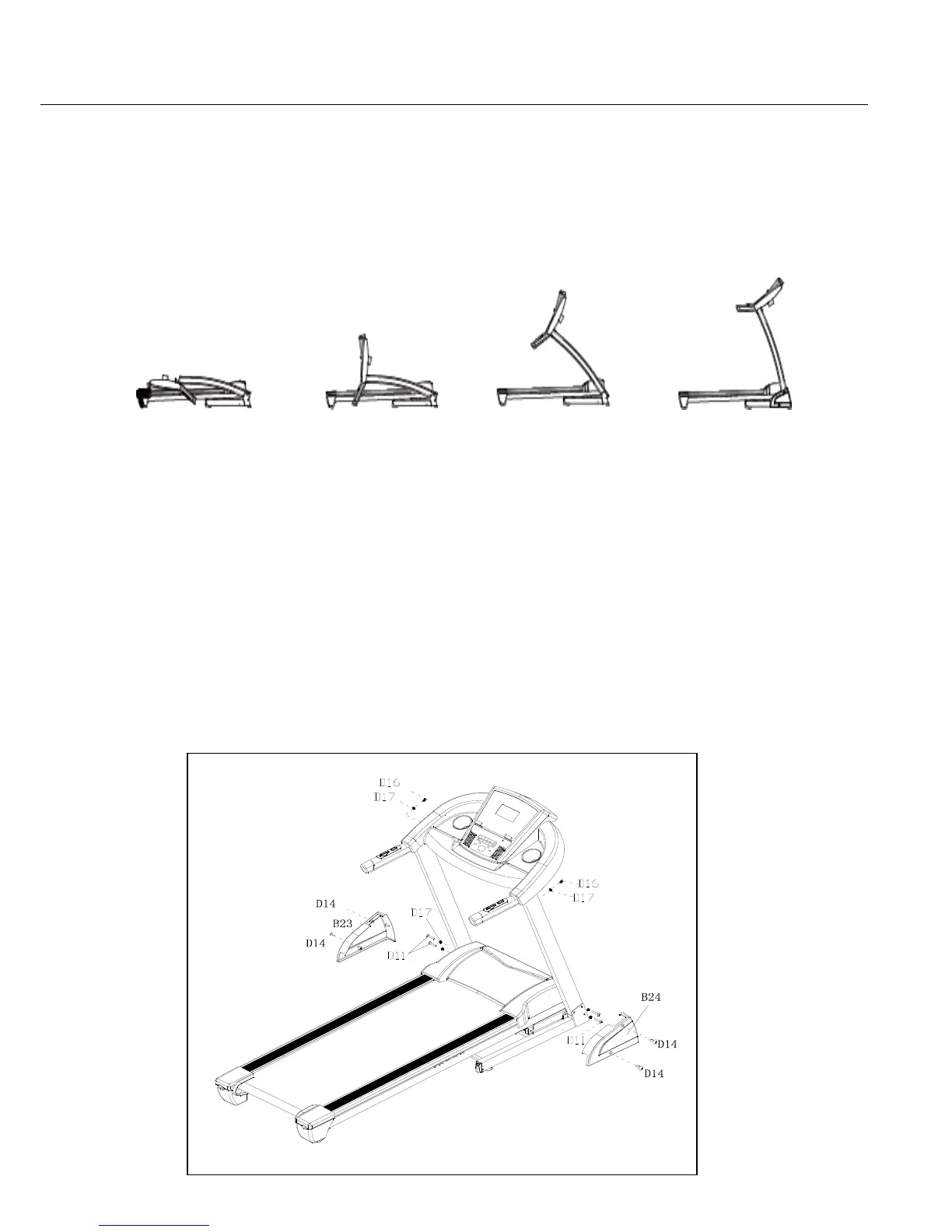

STEP 1：According to the following steps to lift up the computer bracket. Be careful not
press the line when folding
STEP 2：Secure bottom frame with bolt M8*45（D11）and the inner washer (D17),then secure the
console onto the upright tube with bolt M8*15(D16) and inner washer（D17）.Attach the side
cover
(B23&B24) with bolt (D26)ST4.2*19.
