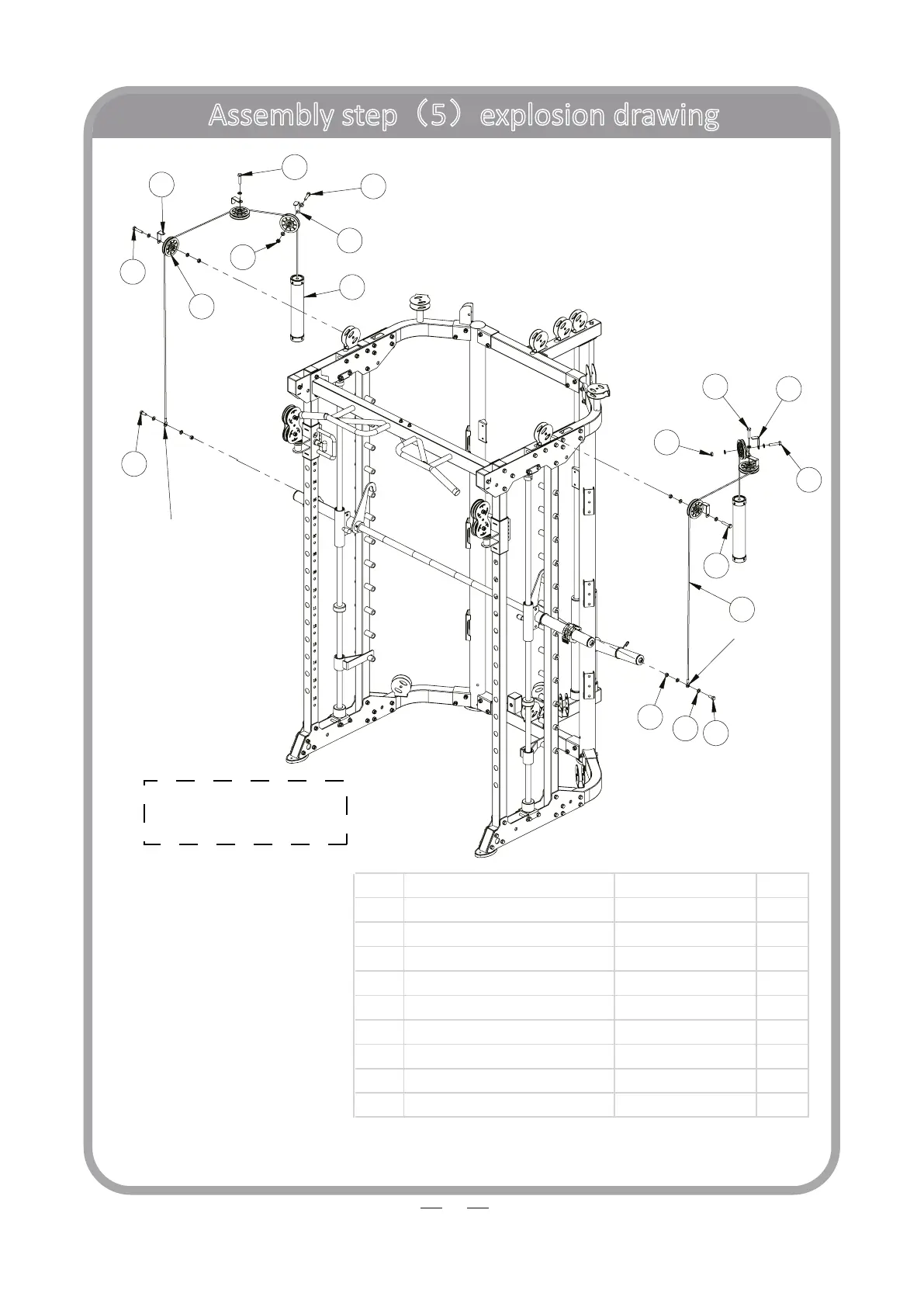

Orbit X304 - Assembly Step 5; Assembly Step 5: Explosion Drawing

Assembly step（5）explosion drawing
15
Wire port
outside of
sliding sleeve
56
49
11
10
59
60
49
60
57
58
60
58
10
59
10
60
61
58
Hand ghten first.
Do not over ghten
No. Descripon Note Qty.
10 lock nut M10 6
11 washer Φ10 14
49 hexagon bolt M10*25 2
56 wire Φ5*2745mm 2
57 pulley Φ95 6
58 pulley plate 4
59 hexagon bolt M10*45 2
60 hexagon bolt M10*50 4
61 weight 2
