Orbit X304 - Assembly Step 6; Assembly Step 6: Explosion Drawing

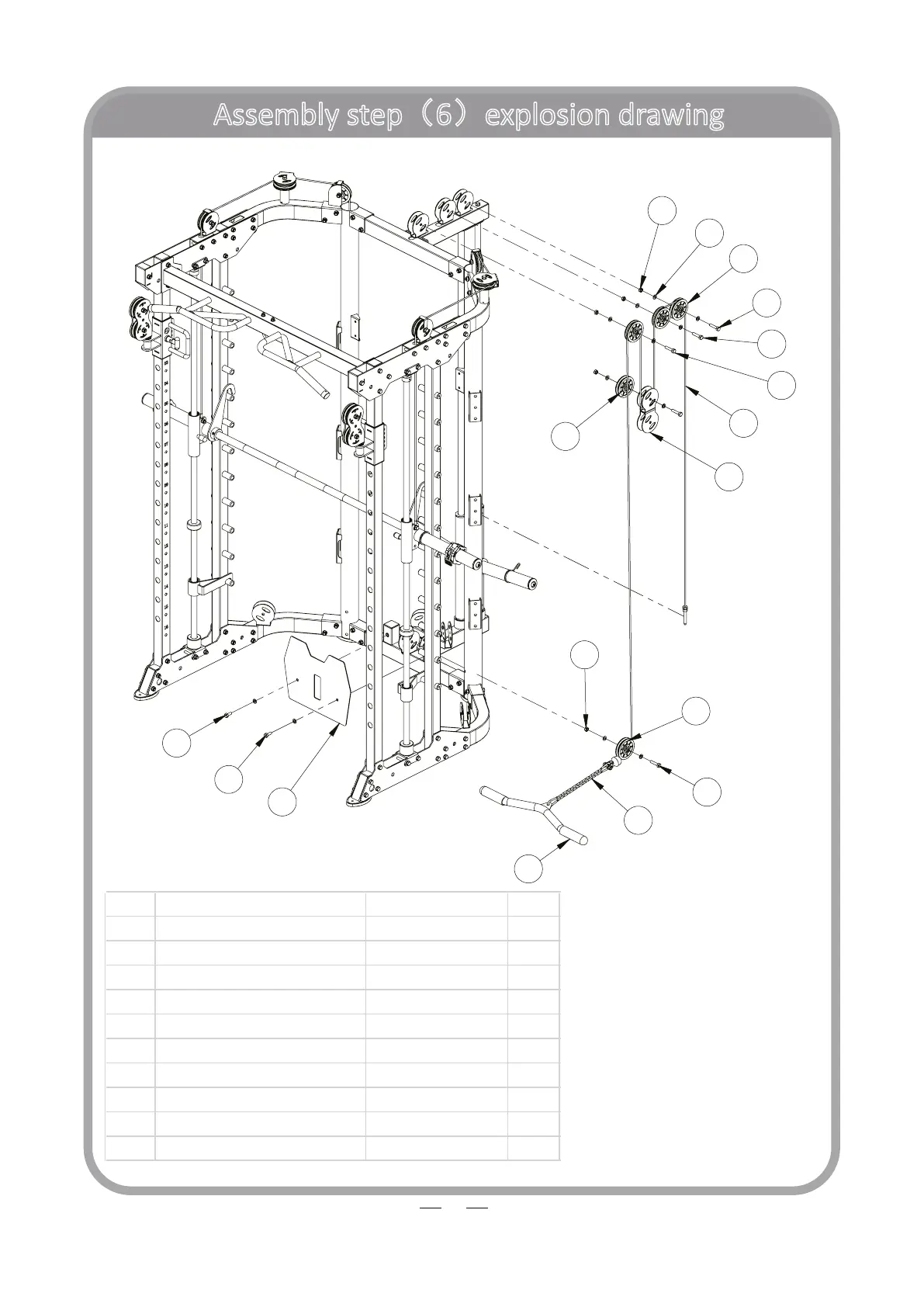

Assembly step（6）explosion drawing
17
10
11
57
59
62
63
65
64
49
66
59
10
59
59
57
57
49
No. Descripon Note Qty.
10 lock nut M10 5
11 washer Φ10 12
49 hexagon bolt M10*25 2
57 pulley Φ95 5
59 hexagon bolt M10*45 5
62 wire 4740mm 1
63 "-" shaped pulley frame 1
64 short bar 1
65 footplate 1
66 chain + 2 snap hook 1
