Orbit X304 - Assembly Step 11: Assembly Instructions

28

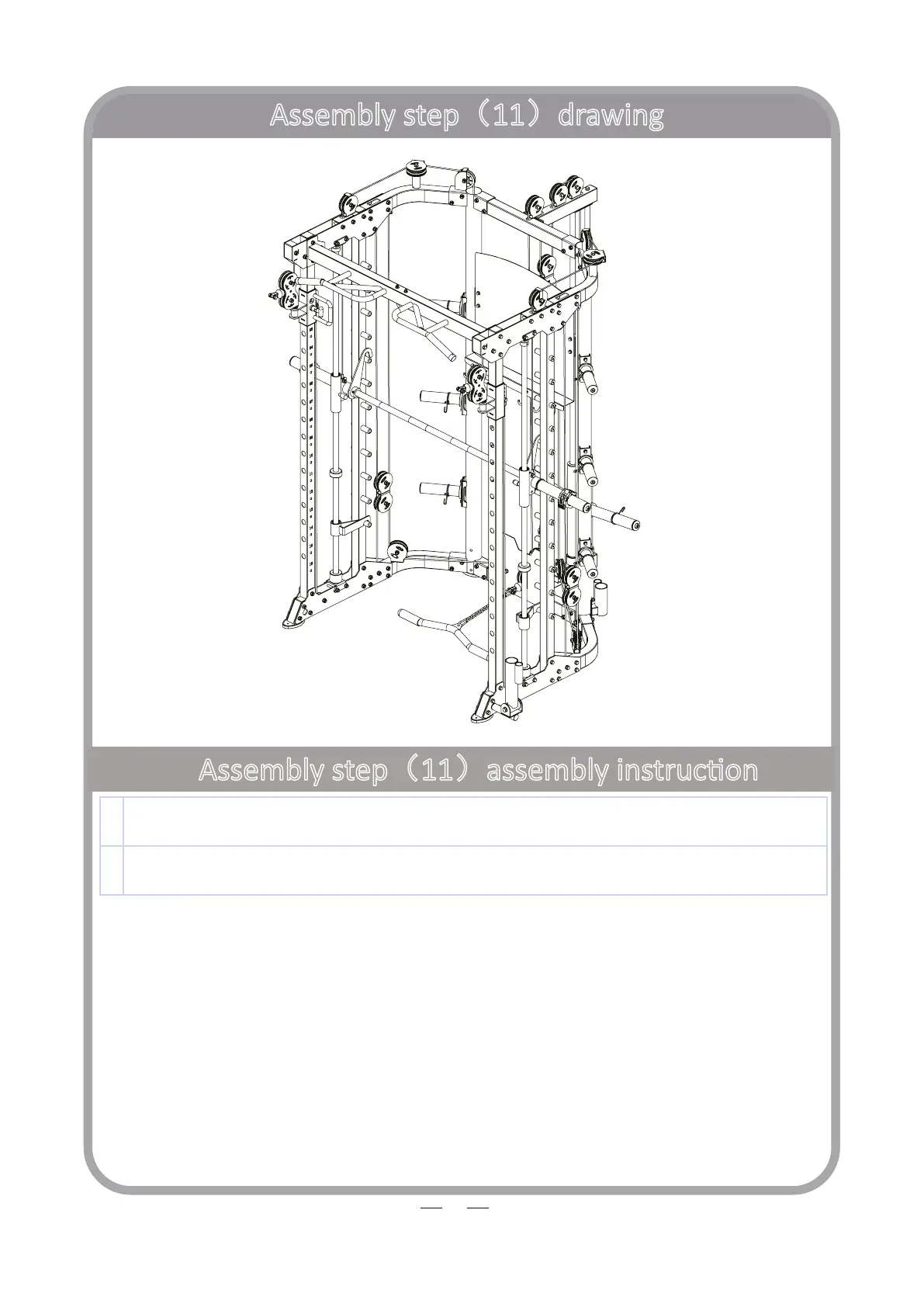

Assembly step（11）drawing
Assembly step（11）assembly instrucon
1
Fix core trainer-79 fastening on main frame using M10x25 hexagon bolt-49, Φ10 big
washer-82 and powder metallurgy sleeve-80
2
Fix barbell rod cup-81 fastening on upright frame using M10x95 hexagon bolt-50, Φ10
washer-11 and M10 lock nut-10
