Orcon 15RF - Technical Data; User Interface Explanation; Remote Control Indications

Technical data
Power supply 3 V battery
Dimensions 83 x 80 x 28 mm
Weight 125 g
RF frequency 868.3 MHz
Min/Max Ambient temperature 0-40 °C
RH level 0-90 % non-condensing
Protection class IP30
List of 15RF remote control indications
Indication Notication on remote control
Device OK, message followed
Device OK, timer activated 15 min.
Device OK, timer activated 30 min.
Device OK, timer activated 60 min.
RF communication problem
Understood, but problem in device
Learning mode is being initiated
Successful connection with device
Low battery
Remote control reset carried out
15RF Remote control user interface explanation
Button Control Function
1x short Absence mode
1 1x short Position 1 (low position)
2 1x short Position 2 (medium position)
3 1x short Position 3 (high position)
1x short Position 3 (timer mode) temporary 15 minutes
2x short Position 3 (timer mode) temporary 30 minutes
3x short Position 3 (timer mode) temporary 60 minutes
auto 1x short Automatic mode
When a button is pressed on the remote control, the LED turns green, after which it
ashes to conrm. The following indications are possible:

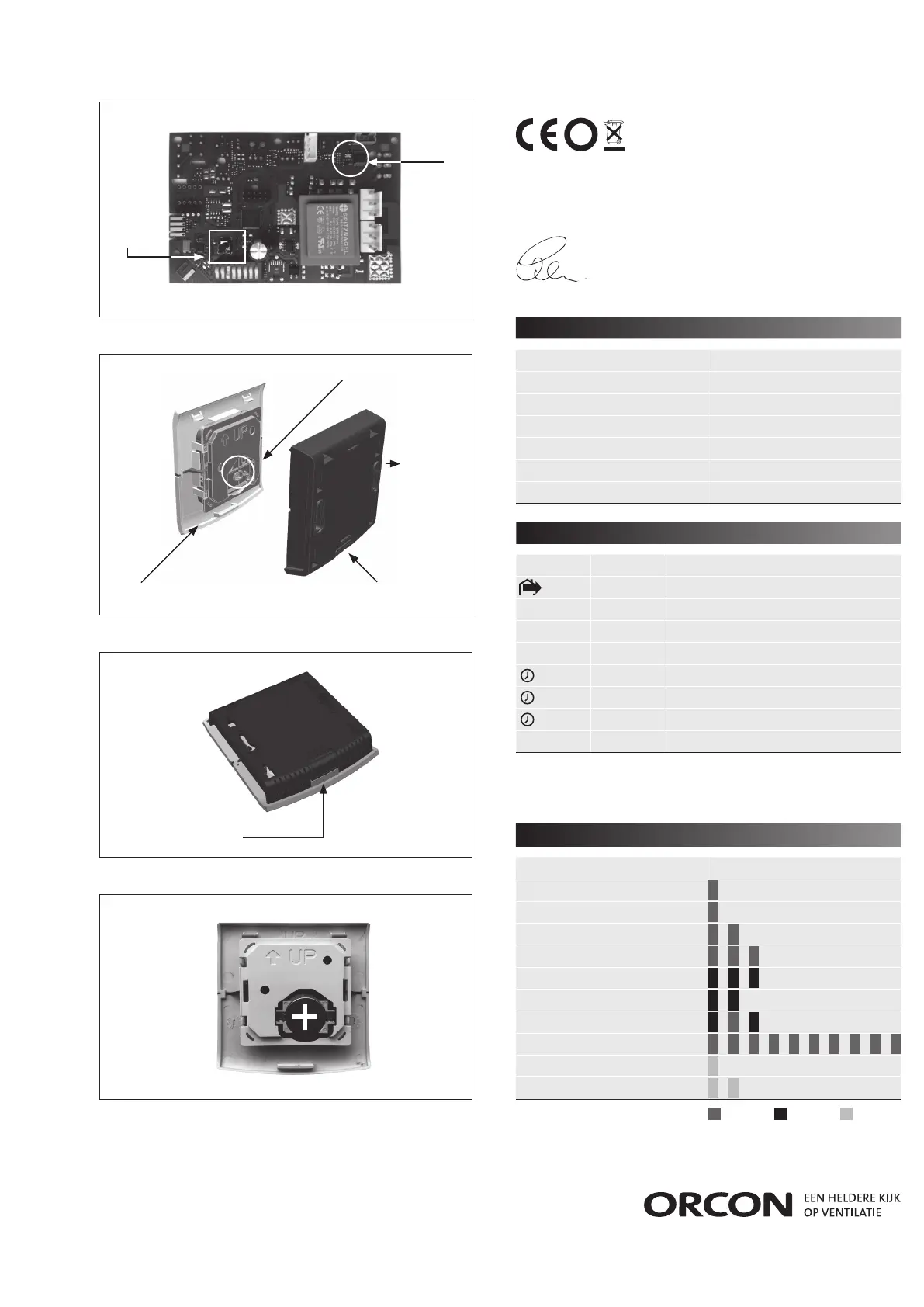

Fig. 1 - Receiver PCB in the device
Fig. 3 - Back of remote control
Fig. 4 - Battery in remote control
Fig. 2 - Exploded view remote control
Upper part
Push button to open control
Battery position
Wall frame
= Green = Red = Orange
Declaration of conformity
Orcon BV declares that this remote control conforms with the
Machinery Directive (2006/42/EC), the Low Voltage Directive
(2006/95/EC), the EMC Directive (2004/108/EC), the RoHS
Directive (2002/95/EC) and the R&TTE Directive (1999/5/EC).
Veenendaal, NL
M. Voorhoeve, General Manager
!
Push button
Red/green LED
