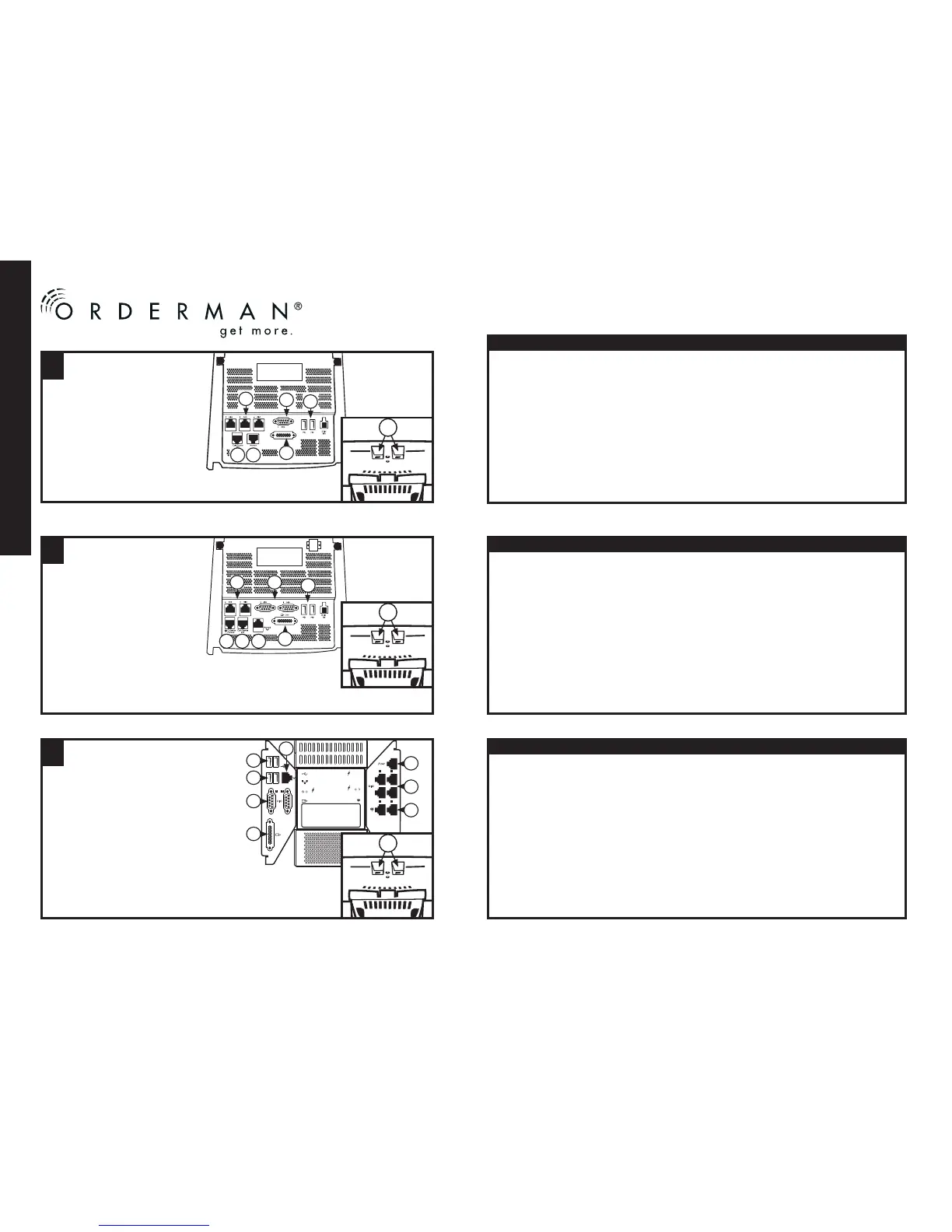

QUICK INSTALLATION GUIDE
for Installation of Columbus 300, 500 and 700R
ENGLISH
COLUMBUS 300
1| 3x Serial RJ-45 (12V)
2| 1x Serial DB9 (5V/12V)
3| 2x USB 2.0 (5V)
4| 1x Cash Drawer (24V)
5| 1x Ethernet
6| 1x DVI Video
7| 2x USB 2.0 (12V)
COLUMBUS 700R
1| 2x USB 2.0 (5V)
2| 2x USB 2.0 (5V)
3| 2x Serial DB9 (5V/12V)
4| 1x DVI Video
5| 1x Ethernet
6| 1x Cash Drawer (24V)
7| 4x Serial RJ-45 (12V)
8| 1x Router light (12V)
9| 2x USB 2.0 (5V)
COLUMBUS 500
1| 2x Serial RJ-45 (12V)
2| 2x Serial DB9 (5V/12V)
3| 2x USB 2.0 (5V)
4| 1x USB 2.0 (12V)
5| 1x Orderman Netw.(12V)
6| 1x Cash Drawer (24V)
7| 1x Ethernet
8| 1x DVI Video
9| 2x USB 2.0 (5V)
Pin # DB9 Signal Name Pin # RJ45 Signal Name
1 DCD – 2 DCD
2 RXD – 5 RXD
3 TXD – 6 TXD
4 DTR – 3 DTR
5 GND _ 4 GND
6 DSR _ NC DSR
7 RTS _ 8 RTS
8 CTS _ 7 CTS
9 RI _ 1 RI
Pin # DB25 Signal Name Pin # RJ45 Signal Name
NC DCD – 2 DCD
2 RXD – 5 RXD
3 TXD – 6 TXD
NC DTR – 3 DTR
7 GND _ 4 GND
NC DSR _ NC DSR
5 RTS _ 8 RTS
4 CTS _ 7 CTS
NC RI _ 1 RI
Pin # RJ45 Signal Name Pin # RJ12 Signal Name
NC RI – NC –
NC DCD – NC –
NC DTR – NC –
4 GND – 2 GND
5 RXD _ 5 TXD
6 TXD _ 4 RXD
NC CTS _ NC –
NC RTS/12V _ NC –
