21
Step 5 : Set the other fiber in the same way. Put the shield
down carefully.
Note:
Note:
Note:
Note:
a) Set the other fiber in the same way. Put the shield down
carefully.

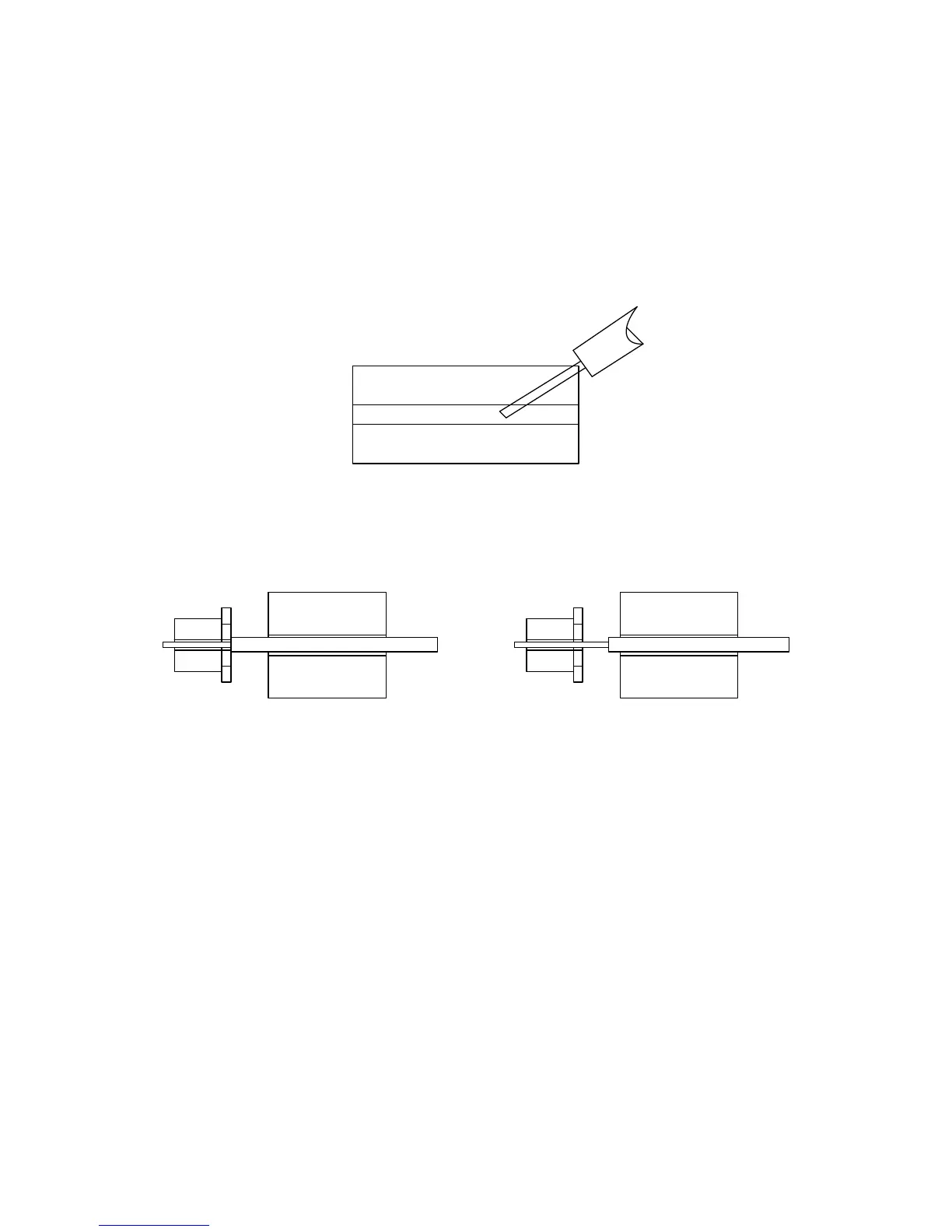

Figure 7-7
Wrong way to install
b) The tip of the coating fiber should keep a distance from the
bare fiber mount.
Right Method
Wrong
Method
Figure 7-8
c ) To be sure the coating fiber was pressed tightly by the hold
clamp . The shield was closed, the fiber should be pressed
on the V-groove by the shield.
7.5
7.5
7.5
7.5 Arc
Arc
Arc
Arc Power
Power
Power
Power
Test
Test
Test
Test
Arc Power Test is very important for obtaining low splice loss.
So before splicing, the test should be done. See the details in
the appendix A.
Fiber
