Origin Effects REVIVAL DRIVE User Manual

REVIVALDRIVE CUSTOM ONLY
Setting the RE-AMP EQ switch to EQ2 enables the following optional
front-panel controls:
• MODE - choose position I if the pedal sounds too dark or position
II if it sounds too bright.
• ADJ - increase to reduce treble and boost bass. Decrease to boost
treble and reduce bass.
• FREQ - Fine tune the effect of the ADJ control by raising or
lowering the centre frequency.
1. GET CONNECTED
INSTR - Plug in your guitar or other instrument.
AMP - Connect to your amp, power amp, mixer or recording interface.
9VDC - Insert 9VDC 2.1mm centre-negative power supply
(minimum 120mA).
2. MATCH THE CONTROLS

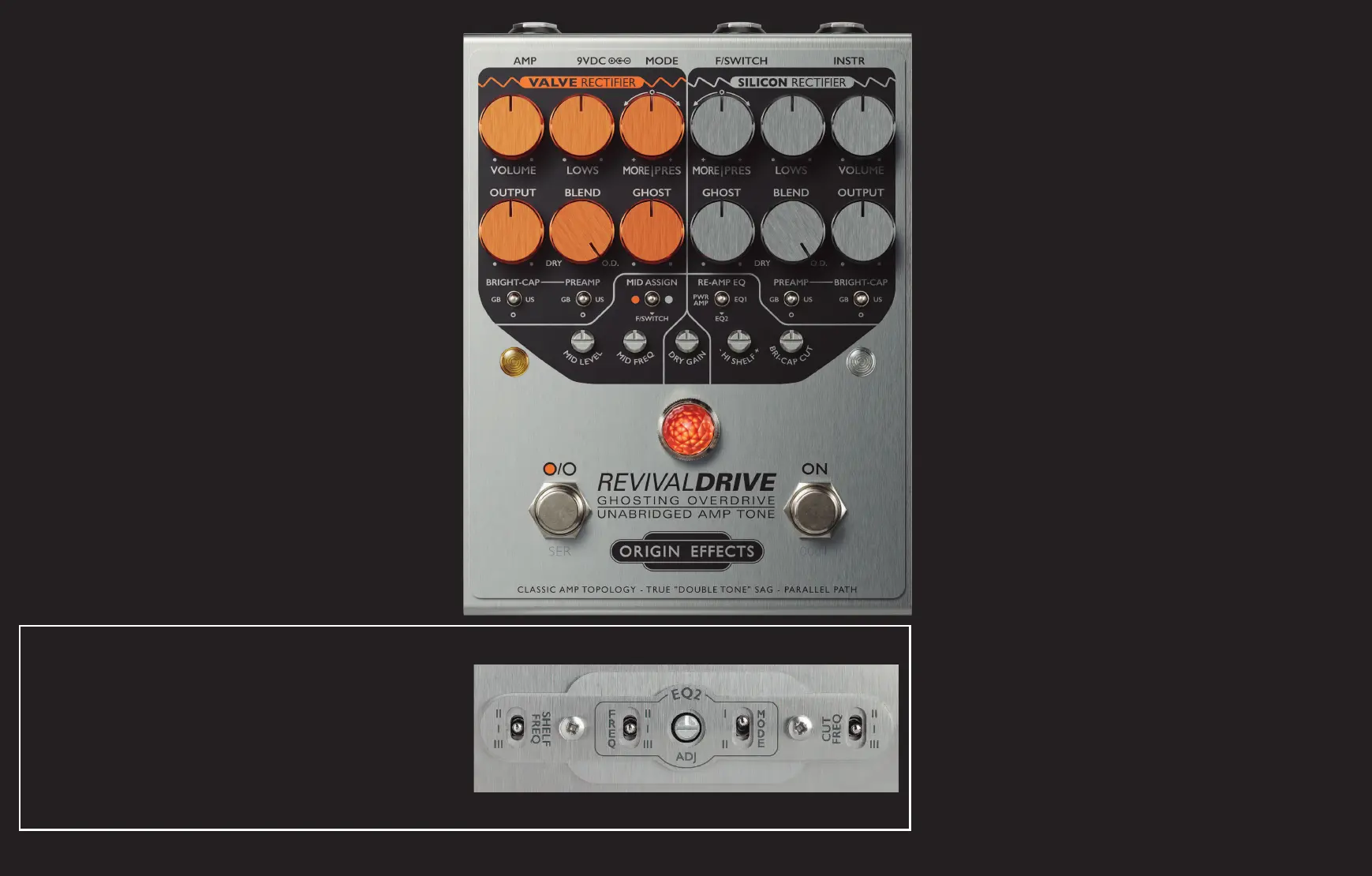

Match the RevivalDRIVE controls to the image.
3. SET THE RE-AMP EQ
Set the RE-AMP EQ controls to suit your application.
Power amp, recording interface or FX return:
• Set the RE-AMP EQ switch to PWR AMP.
• Remember to use a cabinet simulator if playing through a full-range
speaker system such as a PA or studio monitors.
Guitar amp or amp modeller:
• Set the RE-AMP EQ switch to EQ1 for brighter sounding amps
or EQ2 for darker sounding amps.
• If plugging into an amp’s bright channel, increase the BRI-CAP
CUTGSRXVSPXS½PXIVSYXER]LEVWLRIWWSV½^^
• Adjust the HI SHELF control to boost or cut highs for a balanced
tone.
4. CHOOSE YOUR CHANNEL
'LSSWIXSIQTPS]ELEVHWMPMGSRSVWTSRK]ZEPZIWX]PIVIGXM½IVWXEKIF]
toggling the channel footswitch.
5. SET YOUR LEVEL
OUTPUT - Sets the pedal’s overall output level without changing the
tone or drive characteristics.
6. SHAPE YOUR VOICE
PREAMP - Select between three distinct preamp voices:
O - Warm and balanced.
GB - Rich midrange, tight bass.
US - Shimmering highs, controlled mids and lows.
LOWS - Adjust low-frequency overdrive:
• Turn up for a thick, distorted low-end.
• Turn down for a tighter, controlled drive.
7. DIAL IN YOUR OVERDRIVE
VOLUME - Turn up and go from clean to natural overdrive, much like
turning up a classic non-master-volume amp.
8. REFINE YOUR TONE
BRIGHT-CAP - Drive high frequencies in the US position or let mids
and highs drive when set to GB.
MORE|PRES - Dial in the break-up characteristics of the power stage
distortion:
• At the centre position, the tone is balanced with lots of clean
headroom.
• Turning the control anti-clockwise results in an earlier onset of
distortion and a smoother transition from clean to break-up.
• Turning the control clockwise increases the high frequency drive
JSVEHHIHFMXIERHWM^^PI
GHOST - Turn up to introduce the “double tones” found in vintage
amps. Ghosting is more pronounced when playing upper register notes
with higher VOLUME levels.
3S^MRK[MXLGLEVEGXIV*IRHIV
MWEVIKMWXIVIHXVEHIQEVOSJ1EVWLEPP%QTPM½GEXMSR4PG
MWEVIKMWXIVIHXVEHIQEVOSJ:S\%QTPM½GEXMSR0MQMXIH
EVIVIKMWXIVIHXVEHIQEVOWSJ*IRHIV1YWMGEP-RWXVYQIRXW
'SVTSVEXMSR3VMKMR)JJIGXWLEWRSEJ½PMEXMSR[MXL*IRHIV1YWMGEP-RWXVYQIRXW'SVTSVEXMSR
1EVWLEPP%QTPM½GEXMSR4PGSV:S\%QTPM½GEXMSR0MQMXIH

Origin Effects REVIVAL DRIVE Specifications

General

Type	Overdrive
Bypass	True Bypass
Technology	Analog
Controls	Blend, Ghost, Highs, More/Pres, Output
Power Source	9V DC
Inputs	1/4" Jack
Outputs	1/4" Jack
