Orion Welders mPulse User Manual

Orion Welders - mPulse

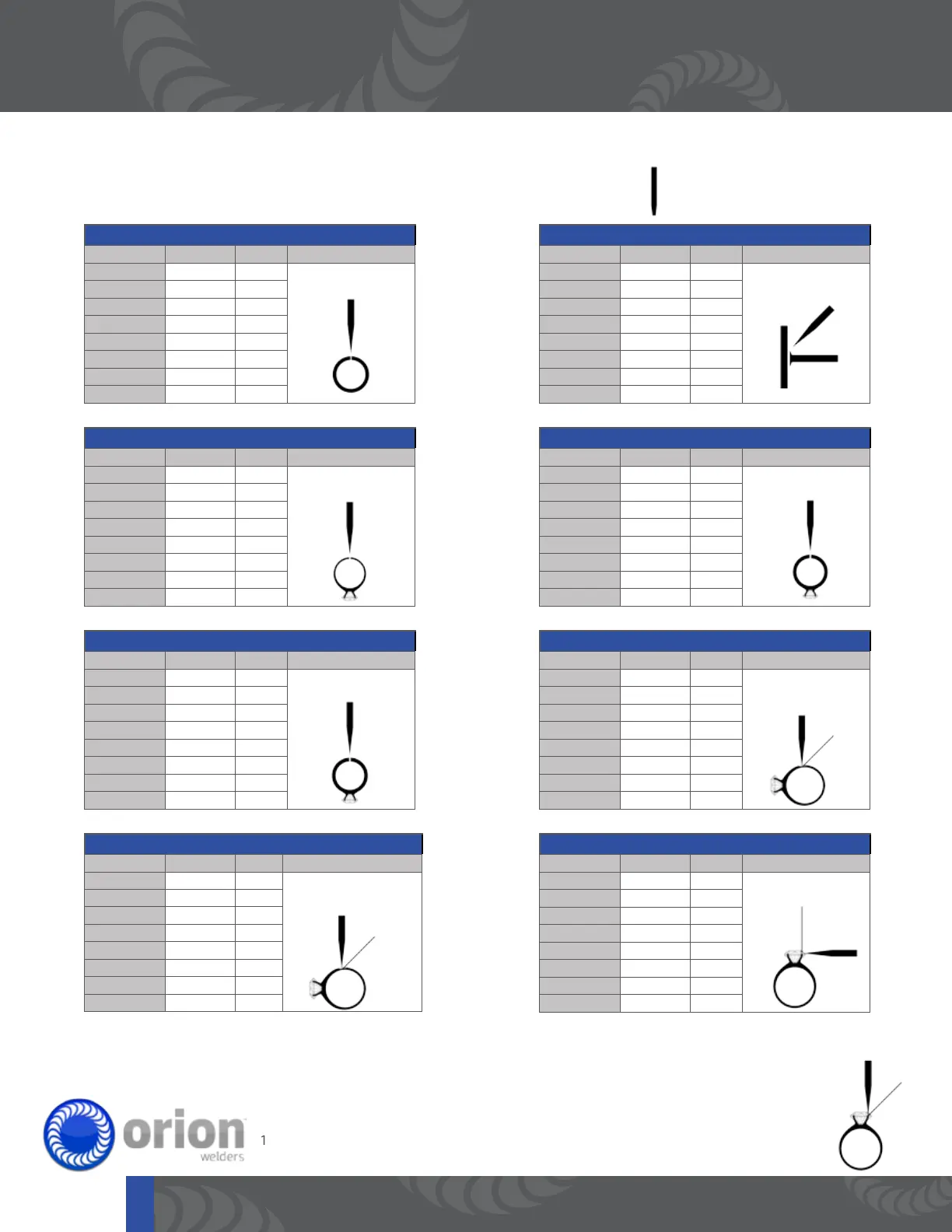

General Settings for specific metals and applications Specifications
OrionWelders.com
Orion Welders
1-877-786-9353
1693 American Way #5
Payson, UT 84651 USA
General Settings - 26 AWG wire/chain/jump ring
Metal Tip Shape Energy Notes
14k Gold Sharp 10 ws
Butt weld with 90 degree
electrode angle
24k Gold Sharp 7.5 ws
Silver Sharp 10 ws
Platinum Sharp 10 ws
Stainless Steel Sharp 7.5 ws
Palladium Sharp 7.5 ws
Titanium Sharp 10 ws
Brass Sharp 10 ws
General Settings - 0.5mm thick Ring
Metal Tip Shape Energy Notes
14k Gold Sharp 12.5 ws
Butt weld with 90 degree
electrode angle
24k Gold Sharp 10 ws
Silver Sharp 17.5 ws
Platinum Sharp 15 ws
Stainless Steel Sharp 15 ws
Palladium Sharp 15 ws
Titanium Sharp 15 ws
Brass Sharp 15 ws
General Settings - 1mm thick Ring
Metal Tip Shape Energy Notes
14k Gold Sharp 22.5 ws
Butt weld with 90 degree
electrode angle
24k Gold Sharp 20 ws
Silver Semi Blunt 30 ws
Platinum Sharp 25 ws
Stainless Steel Sharp 22.5 ws
Palladium Sharp 20 ws
Titanium Sharp 25 ws
Brass Sharp 25 ws
General Settings - 2mm thick Ring
Metal Tip Shape Energy Notes
14k Gold Sharp 30 ws
Butt weld with 90 degree
electrode angle
24k Gold Sharp 30 ws
Silver Blunt 30 ws
Platinum Sharp 30 ws
Stainless Steel Sharp 30 ws
Palladium Sharp 30 ws
Titanium Sharp 30 ws
Brass Sharp 30 ws
General Settings - Earring Post
Metal Tip Shape Energy Notes
14k Gold Sharp 10 ws
T joint with 45 degree
electrode angle
24k Gold Sharp 10 ws
Silver Sharp 12.5 ws
Platinum Sharp 12.5 ws
Stainless Steel Sharp 7.5 ws
Palladium Sharp 7.5 ws
Titanium Sharp 12.5 ws
Brass Sharp 10 ws
General Settings - Add Material (30 AWG laser wire)
Metal Tip Shape Energy Notes
14k Gold Sharp 12.5 ws
Wire at 45 degree angle.
Electrode touching work
piece next to wire.
24k Gold Sharp 12.5 ws
Silver Sharp 15 ws
Platinum Sharp 15 ws
Stainless Steel Sharp 10 ws
Palladium Sharp 10 ws
Titanium Sharp 15 ws
Brass Sharp 12.5 ws
General Settings - Add Material (24 AWG wire)
Metal Tip Shape Energy Notes
14k Gold Sharp 17.5 ws
Wire at 45 degree angle.
Electrode touching work
piece next to wire.
24k Gold Sharp 15 ws
Silver Sharp 20 ws
Platinum Sharp 20 ws
Stainless Steel Sharp 15 ws
Palladium Sharp 15 ws
Titanium Sharp 20 ws
Brass Sharp 17.5 ws
General Settings - Retip Prong (26 AWG wire)
Metal Tip Shape Energy Notes
14k Gold Sharp 10 ws
Butt weld with 90 degree
electrode angle
24k Gold Sharp 7.5 ws
Silver Sharp 10 ws
Platinum Sharp 10 ws
Stainless Steel Sharp 7.5 ws
Palladium Sharp 7.5 ws
Titanium Sharp 10 ws
Brass Sharp 10 ws
Remember:
1. When in doubt, start with your energy lower then work your way up.
2. The image to the right is an example of what a blunt electrode should look like:
The above method will allow the user to attach the wire to the
prong tip. If the user desires to add metal to the tip without
the wire staying attched, use a 30 AWG wire and position the
electrode and 30 AWG wire as seen in the picture to the right.
This method will allow the user to add a little bit of metal at a
time, covering the top of the prong with every weld.
Wire at 45 degree angle.
Electrode touching work
piece next to wire.

Orion Welders mPulse Specifications

General

Brand	Orion Welders
Model	mPulse
Category	Welding System
Language	English
